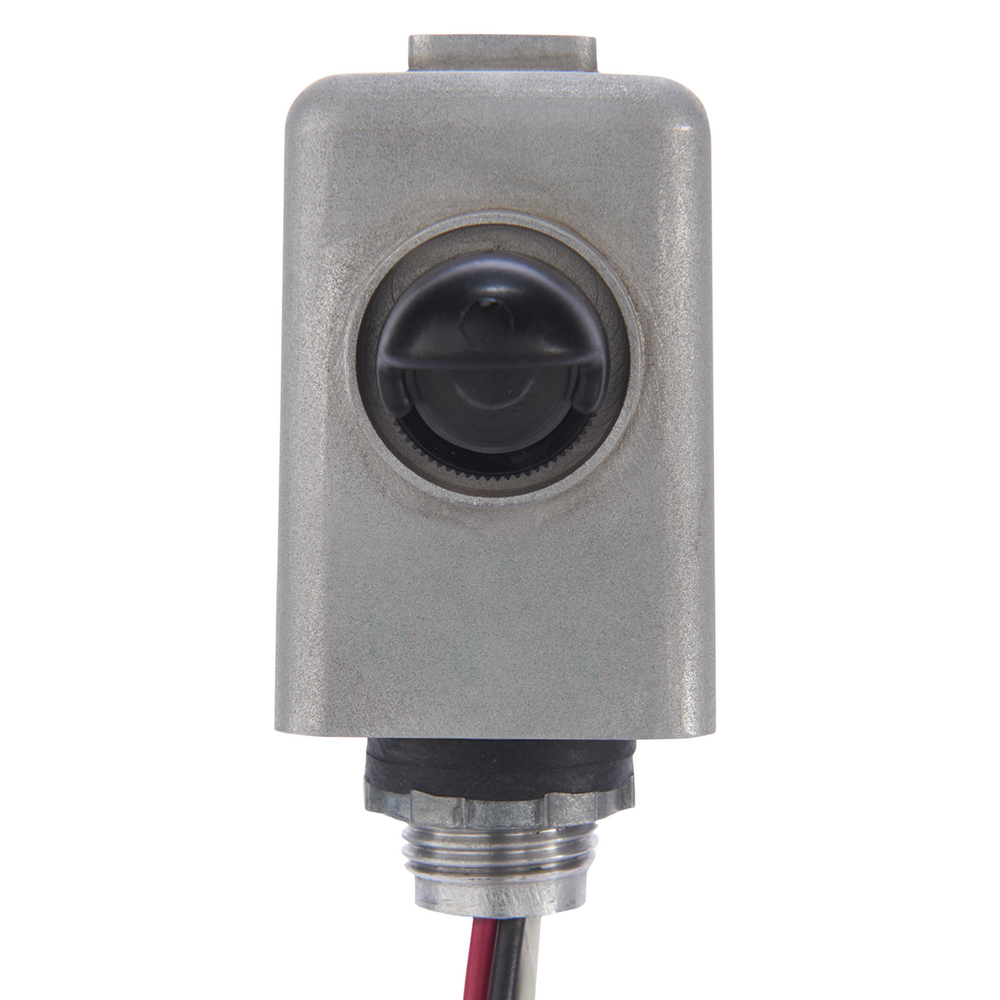

Intermatic K4421M, Metal Stem Mount Thermal Photocontrol, 120V
Regular price
$32.54
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
These photocontrols install on standard outdoor light fixtures and electrical boxes with 1⁄2"-14 NPSM thread or 7⁄8" knock-out holes for dusk-to-dawn ON/OFF control of outdoor lighting.
- Mechanical bimetal switch with Cadmium Sulfide photocell.
- Delay feature prevents unwanted OFF switching.
- Die-cast metal housing.
- 1⁄2"-14 NPSM threaded stem.
- Washer gasket and locking nut included.
-
#18 AWG, 9" wire leads.
| Model Number | K4421M |
| Description | Metal Stem Mount Thermal Photocontrol, 120 V |
| Color | Gray |
| Sensor Time Delay | 30 sec to 90 sec |
| Photocell Type | Cadmium Sulfide |
| Photo Control Switch Type | Mechanical Bimetal |
| Fail Mode | ON |
| Photocontrol Type | Thermal |
| Application Compatibilities | HID; Fluorescent; Incandescent |
| Photocontrol Style | Stem Mount |
| Photocontrol Sensor Location | Side |
| Housing Material | Die-Cast Zinc |
| Incandescent Load Ratings Ranges | 15 A |
| Tungsten Range(s) | 15 A, 1800 W |
| Magnetic Ballast (NO) Range(s) | 8.3 A, 1000 VA |
| Wiring Option | Wire leads |
| Input Voltage Range(s) | 120 VAC, 50/60 Hz |
| Switch Type | SPST |
| Hz | 50/60 |
| Temperature (operation) | -40 °F to 158 °F / (-40 °C to 70 °C) |
| Usage Environments | Outdoor |
| UL Certification | cULus |
| CSA Certification | cCSAus |
| RoHS Certification | N/A |
| Warranty Period | 2-Year limited |
