Home » Intermatic KM2ST-1G, 24-Hour Heavy-Duty Mechanical In-Wall Timer, Timer Only, 120 VAC, 20A, 1 Gang, SPST, White
Intermatic

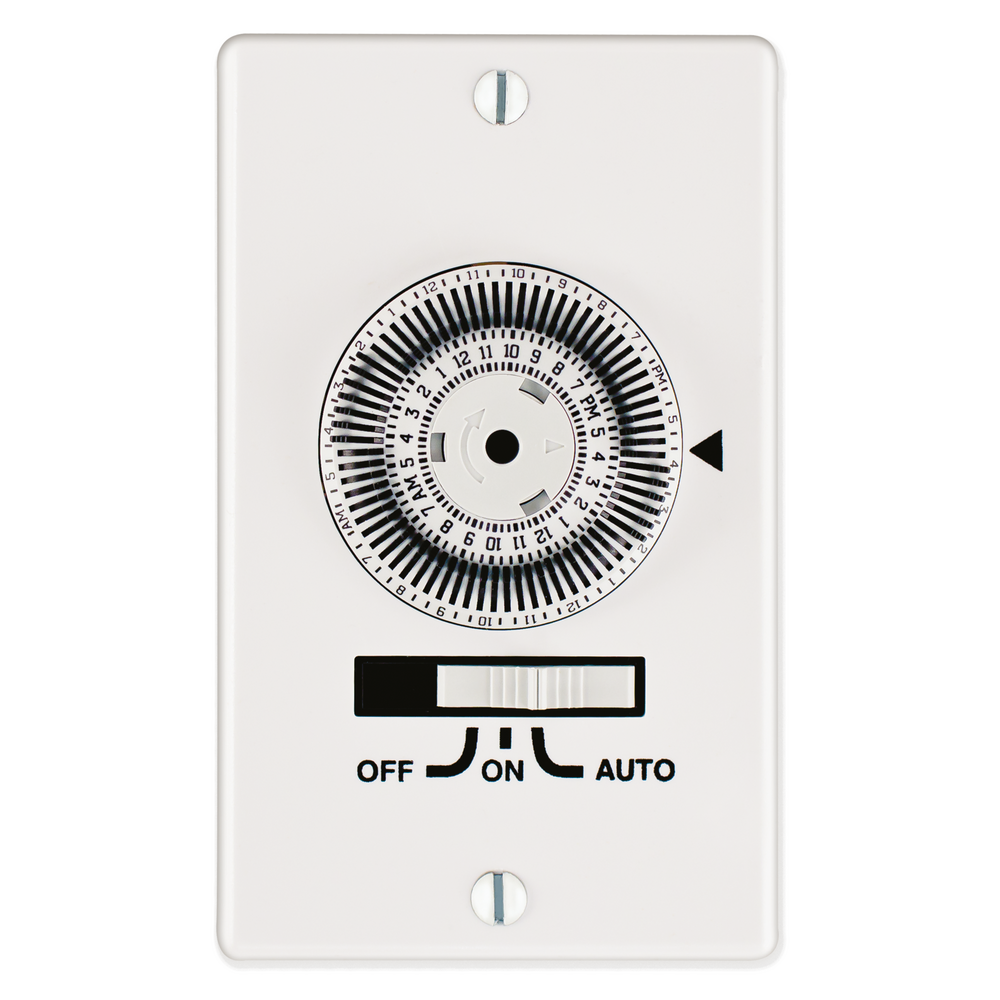

Intermatic KM2ST-1G, 24-Hour Heavy-Duty Mechanical In-Wall Timer, Timer Only, 120 VAC, 20A, 1 Gang, SPST, White

In stock
SKU: KM2ST-1G
$72.00
Voltage Range
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.

Use this text to encourage communication or promote sharing on social networks.

You can also add links

For installing on circuits up to 20 A, this timer provides automatic 24-hour ON/OFF control of outdoor/indoor lighting, fans, pumps, office equipment and other types of loads.

  • 72 trippers provide 36 ON/OFF events per 24-hour period.
  • Captive trippers with 20-minute switching intervals.
  • 3-way (SPDT) switch available.
  • 3-position ON/OFF/AUTO override provides continuous ON or OFF operation.
  • Reliable synchronous timer motor.
  • Multiple wall plates available.
  • Easy wiring and installation.
  • Heavy-Duty 20 A rating.
  • Requires neutral connection.
  • Wall plate included.
Model Number KM2ST-1G
Description 24-Hour Heavy-Duty Mechanical In-Wall Timer, Timer Only, 120 VAC, 20A, 1 Gang, SPST, White
Color White
Operation Mode  24 hour
Hold Mode Included  No
Mechanism Type  Analog/Mechanical
Minimum ON/OFF Times 20 min
Application Compatibilities  Incandescent; Fluorescent; CFL
Wall Plate Configurations  Single-Gang
Includes Wall Plate  Yes
Finish Matte
Resistive (NO) Range(s) 20 A, 120 VAC
Inductive Load Ratings NO Ranges 8 A, 120 VAC
Incandescent Single Gang Load Ratings Ranges 1350 W, 120 VAC
Input Voltage Range(s) 120 VAC, 60 Hz
Wiring Configurations Single
Switch Type SPST
Neutral Connection Required  Yes
Wiring Option SPST (3) #14 AWG color coded; SPDT (4) #14 AWG color coded
Operating Humidity 0 to 95%, Non-condensing
Temperature (operation) -40 - 180 °F / -40 - 82 °C
Usage Environments  Indoor; Outdoor
UL Certification cULus
CSA Certification  cCSAus
RoHS Certification N/A
Warranty Period 1-Year limited
