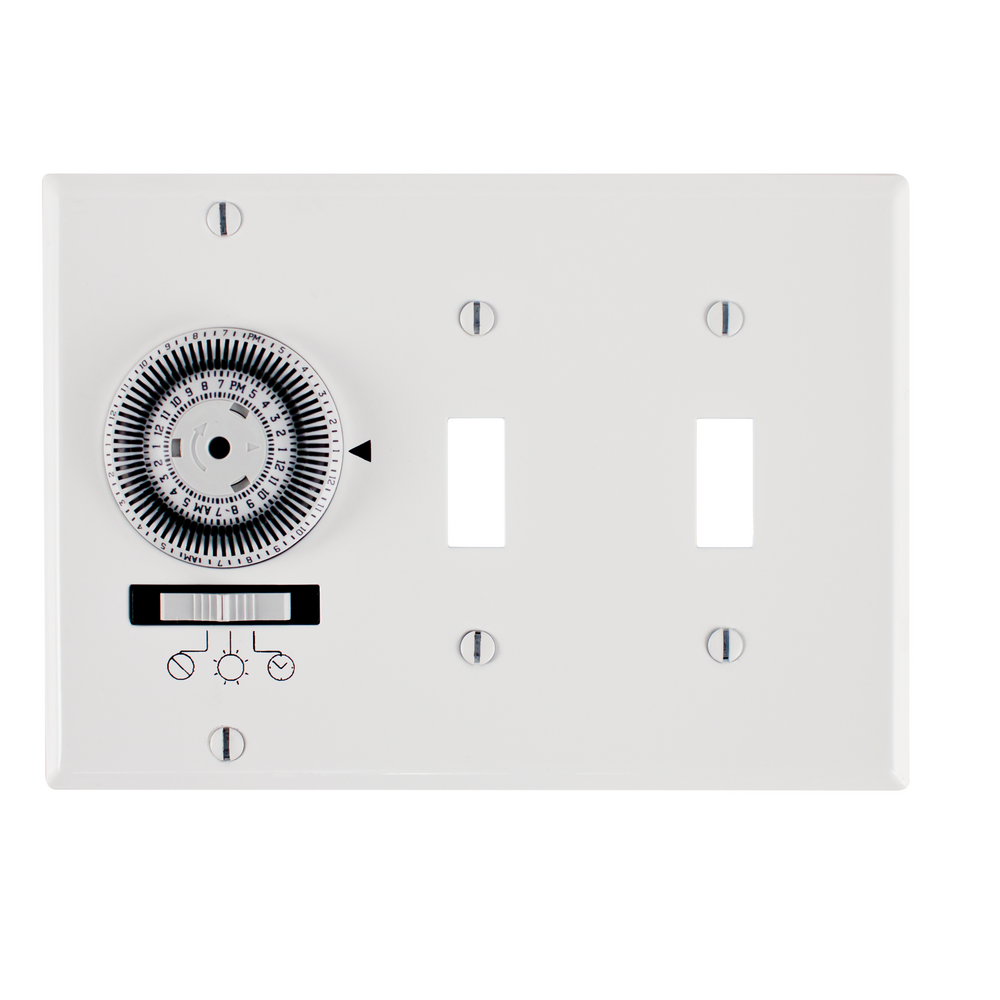

Intermatic KM2ST-3G, 24-Hour Heavy-Duty Mechanical In-Wall Timer, Timer and Toggle Switch, 120 VAC, 20A, SPST, 3 Gang, White
Regular price
$94.88
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
For installing on circuits up to 20 A, this timer provides automatic 24-hour ON/OFF control of outdoor/indoor lighting, fans, pumps, office equipment and other types of loads.
- 72 trippers provide 36 ON/OFF events per 24-hour period.
- Captive trippers with 20-minute switching intervals.
- 3-way (SPDT) switch available.
- 3-position ON/OFF/AUTO override provides continuous ON or OFF operation.
- Reliable synchronous timer motor.
- Multiple wall plates available.
- Easy wiring and installation.
- Heavy-Duty 20 A rating.
-
Requires neutral connection.
| Model Number | KM2ST-3G |
| Description | 24-Hour Heavy-Duty Mechanical In-Wall Timer, Timer and Toggle Switch, 120 VAC, 20A, SPST, 3 Gang, White |
| Color | White |
| Minimum ON/OFF Times | 20 min |
| Operation Mode | 24 hour |
| Mechanism Type | Analog/Mechanical |
| Application Compatibilities | Incandescent; Fluorescent; CFL |
| Wall Plate Configurations | 3-Gang |
| Includes Wall Plate | Yes |
| Resistive (NO) Range(s) | 20 A, 120 VAC |
| Inductive Load Ratings NO Ranges | 8 A, 120 VAC |
| Incandescent Multi Gang Load Ratings Ranges | 1350 W, 120 VAC |
| Input Voltage Range(s) | 120 VAC, 60 Hz |
| Wiring Configurations | Single |
| Switch Type | SPST |
| Neutral Connection Required | Yes |
| Wiring Option | SPST (3) #14 AWG color coded; SPDT (4) #14 AWG color coded |
| Hz | 60 |
| Operating Humidity | 0 to 95%, Non-condensing |
| Temperature (operation) | -40 - 180 °F / -40 - 82 °C |
| UL Certification | cULus |
| CSA Certification | cCSAus |
| RoHS Certification | N/A |
| Warranty Period | 1-Year limited |
