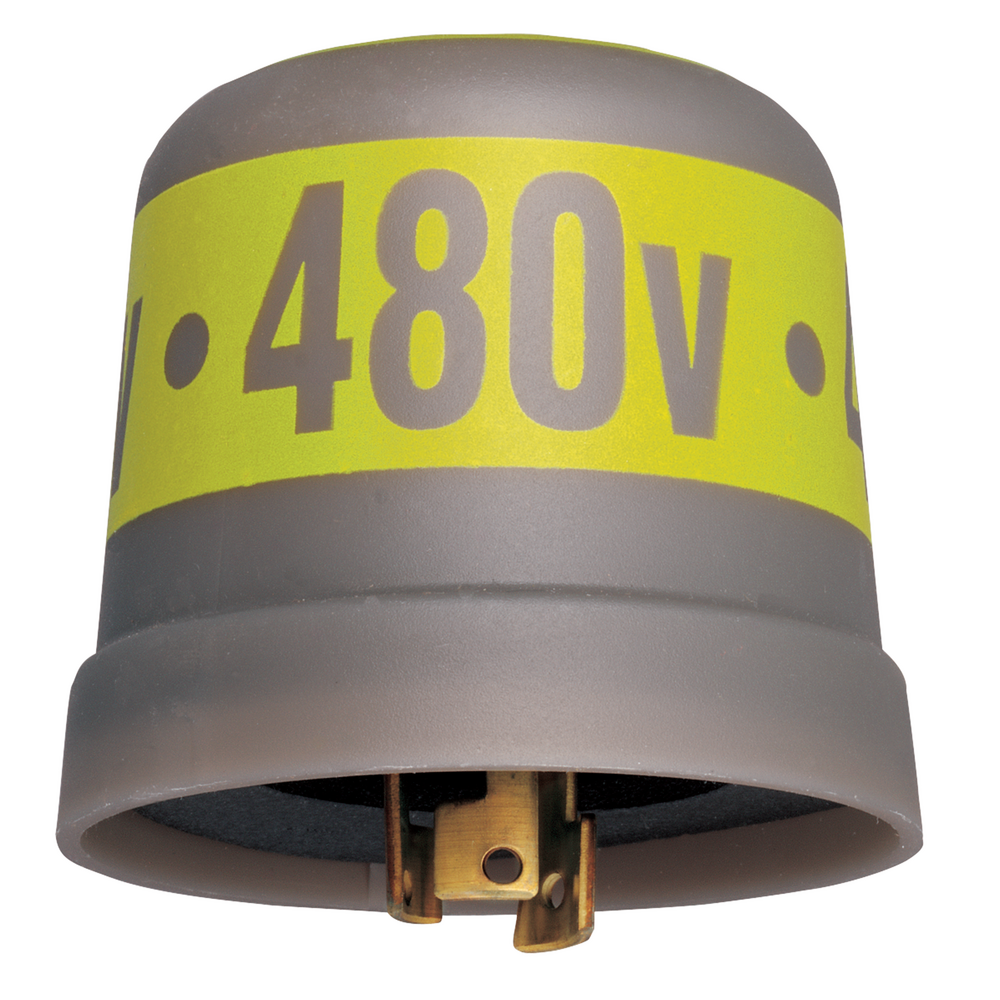

Intermatic LC4535, Locking Type Thermal Photocontrol, 480V
Regular price
$55.40
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
These photocontrols install on light fixtures with ANSI C136.10 NEMA receptacles commonly found on street light fixtures. Locking type design facilitates fast installation and replacement of photocontrol.
- Mechanical bimetal switch with Cadmium Sulfide photocell.
- Integral high impact thermoplastic housing.
- Locking type plug for quick installation and changeover.
- Delay feature prevents unwanted OFF switching.
- Complies with ANSI C136.10 standard.
-
Tested to 3,650 ON/OFF cycles.
| Model Number | LC4535 |
| Description | Locking Type Thermal Photocontrol, 480 V |
| Color | Gray with Yellow Band |
| Sensor Time Delay | 30 sec to 90 sec |
| Photocell Type | Cadmium Sulfide |
| Photo Control Switch Type | Mechanical Bimetal |
| Fail Mode | ON |
| Photocontrol Type | Thermal |
| Application Compatibilities | HID; Incandescent |
| Photocontrol Style | Locking type |
| Photocontrol Sensor Location | Side |
| Housing Material | Polypropylene |
| Magnetic Ballast Range(s) | 8.3 A, 4000 VA |
| Tungsten Range(s) | 15 A, 7200 W |
| Input Voltage Range(s) | 480 VAC, 50/60 Hz |
| Temperature (operation) | -40 °F to 158 °F / (-40 °C to 70 °C) |
| Usage Environments | Outdoor |
| UL Certification | cULus |
| CSA Certification | cCSAus |
| RoHS Certification | N/A |
| Warranty Period | 2-Year limited |
