Home » Intermatic LED4537SC, NIGHTFOX Specifier Grade Locking Type Electronic Photocontrol, 347/480V
Intermatic

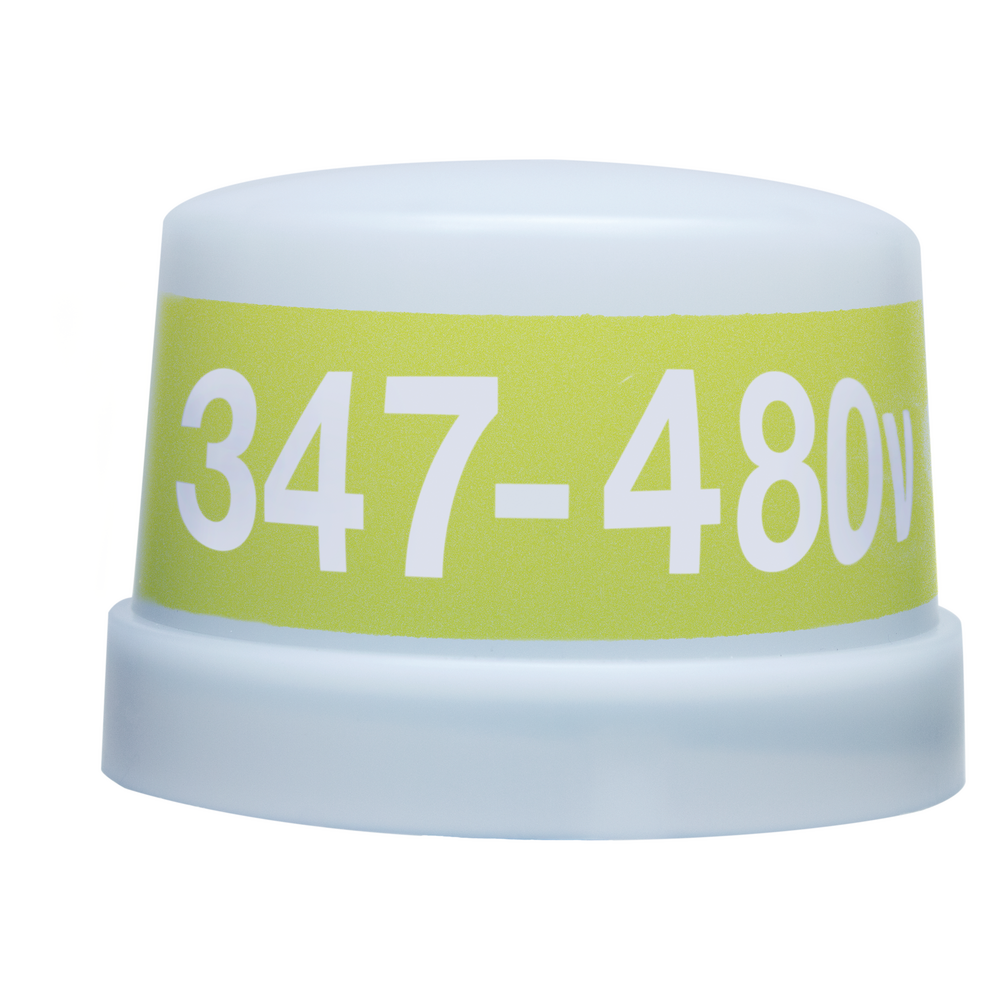

Intermatic LED4537SC, NIGHTFOX Specifier Grade Locking Type Electronic Photocontrol, 347/480V

In stock
SKU: LED4537SC
$72.52
Voltage range
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.

Use this text to encourage communication or promote sharing on social networks.

You can also add links

Photocontrol specifically designed for 20-year service to match the life expectancy of long-life LED and new induction fixtures.

  • Non-drift silicon light sensor with IR filter.
  • DC relay with zero-crossing circuitry for extended life.
  • All components meet 20-year life expectancy.
  • Conformal coated PCB.
  • Exceeds 15,000 ON/OFF switching cycles.
  • Ideal for single or multi-fixture HID and LED installations (up to 2,220 W @ 277 VAC).
  • 685 J MOV surge protection.
  • High precision, microprocessor-controlled zero-cross switching, individually calibrated to extend the life of 20 A relay independent of load being switched.
Model Number LED4537SC
Description NIGHTFOX Specifier Grade Locking Type Electronic Photocontrol, 347/480 V
Color White with Yellow Band
Sensor Time Delay  Instant ON; 2 sec to 5 sec OFF
Photocell Type  Silicon Diode
Photo Control Switch Type Relay
Fail Mode  ON
Photocontrol Type Electronic
Application Compatibilities LED; Incandescent; HID
Photocontrol Style Locking type
Photocontrol Sensor Location  Side
Housing Material Polypropylene
Magnetic Ballast Range(s) 1800 VA
Tungsten Range(s)  1000 W
Electronic Ballast Load Ratings Ranges 2 A, 347 VAC
Input Voltage Range(s) 347/480 VAC, 50/60 Hz
Surge Protection Technology 685 J MOV
Temperature (operation) -40 °F to 158 °F / (-40 °C to 70 °C)
Usage Environments Outdoor
UL Certification  cULus
RoHS Certification N/A
Warranty Period 12-Year limited
