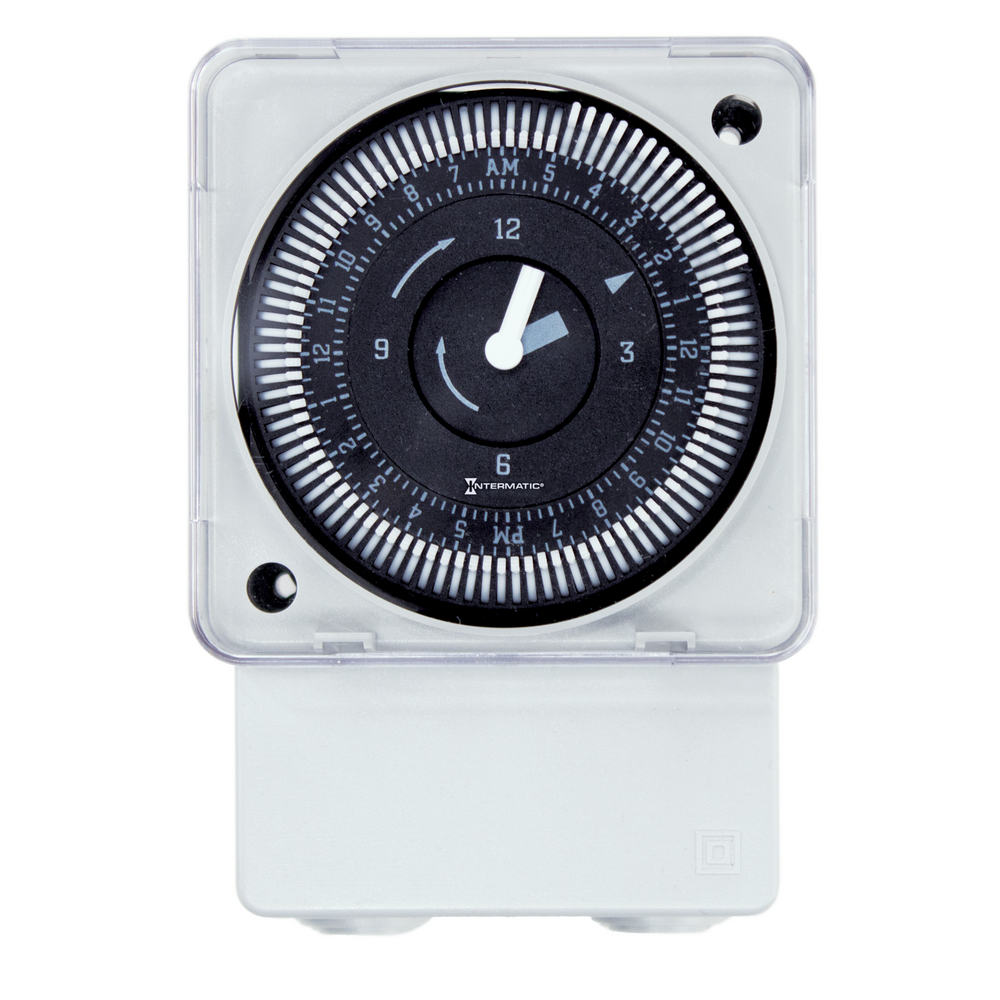

Intermatic MIL72AQTUZ-240, 24-Hour 208/240V Electromechanical Surface/DIN Rail Mount Timer Module with Battery Backup, 15 Minute Intervals, 21A, SPDT
Regular price
$225.59
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The MIL72 series time switches are designed to be mounted inside a control panel and can accommodate surface/DIN rail or flush panel mounting. The MIL72 series is a light duty commercial time switch for 12-24 VAC/VDC, 120 or 208/240 VAC single-phase applications.
- 21 A SPDT switch.
- Synchronous drive or quartz drive (Q Models) with self-recharging battery backup.
- 72-hour carry-over battery backup on Q models.
- Captive trippers with 15-minute intervals.
- Available with or without override.
- True clock face, easy-to-set.
- Surface/DIN rail or flush mount.
- Clear plastic dust cover.
-
Compact size.
| Model Number | MIL72AQTUZ-240 |
| Description | 24-Hour 208/240V Electromechanical Surface/DIN Rail Mount Timer Module with Battery Backup, 15 Minute Intervals, 21A, SPDT |
| Color | White |
| Minimum Cycle Time | 15 min |
| Maximum Cycle Time | 24 hrs |
| Timing Interval | 15 min |
| Clock Drive Type | Quartz |
| Backup Type | 72-hour Carry-over; Battery; Self-recharging |
| Backup Protection Time | 72 Hours |
| Battery Service Type | Non-Replaceable |
| Mechanism Type | Electromechanical |
| Has Real-time Clock Face | Yes |
| Application Compatibilities | CFL; Fluorescent; Incandescent |
| Chemical Composition of the Battery Cell | Ni-MH |
| Mounting Options | Surface; DIN |
| Resistive (NO) Range(s) | 21 A, 250 VAC |
| Motor Load Ratings NO Ranges | 1 HP @ 120 VAC; 2 HP @ 250 VAC |
| Tungsten Incandescent Load Ratings NO Ranges | 1350 W, 120 VAC |
| Wiring Option | Screw terminal accepts up to #12 AWG wire |
| Input Voltage Range(s) | 208/240 VAC, 50/60 Hz |
| Switch Type | SPDT |
| Hz | 50/60 |
| Shortest switching time | ON/OFF 15 minutes |
| Operating Humidity | 0 to 95%, Non-condensing |
| Temperature (operation) | -4 °F to 131 °F / (-20 °C to 55 °C) |
| Operating Temperature with Battery Backup | -4° F to 131° F (-20° C to 55° C) |
| UL Certification | cRUus |
| CSA Certification | cCSAus |
| RoHS Certification | N/A |
| Warranty Period | 1-Year limited |
