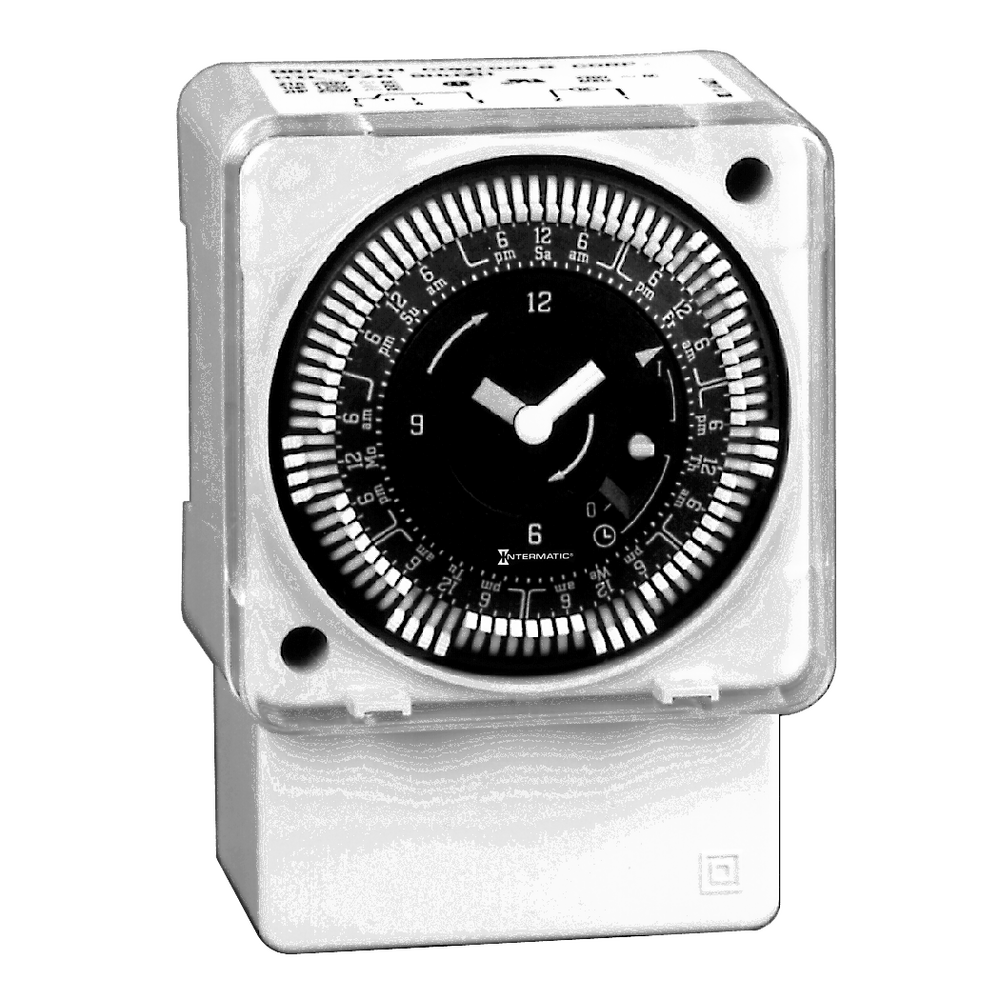

Intermatic MIL72ASWUZH-120, 7-Day 120V Electromechanical Surface/DIN Rail Mount Timer Module with Manual Override, 2 Hour Intervals, 21A, SPDT
Regular price
$176.02
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The MIL72 series time switches are designed to be mounted inside a control panel and can accommodate surface/DIN rail or flush panel mounting. The MIL72 series is a light duty commercial time switch for 12-24 VAC/VDC, 120 or 208/240 VAC single-phase applications.
- 21 A SPDT switch.
- Synchronous drive or quartz drive (Q Models) with self-recharging battery backup.
- 72-hour carry-over battery backup on Q models.
- Captive trippers with 2-hour intervals.
- Available with or without override.
- True clock face, easy-to-set.
- Surface/DIN rail or flush mount.
- Clear plastic dust cover.
-
Compact size.
| Model Number | MIL72ASWUZH-120 |
| Description | 7-Day 120V Electromechanical Surface/DIN Rail Mount Timer Module with Manual Override, 2 Hour Intervals, 21A, SPDT |
| Color | White |
| Minimum Cycle Time | 2 hrs |
| Maximum Cycle Time | 7 days |
| Timing Interval | 2 hrs |
| Clock Drive Type | Synchronous |
| Mechanism Type | Electromechanical |
| Has Real-time Clock Face | Yes |
| Application Compatibilities | CFL; Fluorescent; Incandescent |
| Mounting Options | Surface; DIN |
| Resistive (NO) Range(s) | 21 A, 250 VAC |
| Motor Load Ratings NO Ranges | 1 HP @ 120 VAC; 2 HP @ 240 VAC |
| Tungsten Incandescent Load Ratings NO Ranges | 1350 W, 120 VAC |
| Wiring Option | Screw terminal accepts up to #12 AWG wire |
| Input Voltage Range(s) | 120 VAC, 60 Hz |
| Switch Type | SPDT |
| Hz | 60 |
| Shortest switching time | ON/OFF 2 hours |
| Operating Humidity | 0 to 95%, Non-condensing |
| Temperature (operation) | -40 °F to 185 °F / (-40 °C to 85 °C) |
| UL Certification | cRUus |
| CSA Certification | cCSAus |
| RoHS Certification | N/A |
| Warranty Period | 1-Year limited |
