Home » Intermatic MIL72EQTUZH-120, 24-Hour 120V Electromechanical Flush Mount Timer Module with Battery Backup and Manual Override, 15 Minute Intervals, 21A, SPDT
Intermatic

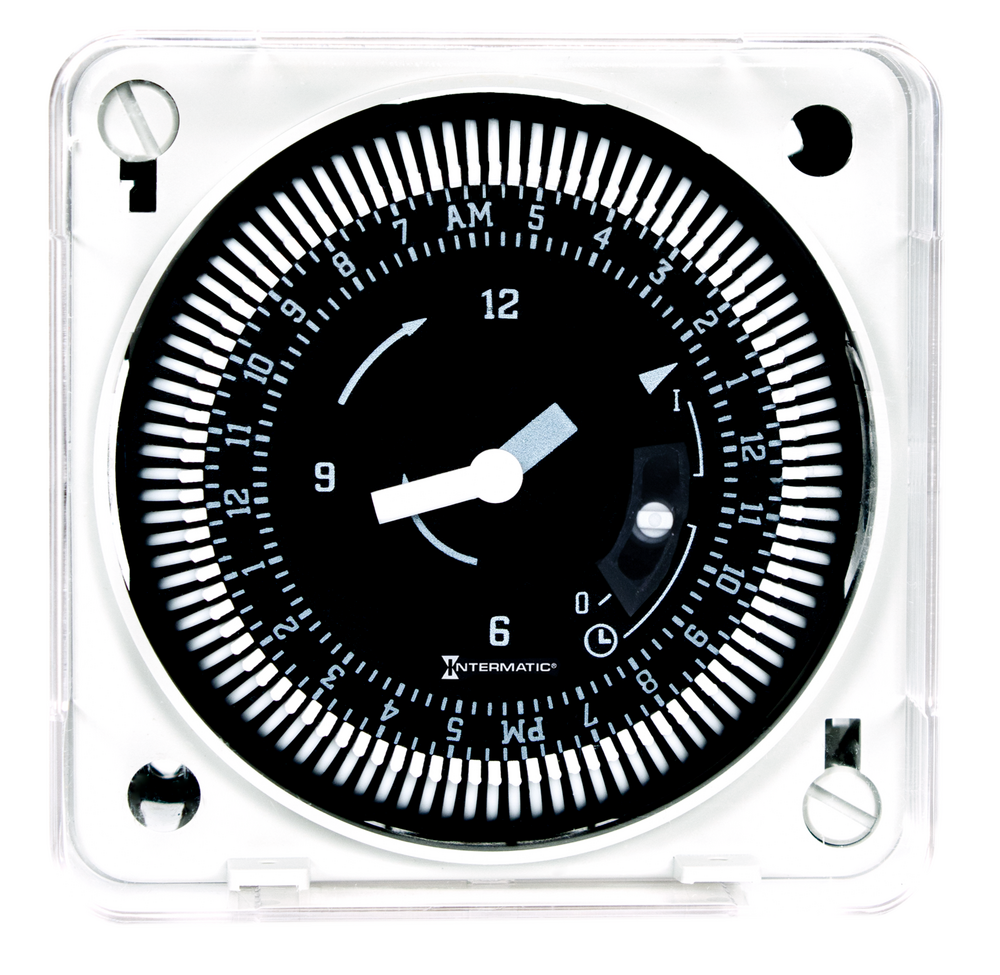

Intermatic MIL72EQTUZH-120, 24-Hour 120V Electromechanical Flush Mount Timer Module with Battery Backup and Manual Override, 15 Minute Intervals, 21A, SPDT

In stock
SKU: MIL72EQTUZH-120
$195.19
Voltage range
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.

Use this text to encourage communication or promote sharing on social networks.

You can also add links

The MIL72 series time switches are designed to be mounted inside a control panel and can accommodate surface/DIN rail or flush panel mounting. The MIL72 series is a light duty commercial time switch for 12-24 VAC/VDC, 120 or 208/240 VAC single-phase applications.

  • 21 A SPDT switch.
  • Synchronous drive or quartz drive (Q Models) with self-recharging battery backup.
  • 72-hour carry-over battery backup on Q models.
  • Captive trippers with 15-minute intervals.
  • Available with or without override.
  • True clock face, easy-to-set.
  • Surface/DIN rail or flush mount.
  • Clear plastic dust cover.
  • Compact size.
Model Number MIL72EQTUZH-120
Description 24-Hour 120V Electromechanical Flush Mount Timer Module with Battery Backup and Manual Override, 15 Minute Intervals, 21A, SPDT
Color White
Maximum Cycle Time  24 hrs
Timing Interval  15 min
Clock Drive Type Quartz
Backup Type  72-hour Carry-over; Battery; Self-recharging
Backup Protection Time 72 Hours
Battery Service Type Non-Replaceable
Mechanism Type Electromechanical
Has Real-time Clock Face Yes
Application Compatibilities CFL; Fluorescent; Incandescent
Mounting Options  Flush
Motor Load Ratings NO Ranges 1 HP @ 120 VAC; 2 HP @ 240 VAC
Tungsten Incandescent Load Ratings NO Ranges 1350 W, 120 VAC
Wiring Option  1/4" Quick connect terminals
Input Voltage Range(s) 12/24 VAC, 50/60 Hz
Switch Type  SPDT
Hz 50/60
Shortest switching time ON/OFF 15 minutes
Operating Humidity 0 to 95%, Non-condensing
Temperature (operation)  -4 °F to 131 °F / (-20 °C to 55 °C)
UL Certification cRUus
CSA Certification  cCSAus
RoHS Certification N/A
Warranty Period 1-Year limited
