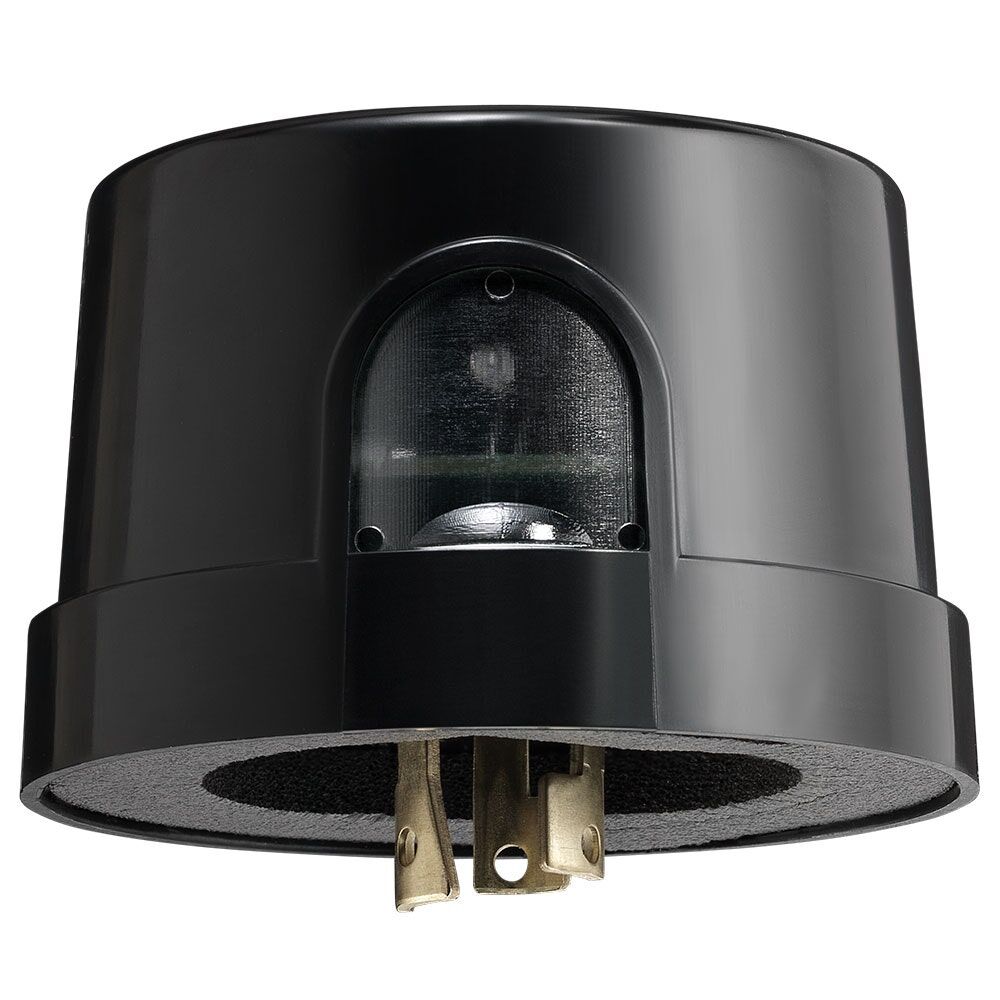

Intermatic NF10KL, NIGHTFOX Select Grade Locking Type Electronic Photocontrol, 120-277 V, Black, 10kV/5kA Surge Protection Per C136.10
Regular price
$32.38
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
NIGHTFOX Select grade long life photocontrols are designed to match the life of the LED lighting fixture. Our Select grade photocontrols are designed to last 15 years and are backed up by a 10-year warranty.
- Non-drifting silicon light sensor, IR filtered for human eye response.
- Zero-cross technology helps the device withstand severe inrush currents and extend the 20 A relay life.
- Exceeds 10,000 ON/OFF operations at full load, to meet life expectancy of LED fixtures.
- Conformal coated PCB assembly.
- All components meet 15-year life requirements.
-
For high-performance LED fixtures totaling 1650 W @ 277 VAC.
| Model Number | NF10KL |
| Description | NIGHTFOX Select Grade Locking Type Electronic Photocontrol, 120-277 V, Black, 10kV/5kA Surge Protection Per C136.10 |
| Color | Black |
| Sensor Time Delay | Instant ON; 2 sec to 5 sec OFF |
| Photocell Type | Silicon Diode |
| Photo Control Switch Type | Relay |
| Fail Mode | ON |
| Photocontrol Type | Electronic |
| Application Compatibilities | LED; Incandescent; HID |
| Photocontrol Style | Locking type |
| Photocontrol Sensor Location | Side |
| Housing Material | Polycarbonate with Acrylic Window |
| Magnetic Ballast (NO) Range(s) | 1800 VA |
| Electronic Ballast Load Ratings NO Ranges | 6 A, 120-277 VAC |
| Tungsten Incandescent Load Ratings NO Ranges | 1000 W |
| Input Voltage Range(s) | 120-277 VAC, 50/60 Hz (Nominal Voltage) |
| Operating Voltage Range(s) | 102-305 VAC |
| Surge Protection Technology | 510 J MOV |
| Temperature (operation) | -40 °F to 158 °F / (-40 °C to 70 °C) |
| Usage Environments | Outdoor |
| UL Certification | cULus |
| RoHS Certification | Y |
| Warranty Period | 10-Year limited |
