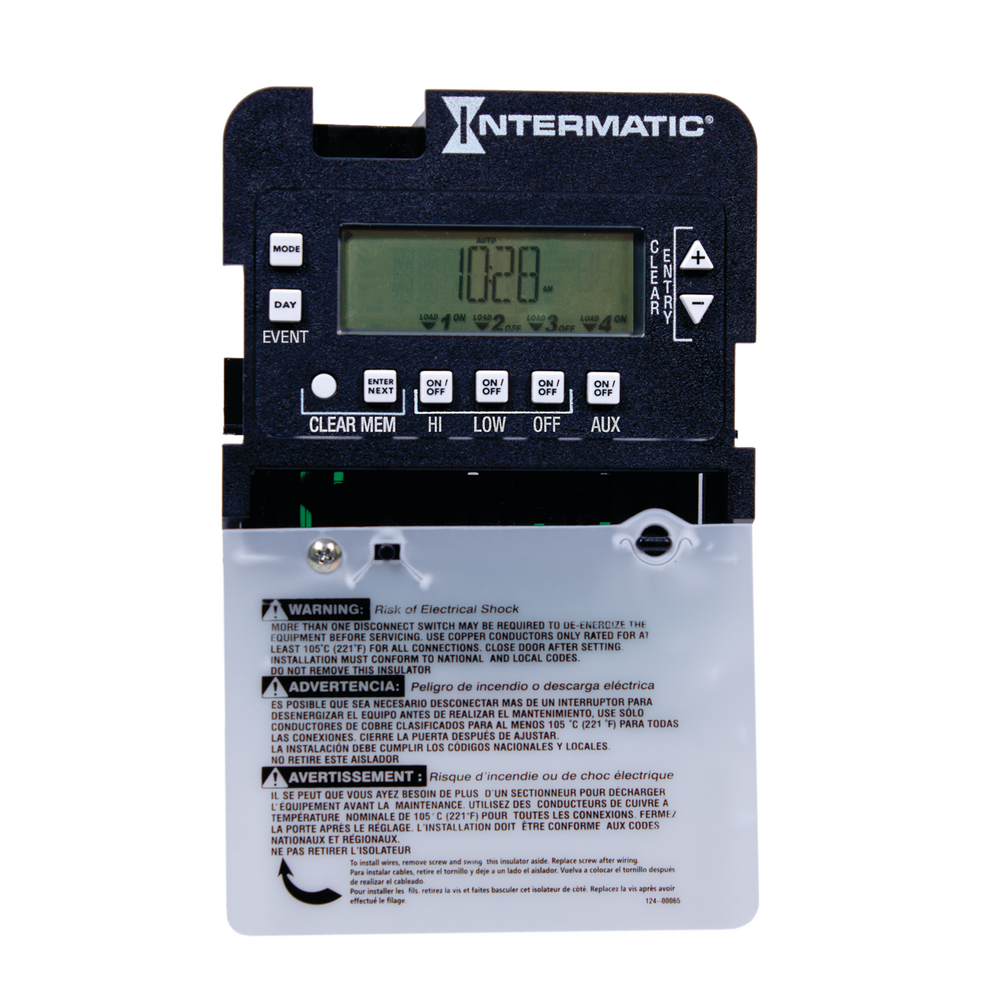

Intermatic P1403ME, Electronic Pump Motor Controller with Seasonal Adjustment, 4-Circuit, Mechanism Only, 120-277V

In stock
SKU: P1403ME
$378.86
Voltage range
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.

Use this text to encourage communication or promote sharing on social networks.

You can also add links

Control single- and two-speed pumps and auxiliary equipment with this 3-circuit programmable device. The seasonal adjustment feature can be programmed to automatically adjust filter pump ON/OFF schedules according to the season.

  • Saves up to 40% in monthly utility bills compared to standard timers.
  • Meets most rebate incentives.
  • Enables separate daily schedules.
  • Easy-to-follow on-screen setup for programming.
  • Auto-voltage adjust.
  • Efficient low-speed operation for all seasons.
  • User programmable high and low-speed events.
  • 100+ hour supercapacitor memory retention.
  • Available with Type 3R indoor/outdoor lockable metal enclosure.
Model Number P1403ME
Description Electronic Pump Motor Controller with Seasonal Adjustment, 4-Circuit, Mechanism Only
Color Black
Minimum ON/OFF Times 1 min
Maximum ON/OFF Times  23 hours, 59 minutes
Time Presets Flexible
Daylight Savings Adjustment  Automatic
Backup Type Supercapacitor
Resistive (NO) Range(s) 20 A, 28 VDC; 30 A, 24 VAC, 120-277 VAC
Inductive Load Ratings NO Ranges 30 A, 24 VAC, 120-277 VAC
Motor Load Ratings NO Ranges 16 FLA, 96 LRA @ 120 VAC; 17 FLA, 80 LRA @ 240 VAC
Tungsten Incandescent Load Ratings NO Ranges  5 A, 120/240 VAC
Input Voltage Range(s) 120-277 VAC, 50/60 Hz
Number of Circuits  3
Switch Type  4-SPST
Maximum Power Consumption (W) 7 W
Hz 50/60
Amperage  30 A
CSA Certification cCSAus
RoHS Certification N/A
Warranty Period 1-Year limited
