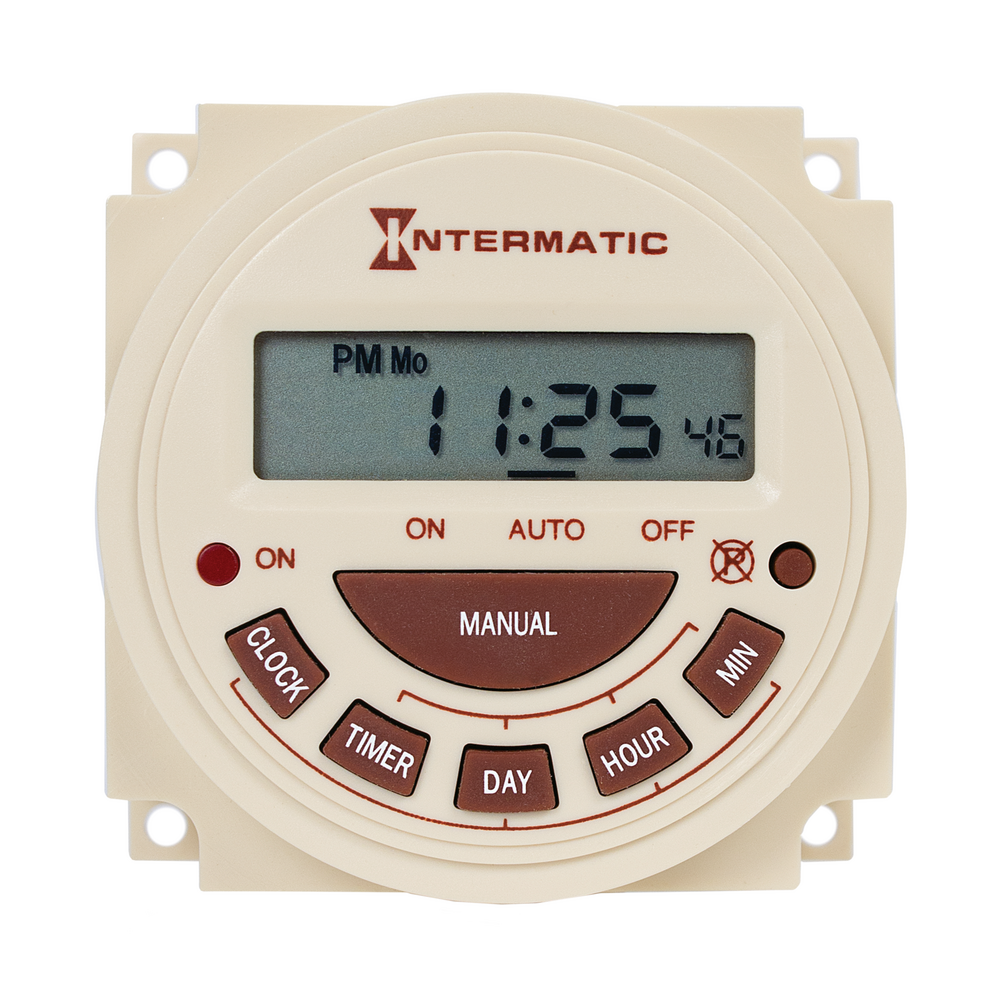

Intermatic PB313E, 24-Hour 120V Electronic Panel Mount Timer
Regular price
$80.75
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
These compact Electronic Timers are specially suited for applications where equipment needs to be cycled ON and OFF up to 8 times per day, and where automatic operation of the equipment requires occasional override by someone other than a qualified service professional. They offer rugged construction, resistance to surges and humidity, operate between wide temperature extremes and come with a 5 year service life replaceable lithium battery. A light indicator illuminates when the timer is in the ON position. Select feature allows timers to be continuously ON, OFF or in AUTO mode.
- 24-hour and 7-day models.
- Turn equipment ON/OFF up to 8 times per day.
- Select feature enables timers to be continuously in ON/OFF/AUTO mode.
- Rugged construction.
- Beige, plastic enclosure.
-
3-year service life replaceable lithium battery.
| Model Number | PB313E |
| Description | 24-Hour 120V Electronic Panel Mount Timer |
| Color | Ivory |
| Time Presets | Flexible |
| Operation Mode | 24 hour |
| Backup Type | Battery |
| Battery Type | CR2032 |
| Backup Protection Time | 3 Years |
| Battery Service Type | Replaceable |
| Resistive (NO) Range(s) | 16 A, 120 VAC |
| Motor Load (NO) Range(s) | 1/2 HP, 8 FLA @ 120 VAC |
| Input Voltage Range(s) | 16 A, 120 VAC, 50/60 Hz |
| Switch Type | SPDT |
| UL Certification | cRUus |
| RoHS Certification | N/A |
| Warranty Period | 1-Year limited |
