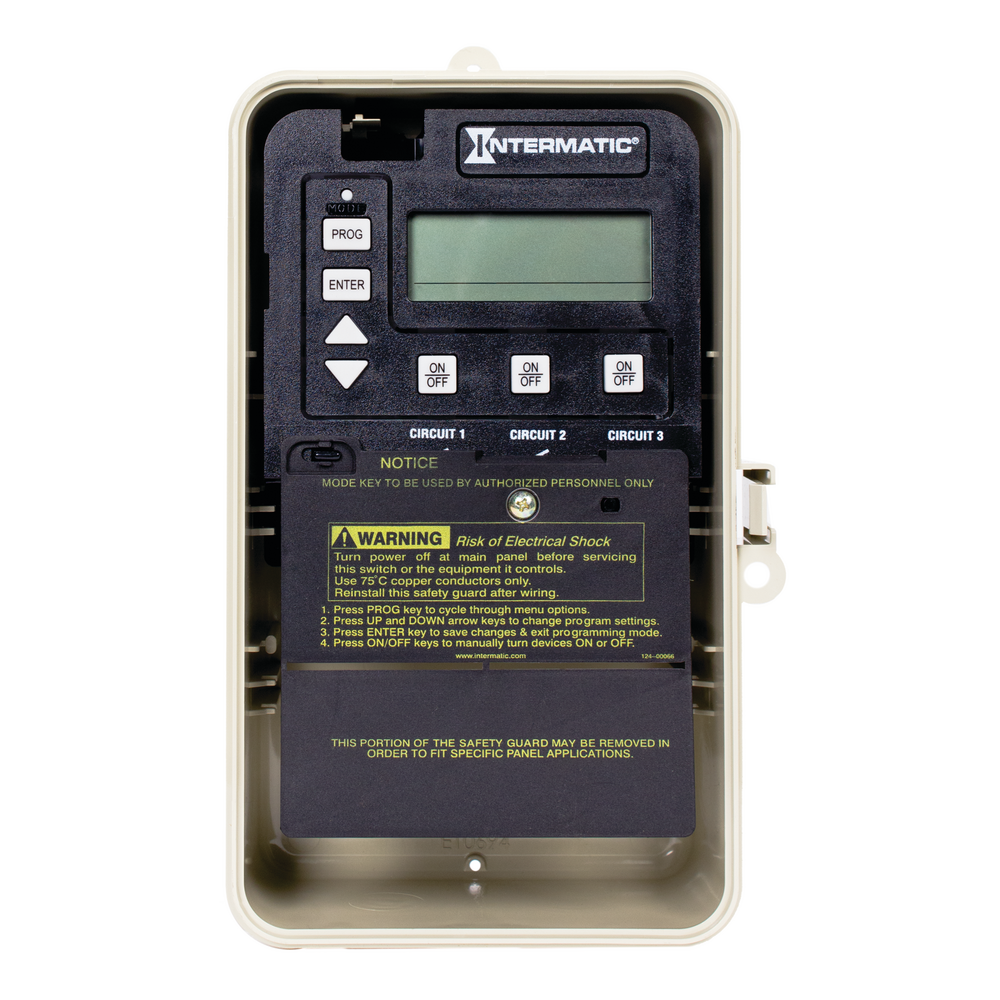

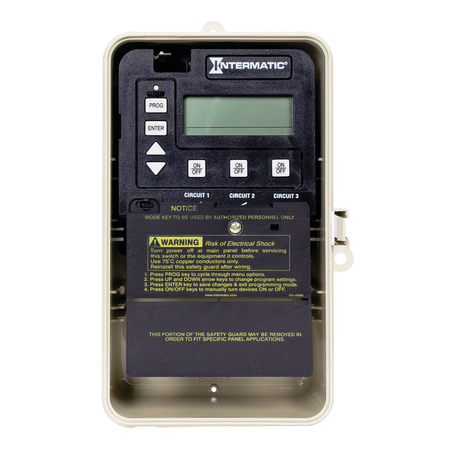

Intermatic PE153P, 24-Hour Electronic Time Control, 3-Circuit, Type 3R Plastic Enclosure, 120/240V
Regular price
$575.48
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
This multipurpose 24-hour control is capable of automatically switching loads according to a preset daily schedule. Controls single- and two-speed pumps and cleaner/booster pumps. Three ON/OFF events per circuit per day.
- Controls single- and two-speed pumps and cleaner/booster pumps.
- Three ON/OFF events per circuit per day.
- Seven preprogrammed modes.
- Freeze and heater protection.
- LCD readout.
- Multi-voltage input and output.
-
Countdown and override features enable programs to be overridden and automatically resumed without requiring the user to reprogram the system.
| Model Number | PE153P |
| Description | 24-Hour Electronic Time Control, 3-Circuit, Type 3R Plastic Enclosure |
| Color | Black |
| Time Presets | Flexible |
| Operation Mode | 24 hour |
| Enclosure Type | Outdoor type 3R metal |
| Resistive (NO) Range(s) | 17 A, 120/240 VAC |
| Motor Load Ratings NO Ranges | 80 LRA @ 120/240 VAC; 17 FLA @ 120/240 VAC |
| Tungsten Incandescent Load Ratings NO Ranges | 5 A, 120/240 VAC |
| Voltage Selection Type | Multi-Voltage |
| Input Voltage Range(s) | 120/240 VAC, 50/60 Hz |
| Number of Circuits | 3 |
| Switch Type | 3-SPST |
| Hz | 50/60 |
| Amperage | 17 A |
| CSA Certification | cCSAus |
| RoHS Certification | N/A |
| Warranty Period | 1-Year limited |
