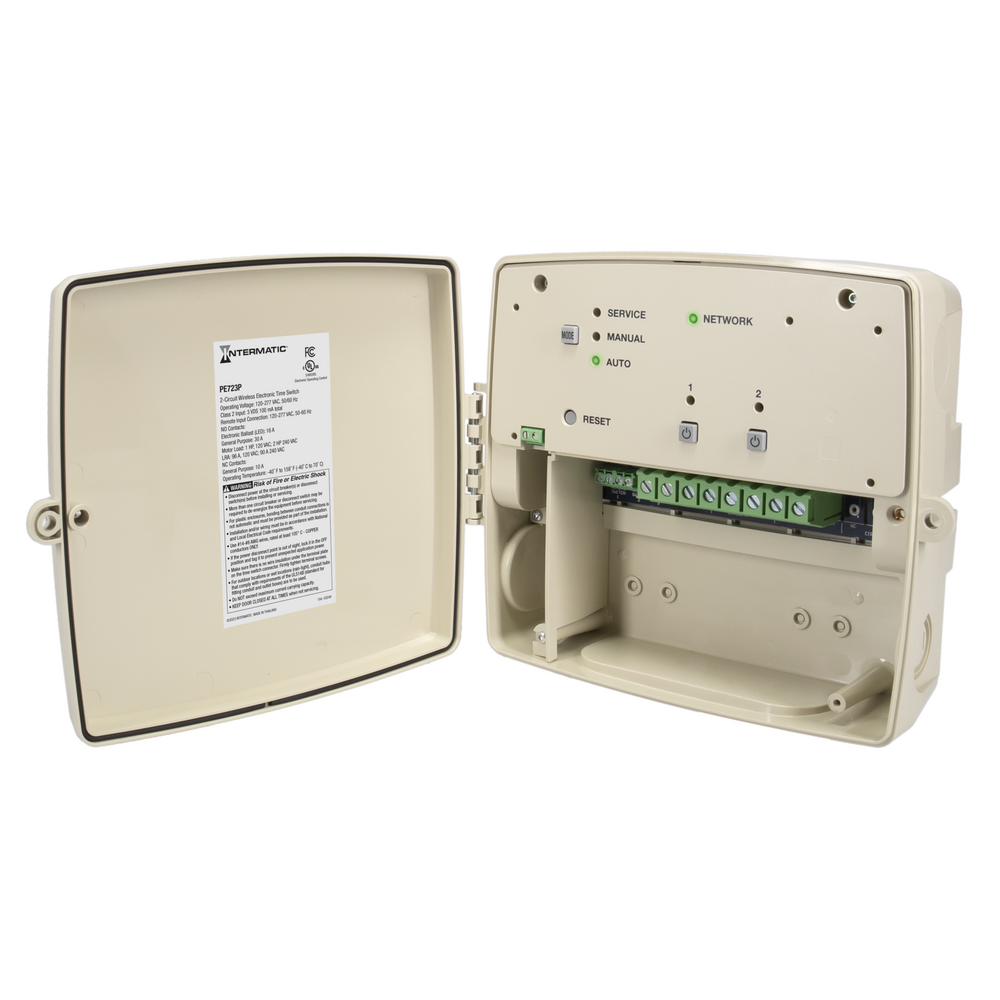

Intermatic PE723P, 24-Hour 7-Day Electronic WiFi Time Control, 2-Circuit, Type 3R Plastic Enclosure, 120-277V

This general purpose 24-hour, 7-day timer control is capable of automatically switching loads according to a preset daily schedule. Simply wire to various downstream hard-wired pool equipment and turn these loads On and Off via schedule or manually through the Intermatic Connect Mobile App or Voice command.

• Astronomic feature is built into the timer.
• Schedule automatic ON/OFF operation of connected pool equipment and make changes anywhere to suit your scheduled needs.
• Controls pool pumps, pool and spa lighting, landscape lighting, pool sanitation, and other auxiliary equipment; Up to 96 ON/OFF events per day.
• Simple retrofit - knockout locations and sizes designed equivalently to Intermatic legacy time switch enclosures.
• Remote access - once connected to a WiFi network, the PE700 series can be accessed via the Intermatic Connect app from any location.
• Override inputs - remotely extend or override active schedules at any time with a switch, photocontrol, presence sensor or via the Intermatic Connect app.
• Auto voltage - automatic input voltage selection from 120 VAC to 277 VAC, 50/60 Hz.
• Configurable relay outputs for multiple switching options (SPDT or DPDT).
• Service mode - with optional timed-stop or timed-run feature. Locks external users out from controlling connected loads remotely.
• LED Status Indicators - provides visual cue to indicate the devices current state and connection status. Non-volatile EEPROM memory protects programing indefinitely.
