Intermatic ST700W, Ascend® Standard 7-Day Programmable Timer, 120 VAC, 15A, White
Regular price
$129.56
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

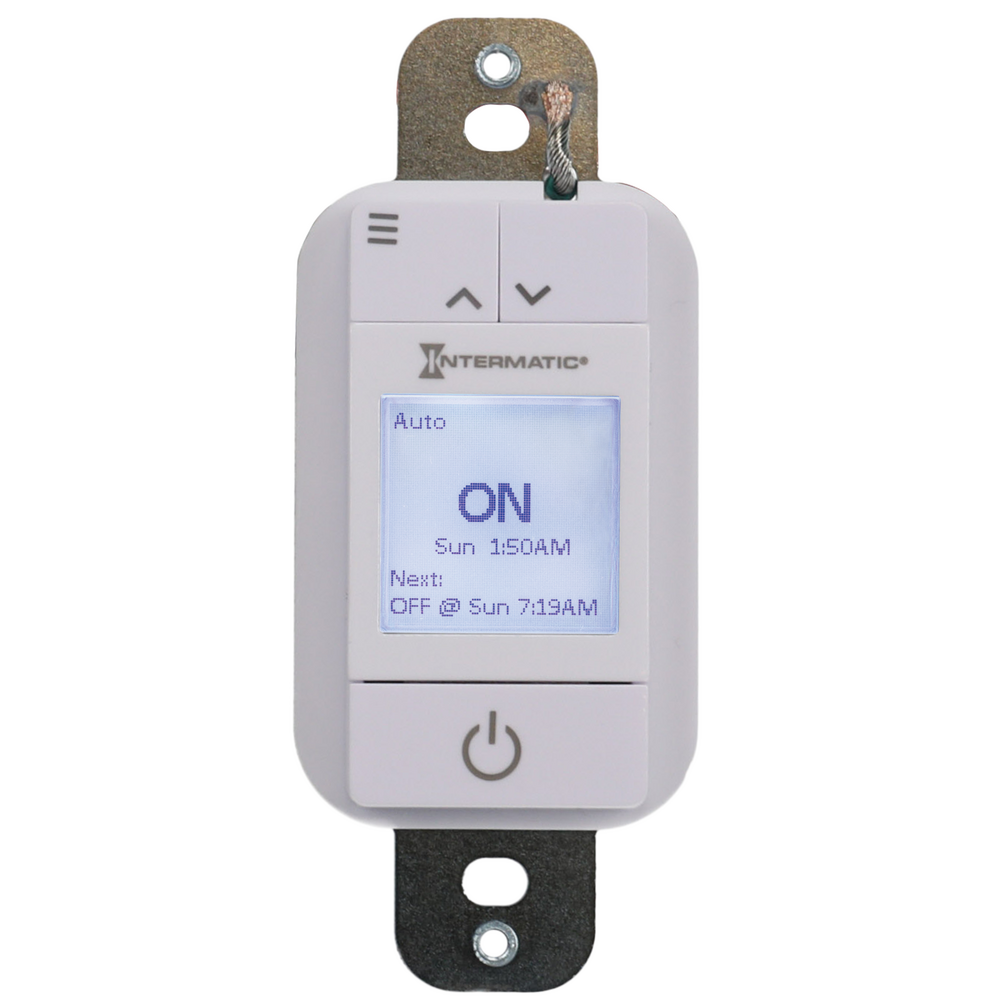

The Ascend Standard In-Wall Timer is a 7-Day Programmable Timer featuring a sleek, modern design. The timer can be configured in minutes using a large backlit LCD display and includes pre-programmed templates for easy use. The Ascend Standard features Astronomic dusk-to-dawn settings and automatic Daylight Saving Time adjustments. Neutral required. *NOTE: Not for use with sunlamps, saunas, or loads that could cause personal injury if timed incorrectly.
- Quick, intuitive installation.
- Single-pole or 3-way switches.
- Sleek, Modern Design.
- 7-Day Timer with Automatic Daylight Saving and Astronomic ON/OFF at Dusk or Dawn.
- Intuitive Setup.
- Three pre-programmed schedule templates for convenience.
- Fully customized scheduling for flexibility.
- Program up to 42 unique events.
- Large, easy-to-read backlit LCD screen.
-
Non-replaceable battery backup keeps time and date information in the event of a power loss.
| Model Number | ST700W |
| Description | Ascend® Standard 7-Day Programmable Timer, 120 VAC, 15A, White |
| Color | White |
| Minimum ON/OFF Times | 1 min |
| Maximum ON/OFF Operations | 42 |
| Operation Mode | 24 hour; 7 day |
| Operation Features | Astronomic; Daylight Saving Time |
| Mechanism Type | Digital/Electrical |
| Backup Type | Battery |
| Battery Type | CR2 Lithium |
| Battery Service Type | Non-replaceable |
| Application Compatibilities | CFL; Fluorescent; Incandescent; LED |
| Wall Plate Configurations | Single-Gang |
| General Purpose | 15 A |
| Electronic Ballast LED | 5 A, 600 W |
| Motor Load Ratings Ranges | 1 HP, 120 VAC, 50/60 Hz |
| Tungsten Load Ratings | 8 A |
| Inductive Load Ratings Ranges | 15 A, 120 VAC, 50/60 Hz |
| Incandescent Load Ratings (Multi-Gang) | 8 A, 120 VAC, 50 Hz; 8 A, 60 Hz |
| Incandescent Multi Gang Load Ratings Ranges | 8 A, 120 VAC, 50/60 Hz |
| Input Voltage Range(s) | 120 VAC, 50/60 Hz |
| Wiring Configurations | Single; 3-Way |
| Neutral Connection Required | Yes |
| Temperature (operation) | -4 - 122 °F / -20 - 50 °C |
| CSA Certification | cULus |
| RoHS Certification | N/A |
| Warranty Period | 3-Year limited |
