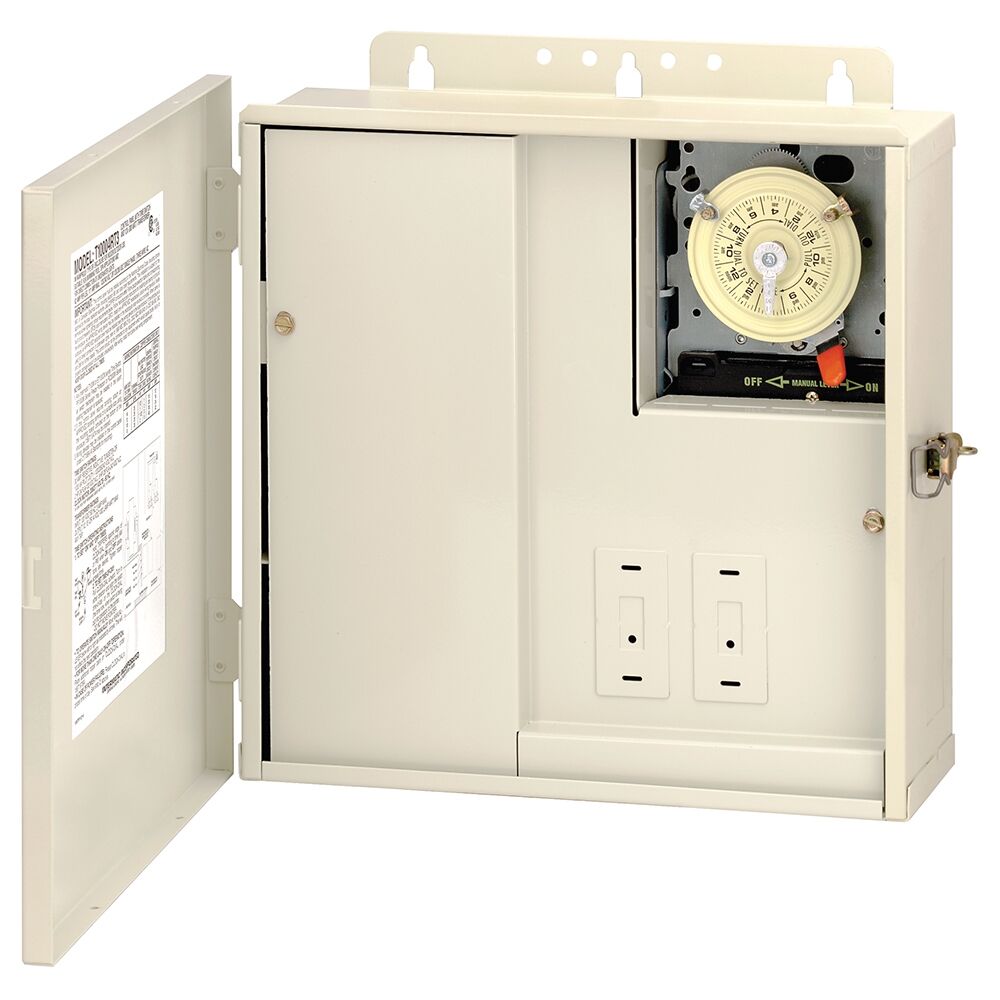

Intermatic T10004RT1, Control Panel with 100 W Transformer and T104M Mechanism
Regular price
$497.95
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
These mechanical control systems include built-in transformers for ease of installation.
- All-in-one control power for pool/spa installation.
- Easy to wire.
- Can house additional Intermatic mechanisms and components.
- Control two-speed pumps with the T40604RT3.
- Heavy-duty Type 3R metal indoor/outdoor power and load center.
- Wiring devices may be installed in these Load Centers with the use of Standoffs, sold separately.
-
Knockout on the side for additional wiring device.
| Model Number | T10004RT1 |
| Description | Control Panel with 100 W Transformer and T104M Mechanism |
| Color | Beige |
| Enclosure Type | 3R Beige metal |
| Tungsten Range(s) | 30 A, 120-240 VAC, 60 Hz |
| Inductive | 30 A, 120 VAC, 60 Hz; 30 A, 208 VAC, 60 Hz; 30 A, 240 VAC, 60 Hz |
| Resistive Load Ratings Ranges | 30 A, 120-240 VAC, 60 Hz |
| Inductive Load Ratings Ranges | 30 A, 120-240 VAC, 60 Hz |
| Pilot Duty Load Ratings Ranges | 1000 VA, 120-240 VAC, 60 Hz |
| Mechanism Supply Voltage | 240 VAC, 60 Hz |
| Motor Load Ratings Ranges | 2 HP, 24 FLA @ 120 VAC, 60 Hz; 5 HP, 28 FLA @ 240 VAC, 60 Hz |
| Number of Circuits | 1 |
| Switch Type | DPST |
| Maximum Power Consumption (W) | 3 W |
| Power Center Ratings | 62 A per leg, 109 A Max, 120-208 VAC, 60 Hz;62 A per leg, 109 A Max, 240 VAC, 60 Hz, Single Phase |
| Power Center Ratings Display | 62 A per leg, 109 A MAX, 120-240 VAC,60 Hz, Single-Phase |
| Transformer (W) | 100 |
| Transformer Input Voltage | 1 A, 120 VAC, 60 Hz |
| Transformer Output Voltage | 12, 13, 14 VAC |
| Number of Receptacle/Switch Knockouts | 2 |
| Temperature (operation) | -40 °F to 130 °F / (-40 °C to 54 °C) |
| CSA Certification | cCSAus |
| RoHS Certification | N/A |
| Warranty Period | 1-Year limited |
