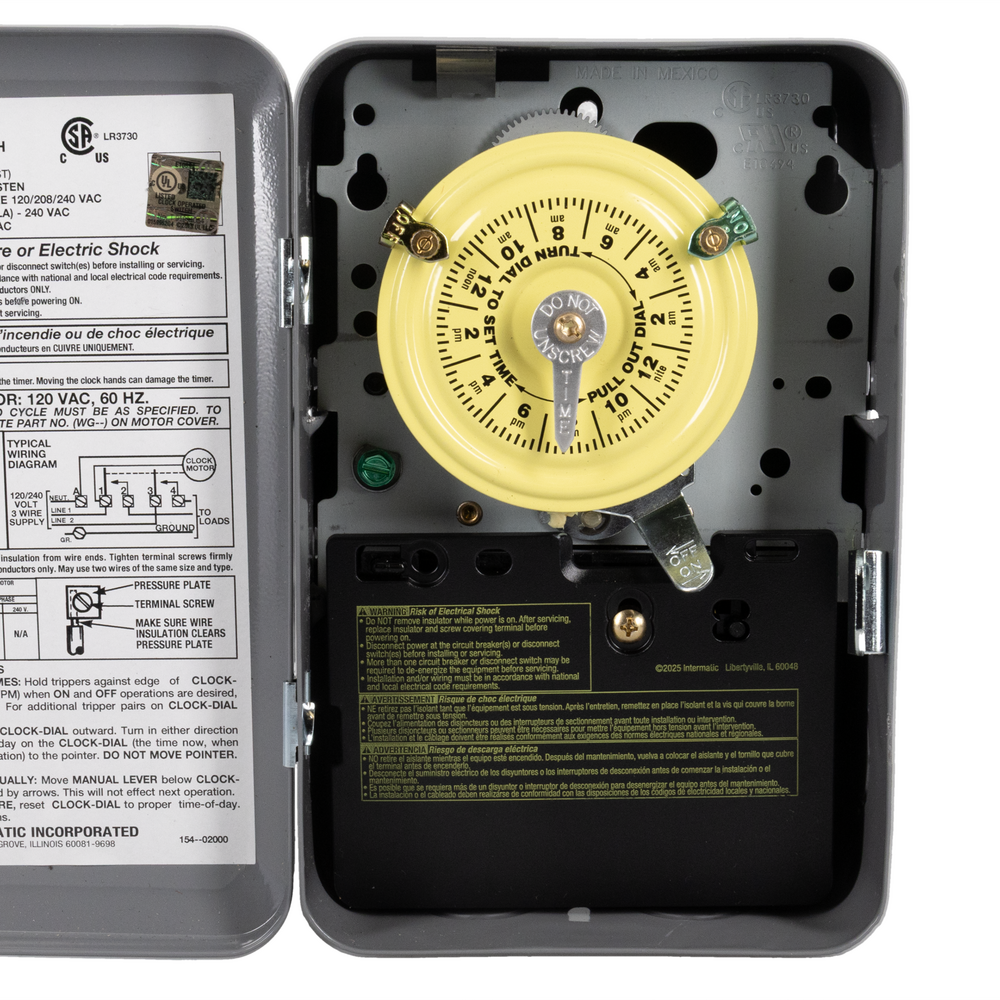

Intermatic T101, 24-Hour Mechanical Time Switch, 120 VAC, 60Hz, SPST, Indoor Metal Enclosure, 1 Hour Interval
Regular price
$117.07
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The T100 Series Mechanical Time Switch has proven it can stand the test of time. These dependable time switches can handle electrical loads up to 40 A per pole and allow for up to 12 ON/OFF operations per day. A manual override switch provides added convenience.
- Direct 24-hour control of most loads.
- Up to 12 ON/OFF operations each day with minimum ON/OFF times of one hour.
- Manual override.
-
One ON and one OFF tripper included.
| Model Number | T101 |
| Description | 24-Hour Mechanical Time Switch, 120 VAC, 60Hz, SPST, Indoor Metal Enclosure, 1 Hour Interval |
| Color | Gray |
| Minimum ON/OFF Times | 1 hour |
| Maximum ON/OFF Operations | 12 |
| Skipper Wheel | Not Included |
| Timing Interval | 1 hr |
| Operation Mode | 24 hour |
| Has Manual Override | Yes |
| Application Compatibilities | LED; HID |
| Enclosure Type | Indoor type 1 metal |
| Number of Trippers Included | 1 ON/1 OFF |
| Tungsten Range(s) | 40 A, 120-240 VAC, 60 Hz |
| Electronic Ballast | 16 A |
| Electronic Ballast Load Ratings Ranges | 16 A, 120 VAC |
| Inductive | 40 A, 240 VAC, 60 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 120 VAC, 60 Hz |
| Resistive Load Ratings Ranges | 40 A, 120-240 VAC, 60 Hz |
| Inductive Load Ratings Ranges | 40 A, 120-240 VAC, 60 Hz |
| Pilot Duty Load Ratings Ranges | 1000 VA, 120-240 VAC, 60 Hz |
| Motor Load Ratings Ranges | 2 HP, 24 FLA @ 120 VAC, 60 Hz; 5 HP, 28 FLA @ 240 VAC, 60 Hz |
| Wiring Option | Terminals |
| Input Voltage Range(s) | 120 VAC, 60 Hz |
| Number of Circuits | 1 |
| Switch Type | SPST |
| Maximum Power Consumption (W) | 3 W |
| Temperature (operation) | -40 °F to 130 °F / (-40 °C to 54 °C) |
| UL Certification | cULus |
| CSA Certification | cCSAus |
| RoHS Certification | N/A |
| Warranty Period | 1-Year limited |
