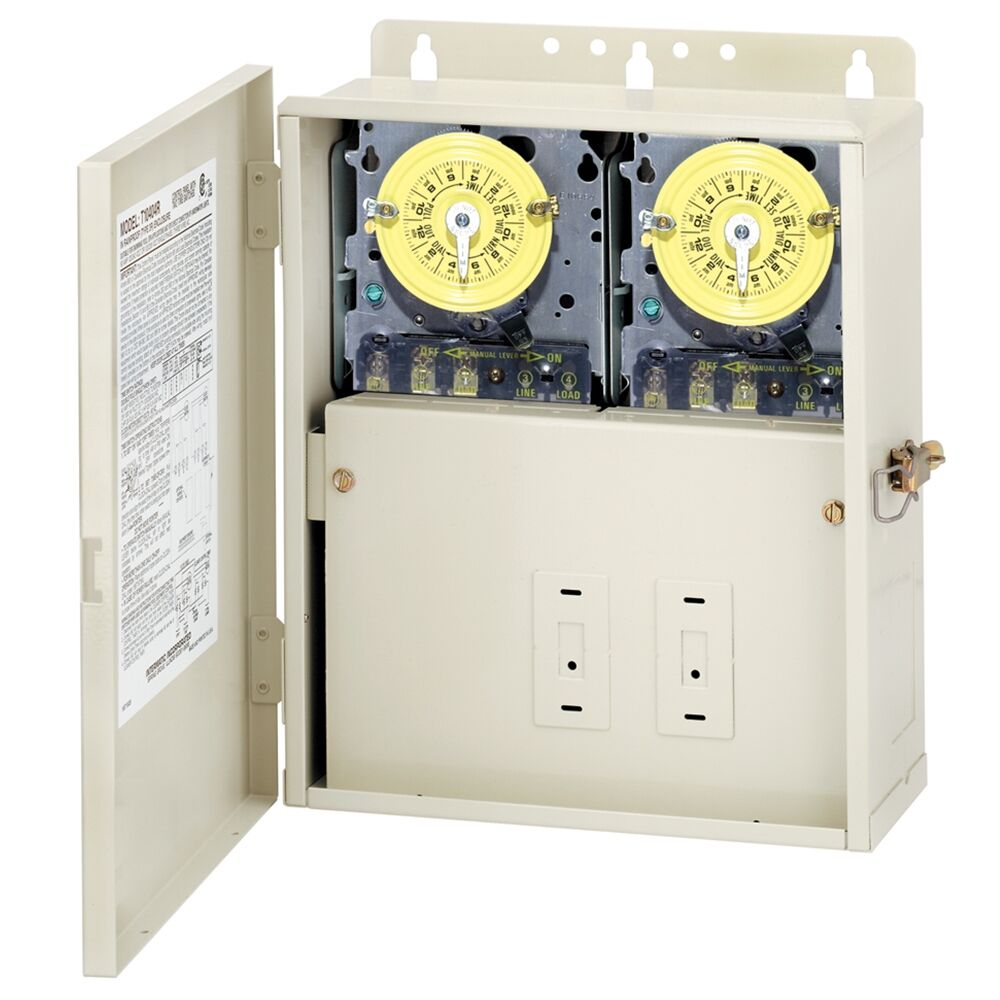

Intermatic T10101R, Control Panel with Two T101M Mechanisms
Regular price
$386.87
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Can be used as a power center only, or add mechanisms or wiring devices for complete control systems.
- Available with one or two heavy-duty time switch mechanisms.
- Accepts any combination of PF1000M, P1403ME, P1353ME, P4043ME, P4243ME, T100M or RC2000M Series mechanisms.
- Load center dead front has two knockouts for switches or GFCIs and one on the side.
- Wiring devices may be installed in these load centers with the use of Standoffs, sold separately below.
-
Control two-speed pumps with the T10604R.
| Model Number | T10101R |
| Description | Control Panel with Two T101M Mechanisms |
| Color | Beige |
| Enclosure Type | 3R Beige metal |
| Resistive (NO) Range(s) | 40 A, 120-240 VAC |
| Pilot Duty (NO) Range(s) | 1000 VA, 120-240 VAC |
| Inductive Load Ratings NO Ranges | 40 A, 120-240 VAC |
| Mechanism Supply Voltage | 120/120 VAC, 60 Hz |
| Pilot Duty Load Ratings Ranges | 1000 VA, 120-240 VAC, 60 Hz |
| Mechanism Supply Voltage | 240 VAC, 60 Hz |
| Mechanisms | (2) T101M |
| Motor Load Ratings NO Ranges | 2 HP, 24 FLA @ 120 VAC; 5 HP, 28 FLA @ 240 VAC |
| Tungsten Incandescent Load Ratings NO Ranges | 40 A, 120-240 VAC |
| Number of Circuits | 2 |
| Switch Type | SPST |
| Maximum Power Consumption (W) | 3 W |
| Number of Receptacle/Switch Knockouts | 3 |
| Temperature (operation) | -40 °F to 130 °F / (-40 °C to 54 °C) |
| CSA Certification | cCSAus |
| RoHS Certification | N/A |
| Warranty Period | 1-Year limited |
