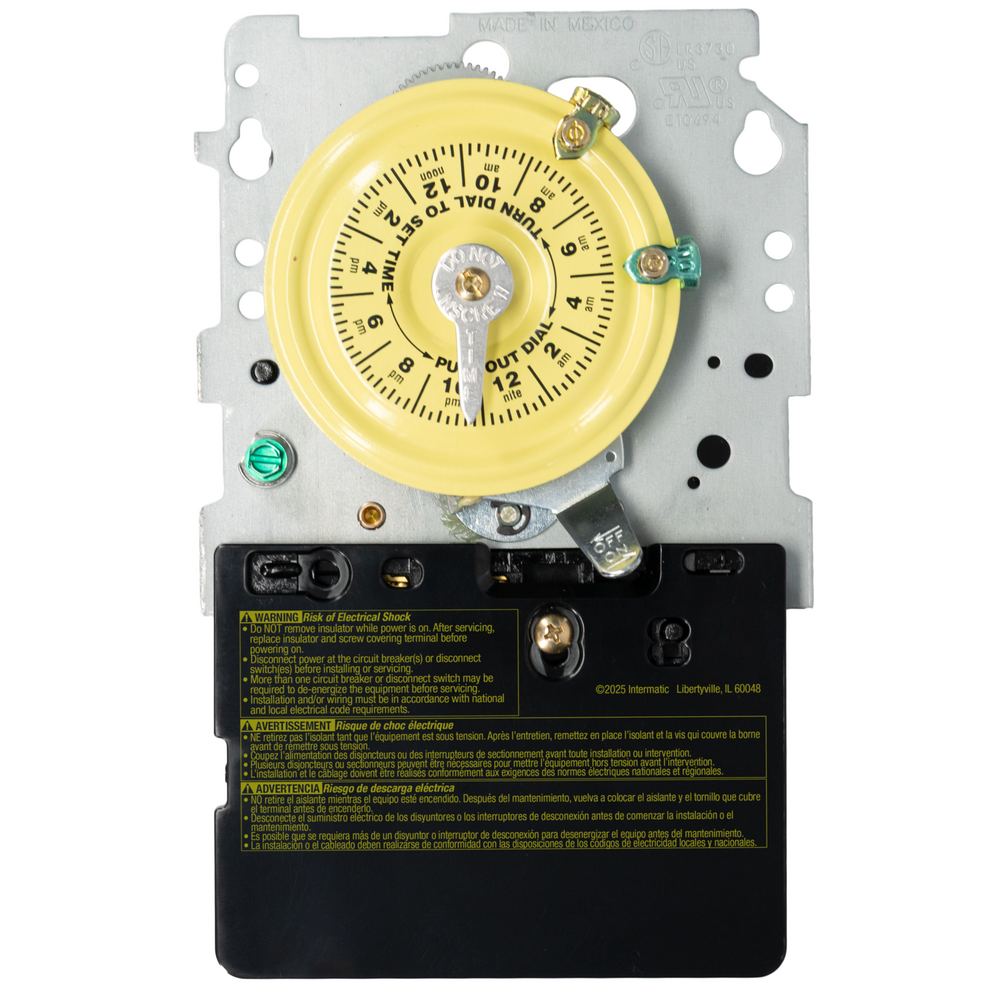

Intermatic T101M, 24-Hour 120 V Mechanical Time Switch, SPST, Mechanism Only

In stock
SKU: T101M
$137.36
Voltage range
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.

Use this text to encourage communication or promote sharing on social networks.

You can also add links

Heavy-duty mechanical time switches control a single load.

  • Highest motor load ratings in the industry.
  • 12 ON/OFF operations per day.
  • One ON and one OFF tripper included.
  • Can be installed in most Intermatic enclosures.
  • Available with pool heater protection.
  • Teeter-type terminals for multiple load connections.
Model Number T101M
Description 24-Hour 120V Mechanical Time Switch, SPST, Mechanism Only
Color Gray
Minimum ON/OFF Times 1 hour
Maximum ON/OFF Operations 12
Skipper Wheel  Not Included
Has Manual Override Yes
Application Compatibilities LED; HID
Enclosure Type  N/A - Mechanism only
Number of Trippers Included  1 ON/1 OFF
Tungsten Range(s)  40 A, 120-240 VAC, 60 Hz
Electronic Ballast 16 A
Electronic Ballast Load Ratings Ranges 16 A, 120 VAC
Inductive 40 A, 240 VAC, 60 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 120 VAC, 60 Hz
Motor 2 HP, 24 FLA @ 120 VAC, 60 Hz;5 HP, 28 FLA @ 240 VAC, 60 Hz
Resistive Load Ratings Ranges  40 A, 120-240 VAC, 60 Hz
Inductive Load Ratings Ranges 40 A, 120-240 VAC, 60 Hz
Pilot Duty Load Ratings Ranges 1000 VA, 120-240 VAC, 60 Hz
Heater Control Output  10 A, 250 VAC MAX, 60 Hz
Input Voltage Range(s) 120 VAC, 60 Hz
Number of Circuits  1
Switch Type SPST
Maximum Power Consumption (W) 3 W
Temperature (operation) -40 °F to 130 °F / (-40 °C to 54 °C)
UL Certification cULus
CSA Certification cCSAus
RoHS Certification N/A
Warranty Period 1-Year limited
