Home » Intermatic T101P201, 24-Hour 120V Mechanical Time Switch, SPST, Pool Heater Protection, Type 3R Plastic Enclosure
Intermatic

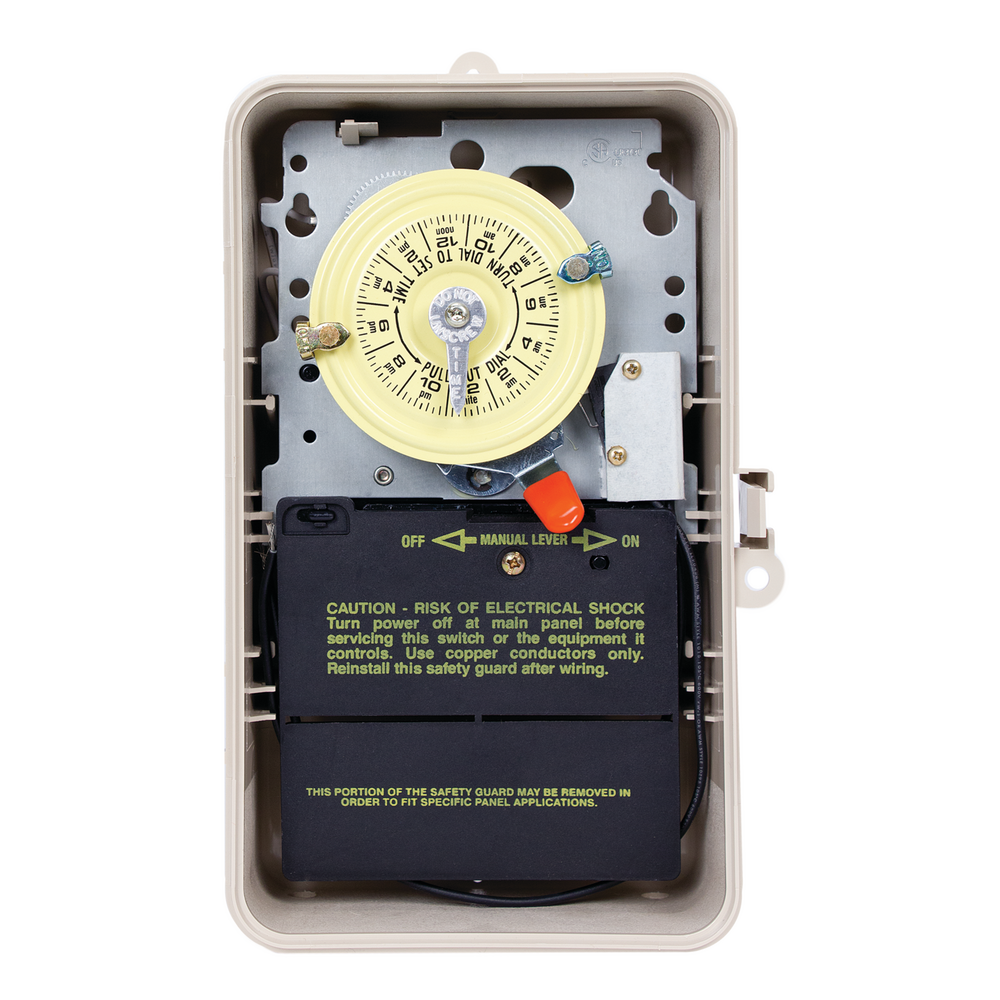

Intermatic T101P201, 24-Hour 120V Mechanical Time Switch, SPST, Pool Heater Protection, Type 3R Plastic Enclosure

In stock
SKU: T101P201
$248.81
Rated voltage
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.

Use this text to encourage communication or promote sharing on social networks.

You can also add links

Heavy-duty mechanical time switches control a single load

  • Highest motor load ratings in the industry.
  • 12 ON/OFF operations per day.
  • One ON and one OFF tripper included.
  • Available with pool heater protection.
  • Teeter-type terminals for multiple load connections.
Model Number T101P201
Description 24-Hour 120V Mechanical Time Switch, SPST, Pool Heater Protection, Type 3R Plastic Enclosure
Color Beige
Maximum ON/OFF Operations 12
Operation Mode 24 hour
Application Compatibilities LED
Enclosure Type Outdoor type 3R plastic
Tungsten Range(s) 40 A, 120-480 VAC, 60 Hz
Electronic Ballast  16 A
Electronic Ballast Load Ratings Ranges 16 A, 120 VAC
Inductive 40 A @ Varying Voltages, 60 Hz; 40 A, 277 VAC, 60 Hz; 40 A, 240 VAC, 60 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 120 VAC, 60 Hz
Motor 2 HP, 24 FLA @ 120 VAC, 60 Hz;5 HP, 28 FLA @ 240 VAC, 60 Hz
Resistive Load Ratings Ranges  40 A, 120-480 VAC, 60 Hz
Inductive Load Ratings Ranges  40 A, 120-480 VAC, 60 Hz
Pilot Duty Load Ratings Ranges  1000 VA, 120-480 VAC, 60 Hz
Heater Control Output 10 A, 250 VAC MAX, 60 Hz
Wiring Option Terminals
Input Voltage Range(s) 120 VAC, 60 Hz
Number of Circuits 1
Switch Type SPST
Maximum Power Consumption (W) 3 W
Temperature (operation) -40 °F to 130 °F / (-40 °C to 54 °C)
UL Certification cULus
CSA Certification cCSAus
RoHS Certification N/A
Warranty Period 1-Year limited
