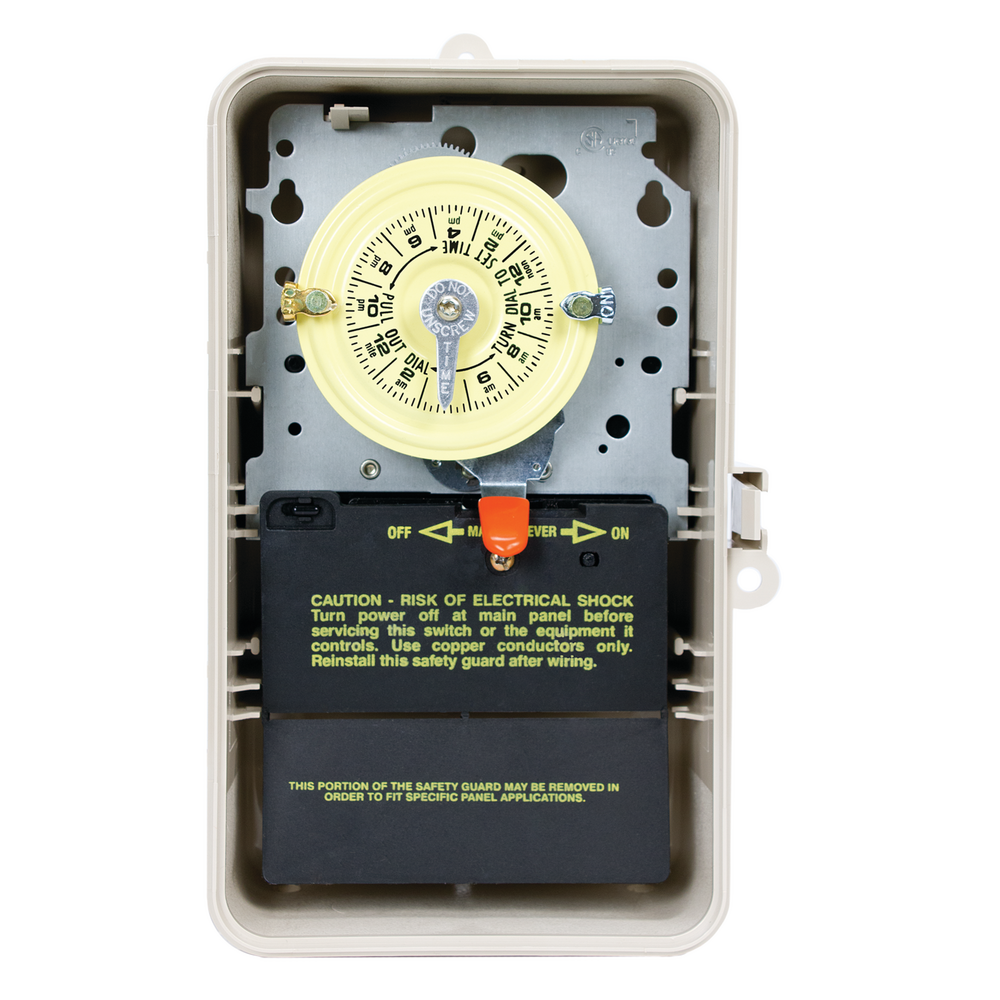

Intermatic T101P3, 24-Hour 120V Mechanical Time Switch, SPST, Type 3R Plastic Enclosure
Regular price
$208.84
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Heavy-duty mechanical time switches control a single load
- Highest motor load ratings in the industry.
- 12 ON/OFF operations per day.
- One ON and one OFF tripper included.
- Available with pool heater protection.
-
Teeter-type terminals for multiple load connections.
| Model Number | T101P3 |
| Description | 24-Hour 120V Mechanical Time Switch, SPST, Type 3R Plastic Enclosure |
| Color | Beige |
| Maximum ON/OFF Operations | 12 |
| Operation Mode | 24 hour |
| Application Compatibilities | LED |
| Enclosure Type | Outdoor type 3R plastic; Outdoor type 3R metal |
| Tungsten Range(s) | 40 A, 120-480 VAC, 60 Hz |
| Electronic Ballast | 16 A |
| Electronic Ballast Load Ratings Ranges | 16 A, 120 VAC |
| Inductive | 40 A, 240 VAC, 60 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 120 VAC, 60 Hz |
| Resistive Load Ratings Ranges | 40 A, 120-240 VAC, 60 Hz |
| Inductive Load Ratings Ranges | 40 A, 120-240 VAC, 60 Hz |
| Pilot Duty Load Ratings Ranges | 1000 VA, 120-480 VAC, 60 Hz |
| Motor Load Ratings Ranges | 2 HP, 24 FLA @ 120 VAC, 60 Hz; 5 HP, 28 FLA @ 240 VAC, 60 Hz |
| Heater Control Output | 10 A, 250 VAC MAX, 60 Hz |
| Wiring Option | Terminals |
| Input Voltage Range(s) | 120 VAC, 60 Hz |
| Number of Circuits | 1 |
| Switch Type | SPST |
| Maximum Power Consumption (W) | 3 W |
| Temperature (operation) | -40 °F to 130 °F / (-40 °C to 54 °C) |
| UL Certification | cULus |
| CSA Certification | cCSAus |
| RoHS Certification | N |
| Warranty Period | 1-Year limited |
