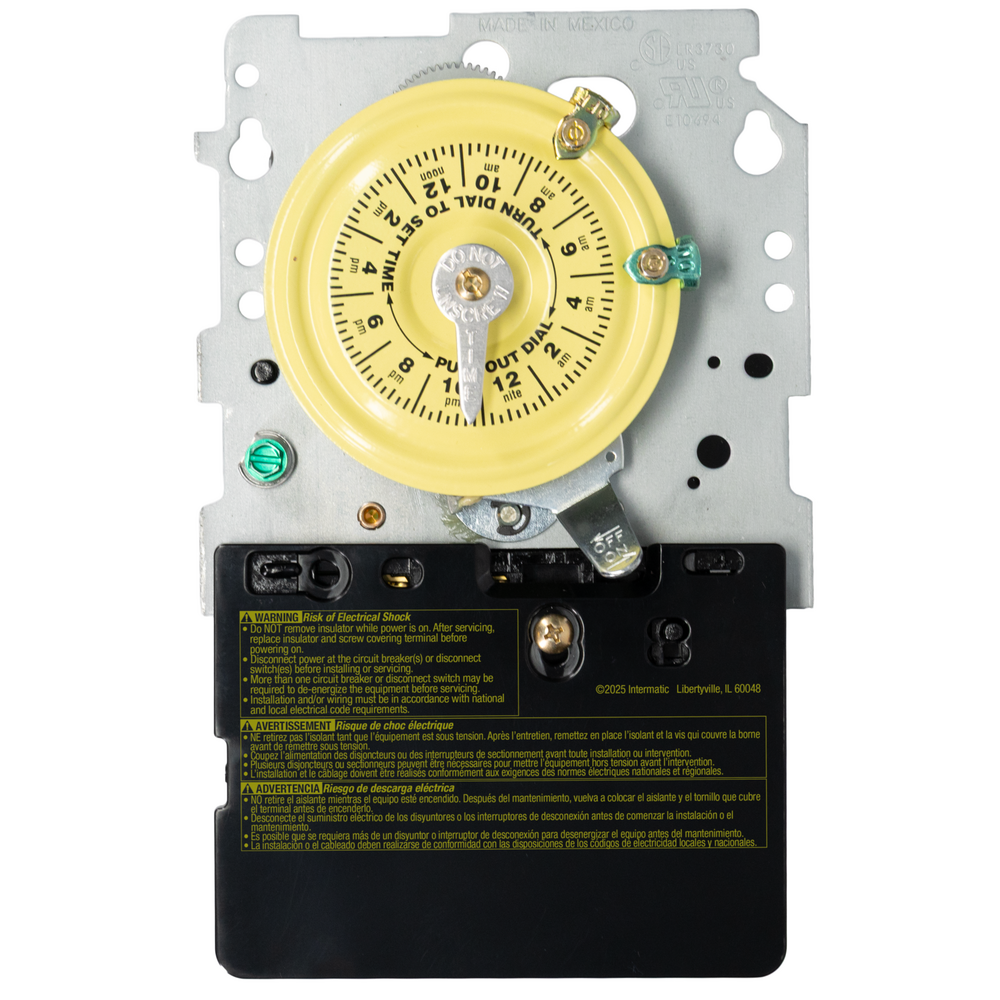

Intermatic T103M, 24-Hour Mechanical Time Switch, Mechanism Only, 120 VAC, 60Hz, DPST, 1 Hour Interval

In stock
SKU: T103M
$140.49
Voltage range
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.

Use this text to encourage communication or promote sharing on social networks.

You can also add links

Heavy-duty mechanical time switches control a single load.

  • Highest motor load ratings in the industry.
  • 12 ON/OFF operations per day.
  • One ON and one OFF tripper included.
  • Can be installed in most Intermatic enclosures.
  • Available with pool heater protection.
  • Teeter-type terminals for multiple load connections.
  • Can be installed in most Intermatic enclosures.
Model Number T103M
Description 24-Hour Mechanical Time Switch, Mechanism Only, 120 VAC, 60Hz, DPST, 1 Hour Interval
Color Gray
Minimum ON/OFF Times 1 hour
Skipper Wheel  Not Included
Has Manual Override Yes
Application Compatibilities LED; HID
Enclosure Type  N/A - Mechanism only
Number of Trippers Included  1 ON/1 OFF
Pilot Duty (NO) Range(s)  1000 VA, 120-277 VAC
Inductive Load Ratings NO Ranges  40 A, 120-277 VAC
Motor Load Ratings NO Ranges  2 HP, 24 FLA @ 120 VAC; 5 HP, 28 FLA @ 240 VAC
Resistive Heater 40 A, 120-277 VAC
Electronic Ballast LED 16 A, 120/277 VAC
Tungsten Incandescent Load Ratings NO Ranges 40 A, 120-277 VAC
Heater Control Output  10 A, 250 VAC MAX, 60 Hz
Input Voltage Range(s) 120 VAC, 60 Hz
Number of Circuits  2
Switch Type DPST
Maximum Power Consumption (W) 3 W
Hz 60
Amperage 40 A
Temperature (operation) -40 °F to 130 °F / (-40 °C to 54 °C)
UL Certification cULus
CSA Certification cCSAus
RoHS Certification N/A
Warranty Period 1-Year limited
