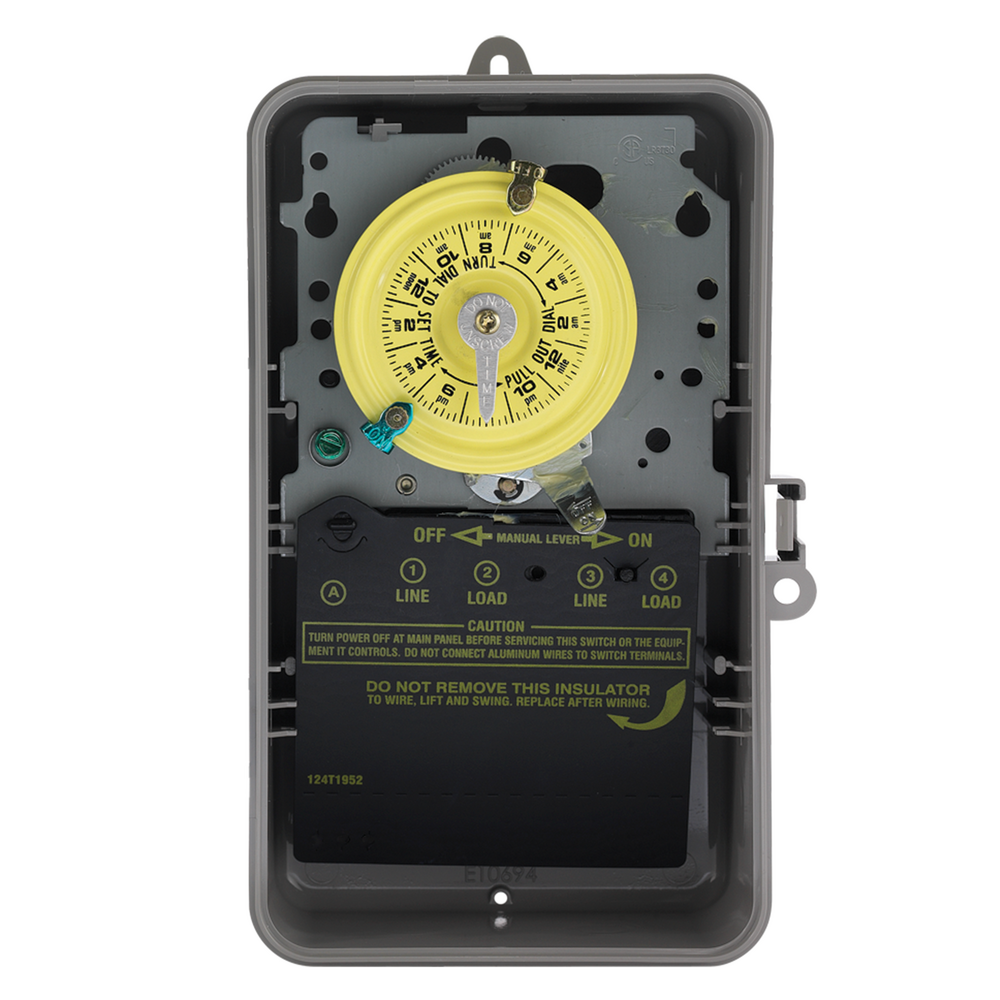

Intermatic T103P, 24-Hour Mechanical Time Switch, 120 VAC, 60Hz, DPST, Indoor/Outdoor Plastic Enclosure, 1 Hour Interval

In stock
SKU: T103P
$192.51
Voltage range
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.

Use this text to encourage communication or promote sharing on social networks.

You can also add links

The T100 Series Mechanical Time Switch has proven it can stand the test of time. These dependable time switches can handle electrical loads up to 40 A per pole and allow for up to 12 ON/OFF operations per day. A manual override switch provides added convenience.

  • Direct 24-hour control of most loads.
  • Up to 12 ON/OFF operations each day with minimum ON/OFF times of one hour.
  • Manual override.
  • One ON and one OFF tripper included.
Model Number T103P
Description 24-Hour Mechanical Time Switch, 120 VAC, 60Hz, DPST, Indoor/Outdoor Plastic Enclosure, 1 Hour Interval
Color Gray
Minimum ON/OFF Times 1 hour
Skipper Wheel  Not Included
Timing Interval  1 hr
Operation Mode 24 hour
Has Manual Override Yes
Application Compatibilities LED; HID
Enclosure Type  Indoor/outdoor type 3R plastic
Number of Trippers Included  1 ON/1 OFF
Pilot Duty (NO) Range(s)  1000 VA, 120-277 VAC
Inductive Load Ratings NO Ranges  40 A, 120-277 VAC
Motor Load (NO) Range(s)  2 HP, 24 FLA @ 120 VAC; 5 HP, 28 FLA @ 240 VAC
Resistive Heater 40 A, 120-277 VAC
Electronic Ballast LED 16 A, 120/277 VAC
Tungsten Incandescent (NO) Range(s) 40 A, 120-277 VAC
Wiring Option  Terminals
Input Voltage Range(s) 120 VAC, 60 Hz
Number of Circuits  2
Switch Type DPST
Maximum Power Consumption (W) 3 W
Temperature (operation) -40 °F to 130 °F / (-40 °C to 54 °C)
UL Certification cULus
CSA Certification cCSAus
RoHS Certification N/A
Warranty Period 1-Year limited
