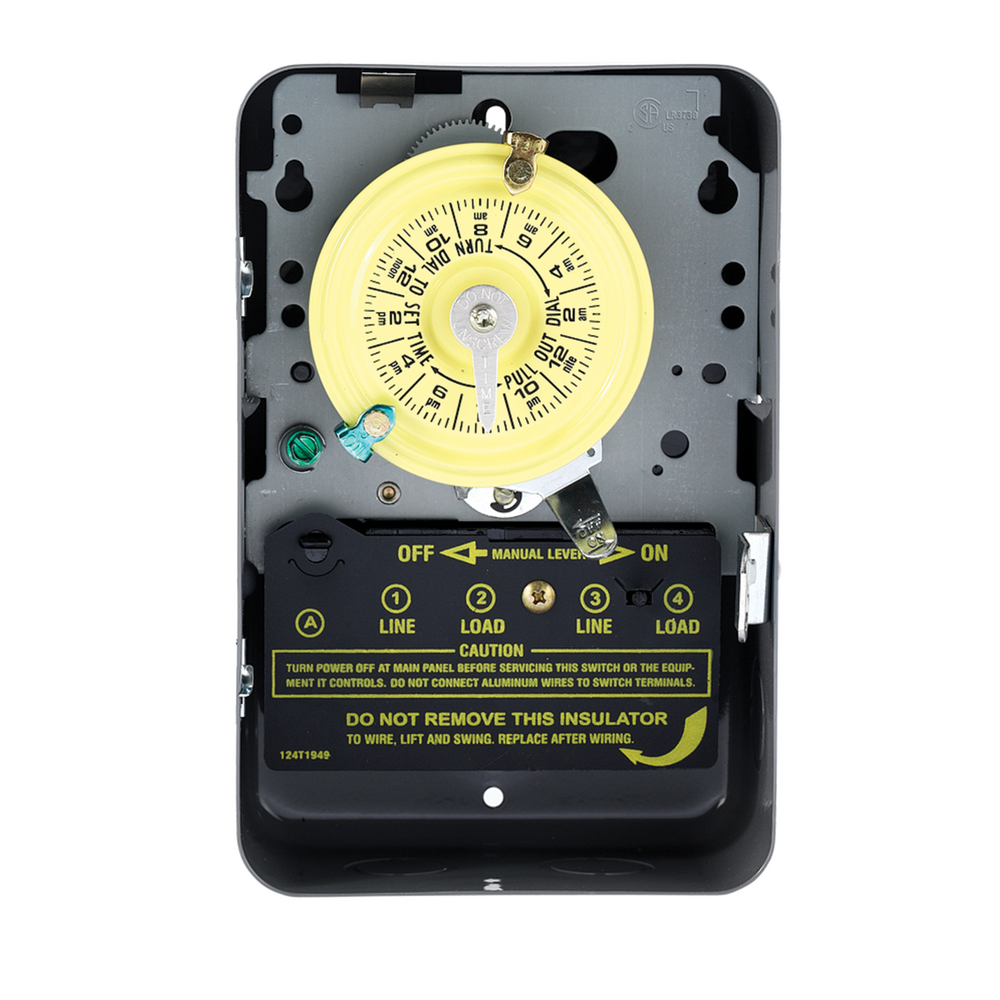

Intermatic T104-20, Mechanical Water Heater Time Switch, 208-277 VAC, 60Hz, DPST, Indoor Metal Enclosure, 1 Hour Interval
Regular price
$148.37
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
With the easy-to-set "Yellow Dial," these time switches allow for basic control of electric water heaters. These time switches offer a minimum ON/OFF time of one hour, and are available for 208-250 VAC applications. With the proven reliability of our mechanical line, these time switches provide dependable electric water heater control.
- Two sets of ON/OFF trippers.
- Enables shifting electricity use into off-peak hours to reduce energy costs.
- Convenient external override switch.
-
Up to 12 ON/12 OFF events.
| Model Number | T104-20 |
| Description | Mechanical Water Heater Time Switch |
| Color | Gray |
| Minimum ON/OFF Times | 1 hour |
| Operation Mode | 24 hour |
| Mechanism Type | Analog/Mechanical |
| Has Manual Override | Yes |
| Has Override Switch | Yes |
| Application Compatibilities | Electric Water Heater |
| Enclosure Type | Indoor type 1 metal |
| Number of Trippers Included | 2 ON/2 OFF |
| Pilot Duty (NO) Range(s) | 1000 VA, 120-277 VAC |
| Inductive Load Ratings NO Ranges | 40 A, 120-277 VAC |
| Clock Motor Voltage | 208/277 VAC, 60 Hz |
| Motor Load Ratings NO Ranges | 2 HP (24 FLA) @ 120 VAC; 5 HP (28 FLA) @ 240 VAC |
| Tungsten Incandescent Load Ratings NO Ranges | 40 A, 120-277 VAC |
| Wiring Option | Terminals |
| Input Voltage Range(s) | 208-277 VAC, 60 Hz |
| Number of Circuits | 2 |
| Switch Type | DPST |
| Maximum Power Consumption (W) | 3 W |
| Watts | 10000 |
| Hz | 60 |
| Amperage | 40 A |
| Temperature (operation) | -40 °F to 130 °F / (-40 °C to 54 °C) |
| UL Certification | cULus |
| CSA Certification | cCSAus |
| RoHS Certification | N/A |
| Warranty Period | 1-Year limited |
