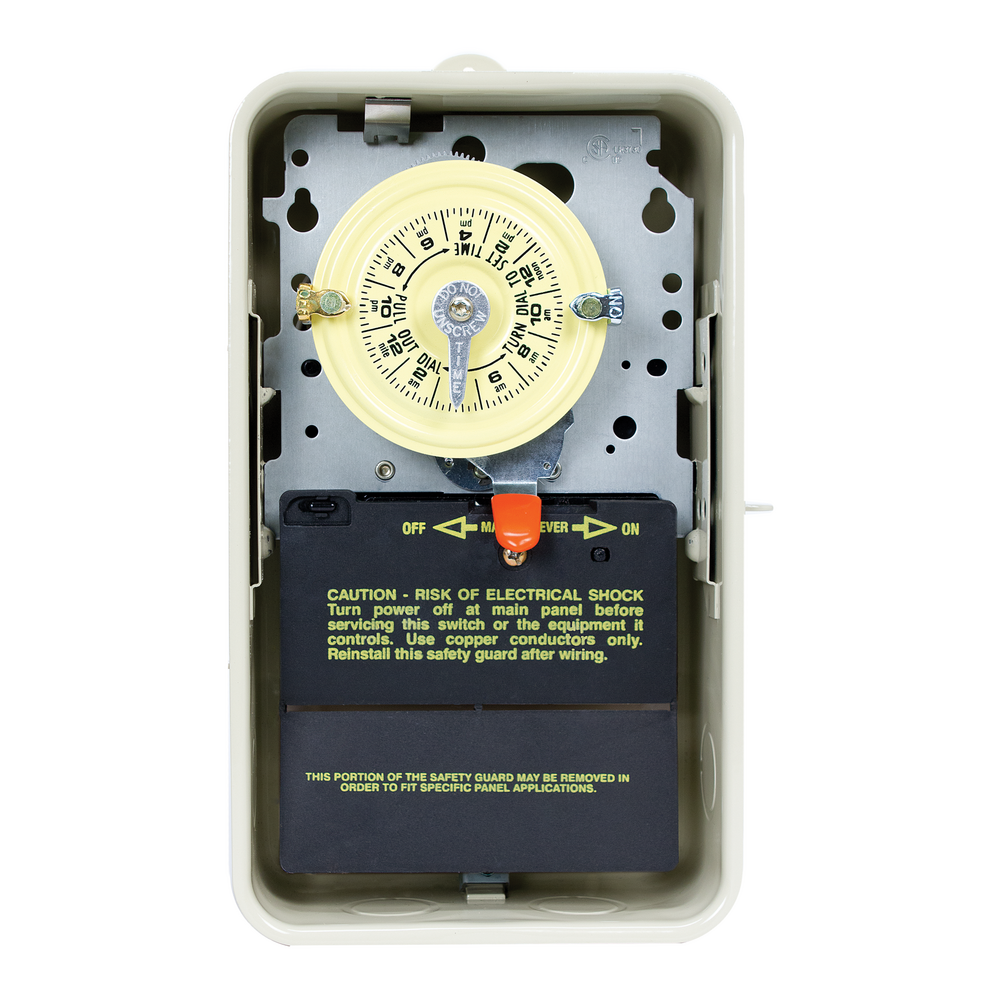

Intermatic T104R3, 24-Hour 208-277V Mechanical Time Switch, DPST, Type 3R Metal Enclosure
Regular price
$245.25
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Heavy-duty mechanical time switches control a single load
- Highest motor load ratings in the industry.
- 12 ON/OFF operations per day.
- One ON and one OFF tripper included.
- Available with pool heater protection.
-
Teeter-type terminals for multiple load connections.
| Model Number | T104R3 |
| Description | 24-Hour 208-277V Mechanical Time Switch, DPST, Type 3R Metal Enclosure |
| Color | Beige |
| Operation Mode | 24 hour |
| Application Compatibilities | LED |
| Enclosure Type | Outdoor type 3R metal |
| Pilot Duty (NO) Range(s) | 1000 VA, 120-277 VAC |
| Inductive Load Ratings NO Ranges | 40 A, 120-277 VAC |
| Motor Load Ratings NO Ranges | 2 HP, 24 FLA @ 120 VAC; 5 HP, 28 FLA @ 240 VAC |
| Resistive Heater | 40 A, 120-480 VAC |
| Electronic Ballast LED | 16 A, 120/277 VAC |
| Tungsten Incandescent Load Ratings NO Ranges | 40 A, 120-277 VAC |
| Heater Control Output | 10 A, 250 VAC MAX, 60 Hz |
| Wiring Option | Terminals |
| Input Voltage Range(s) | 208-277 VAC, 60 Hz |
| Number of Circuits | 2 |
| Switch Type | DPST |
| Maximum Power Consumption (W) | 3 W |
| Hz | 60 |
| Amperage | 40 A |
| Temperature (operation) | -40 °F to 130 °F / (-40 °C to 54 °C) |
| UL Certification | cULus |
| CSA Certification | cCSAus |
| RoHS Certification | N/A |
| Warranty Period | 1-Year limited |
