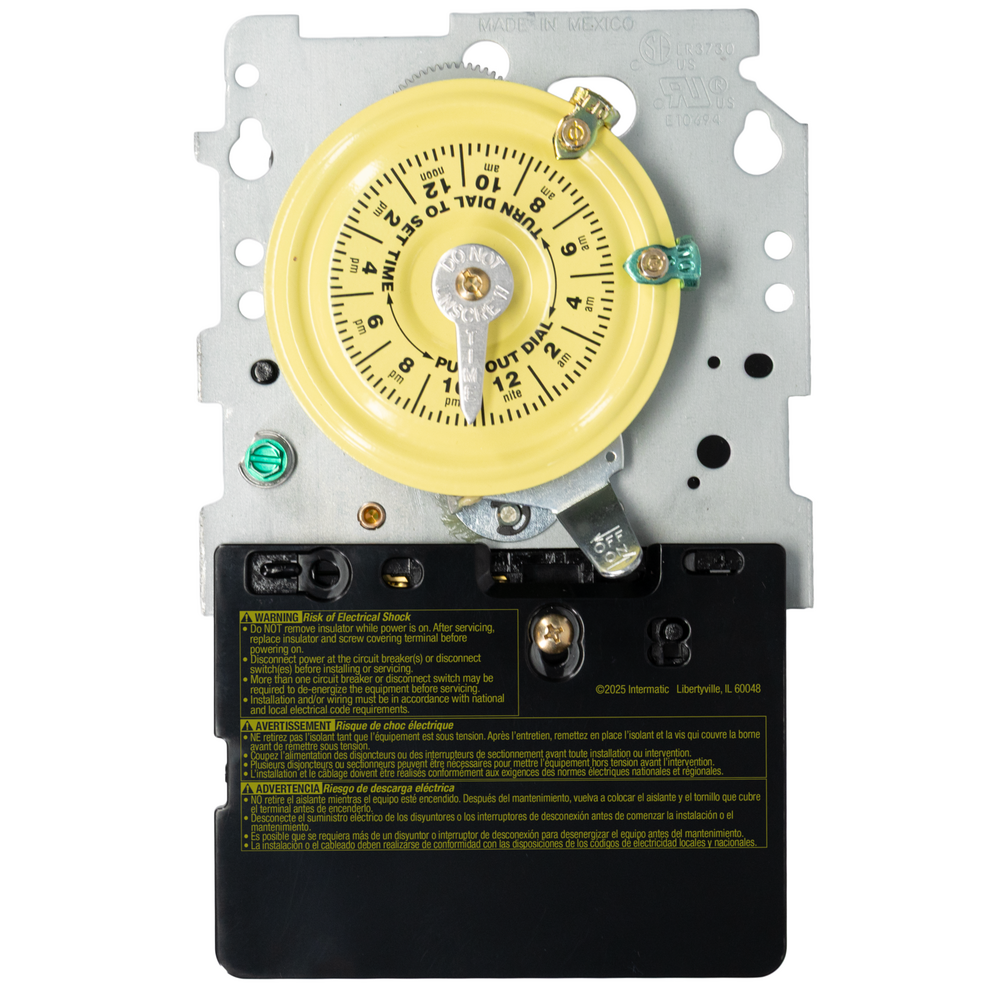

Intermatic T106M, 24-Hour Mechanical Time Switch, Mechanism Only, 208-277 VAC, 60Hz, SPDT
Regular price
$166.86
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The T100 Series Mechanical Time Switch has proven it can stand the test of time. These dependable time switches can handle electrical loads up to 40 A per pole and allow for up to 12 ON/OFF operations per day. A manual override switch provides added convenience.
- Highest motor load ratings in the industry.
- 12 ON/OFF operations per day.
- One ON and one OFF tripper included.
- Can be installed in most Intermatic enclosures.
- Available with pool heater protection.
- Teeter-type terminals for multiple load connections.
-
Can be installed in most Intermatic enclosures.
| Model Number | T106M |
| Description | 24-Hour 208-277V Mechanical Time Switch, SPDT, Mechanism Only |
| Color | Gray |
| Minimum ON/OFF Times | 1 hour |
| Skipper Wheel | Not Included |
| Has Manual Override | Yes |
| Application Compatibilities | LED; HID |
| Enclosure Type | N/A - Mechanism only |
| Number of Trippers Included | 1 ON/1 OFF |
| Resistive (NO) Range(s) | 40 A, 120-240 VAC |
| Pilot Duty (NO) Range(s) | 1000 VA, 120-240 VAC |
| Inductive Load Ratings NO Ranges | 40 A, 120-240 VAC |
| Electronic Ballast Load Ratings NO Ranges | 16 A, 208-277 VAC |
| Motor Load Ratings NO Ranges | 2 HP, 24 FLA @ 120 VAC; 5 HP, 28 FLA @ 240 VAC |
| Tungsten Incandescent Load Ratings NO Ranges | 40 A, 120-240 VAC |
| Heater Control Output | 10 A, 250 VAC MAX, 60 Hz |
| Input Voltage Range(s) | 208-277 VAC, 60 Hz |
| Number of Circuits | 1 |
| Switch Type | SPDT; 1 NO/1 NC |
| Maximum Power Consumption (W) | 3 W |
| Hz | 60 |
| Temperature (operation) | -40 °F to 130 °F / (-40 °C to 54 °C) |
| UL Certification | cULus |
| CSA Certification | cCSAus |
| RoHS Certification | N/A |
| Warranty Period | 1-Year limited |
