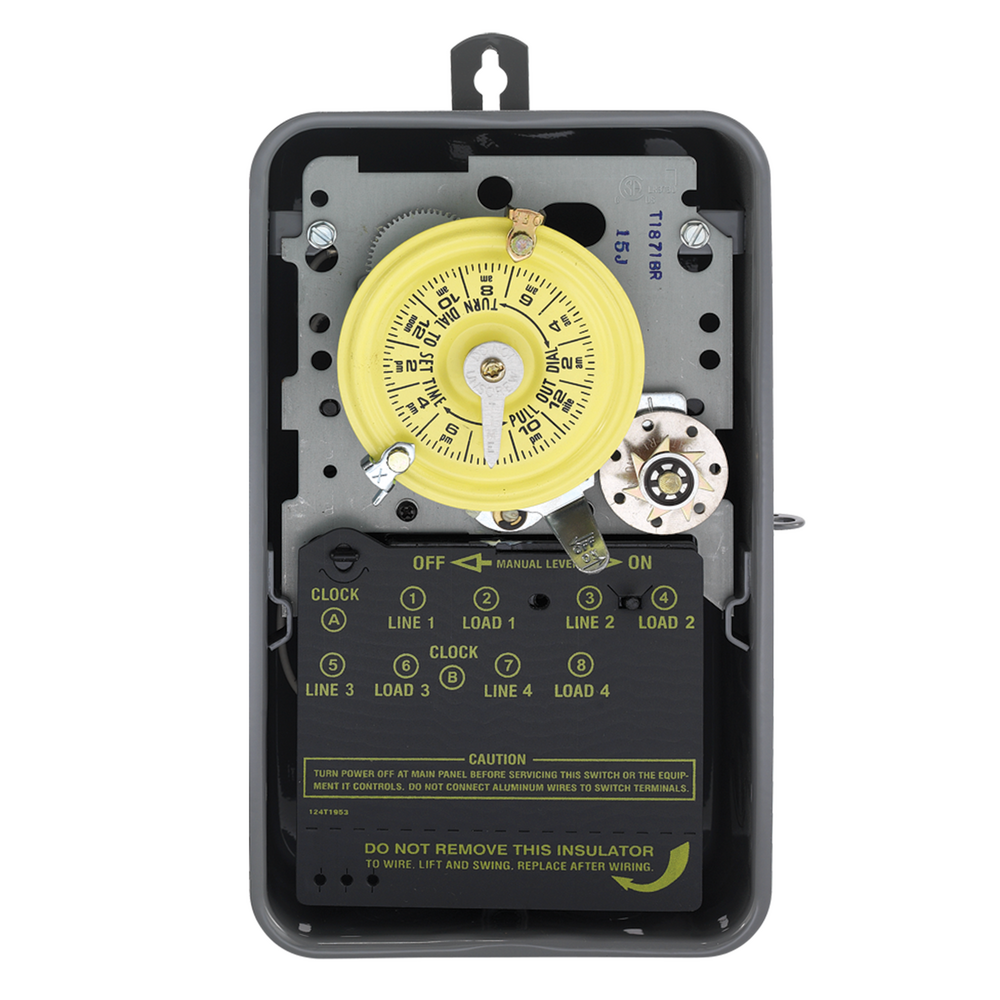

Intermatic T1871BR, 24-Hour Mechanical Time Switch with Skip-a-Day, 120 VAC, 60Hz, 2 NO/2 NC, Outdoor Metal Enclosure, 1 Hour Interval
Regular price
$587.65
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Similar to the T100 Series, these time switches can also handle electrical loads up to 40 A per pole. The T170 Series Time Switches allow for up to 10 ON/OFF settings per day, but give you the additional capability of skipping days in which the loads may not be needed. Each time switch will come with one set of ON/OFF trippers as well as three skipper screws to omit the schedule for at least three days.
- Controls loads up to 40 A per pole.
- Direct 24-hour control of most loads.
- Up to 10 ON/OFF operations each day.
- Minimum ON/OFF times of one hour.
- Manual override.
-
One ON and one OFF tripper and three day-skipper screws included.
| Model Number | T1871BR |
| Description | 24-Hour Mechanical Time Switch with Skip-a-Day, 120 VAC, 60Hz, 2 NO/2 NC, Outdoor Metal Enclosure, 1 Hour Interval |
| Color | Gray |
| Minimum ON/OFF Times | 1 hour |
| Skipper Wheel | 24 Hour |
| Operation Mode | 24 hour |
| Has Manual Override | Yes |
| Application Compatibilities | LED; HID |
| Enclosure Type | Outdoor type 3R metal |
| Motor Single Phase Ranges | 2 HP, 24 FLA @ 120 VAC, 60 Hz; 5 HP, 28 FLA @ 240 VAC, 60 Hz |
| Motor Three Phase Ranges | 7 1/2 HP, 28 FLA @ 208 VAC, 60 Hz; 10 HP, 28 FLA @ 240 VAC, 60 Hz |
| Resistive (NO) Range(s) | 40 A, 120-480 VAC |
| Pilot Duty (NO) Range(s) | 1000 VA, 120-277 VAC |
| Inductive Load Ratings NO Ranges | 40 A, 120-277 VAC |
| Electronic Ballast Load Ratings NO Ranges | 16 A, 277 VAC |
| Tungsten Incandescent Load Ratings NO Ranges | 40 A, 120-277 VAC |
| Wiring Option | Terminals |
| Input Voltage Range(s) | 120 VAC, 60 Hz |
| Number of Circuits | 2 |
| Switch Type | 2 NO/2 NC |
| Maximum Power Consumption (W) | 3 W |
| Hz | 60 |
| Temperature (operation) | -40 °F to 130 °F / (-40 °C to 54 °C) |
| UL Certification | cULus |
| CSA Certification | cCSAus |
| RoHS Certification | N/A |
| Warranty Period | 1-Year limited |
