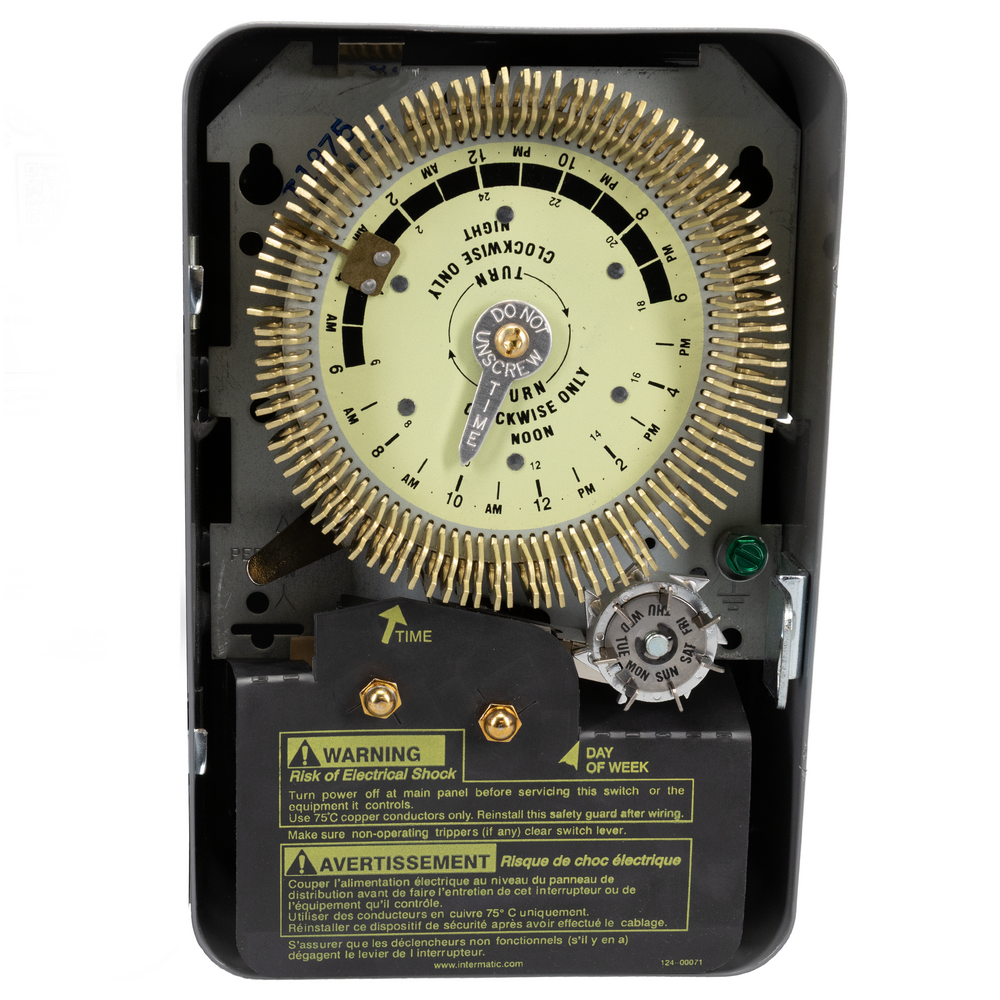

Intermatic T1975E, 24-Hour Mechanical Time Switch with Skip-a-Day, 480 VAC, 60Hz, SPDT, Indoor Metal Enclosure, 15 Minute Interval
Regular price
$666.92
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
This series of mechanical time switches offers more flexible scheduling capabilities by offering 15-minute intervals. These units also come with trippers that slide in or out easily for fast and accurate settings. All units can control up to 20 A of electrical load and have a single pole, double throw switch.
- Provides up to 96 operations (48 ON/48 OFF) every 24 hours.
- Models with skipper wheel allow for operations to be omitted on selected days of the week.
- 15-minute intervals.
-
Captive trippers slide in and out of dial for fast, accurate setting.
| Model Number | T1975E |
| Description | 24-Hour Mechanical Time Switch with Skip-a-Day, 480 VAC, 60Hz, SPDT, Indoor Metal Enclosure, 15 Minute Interval |
| Color | Gray |
| Minimum ON/OFF Times | 15 min |
| Skipper Wheel | 24 Hour |
| Operation Mode | 24 hour |
| Has Manual Override | Yes |
| Enclosure Type | Indoor type 1 metal |
| Resistive (NO) Range(s) | 20 A, 125-480 VAC |
| Motor Load Ratings NO Ranges | 1/2 HP @ 125 VAC; 1 HP @ 250 VAC |
| Wiring Option | Terminals |
| Input Voltage Range(s) | 480 VAC, 60 Hz |
| Number of Circuits | 1 |
| Switch Type | SPDT |
| Maximum Power Consumption (W) | 3 W |
| Hz | 60 |
| Amperage | 20 A |
| Temperature (operation) | -40 °F to 130 °F / (-40 °C to 54 °C) |
| CSA Certification | cCSAus |
| RoHS Certification | N/A |
| Warranty Period | 1-Year limited |
