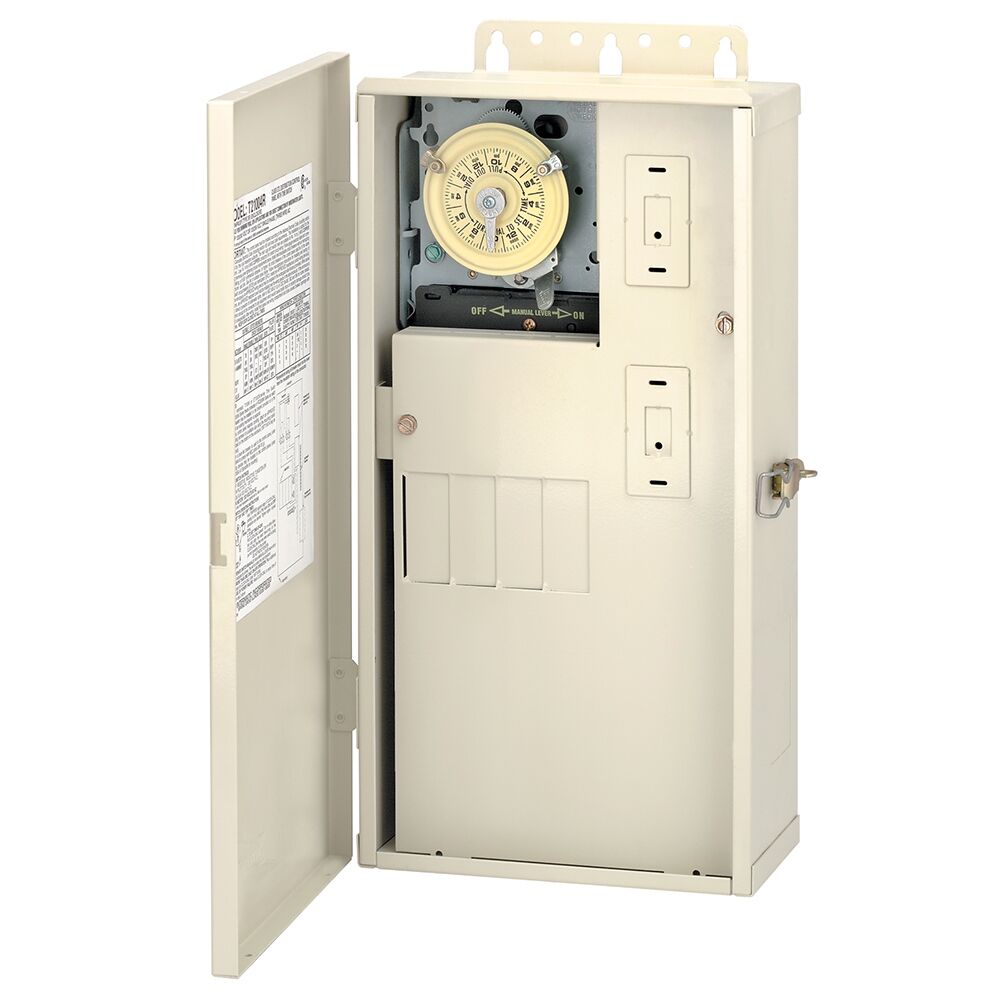

Intermatic T21001R, 60 A load center with 4 breaker spaces
Regular price
$335.23
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
This system can be used as a load center only, or add a heavy-duty mechanical time switch or wiring devices for a complete system.
- Four breaker spaces.
- Accepts PF1000M, P1403ME, P1353ME, P4043ME, P4243ME,T100M or RC2000M Series mechanisms.
- Accepts many interchangeable type breakers.
- Load center dead front has two knockouts for switches or GFCIs and one on the side.
-
Wiring devices may be installed in these Load Centers with the use of Standoffs, sold separately.
| Model Number | T21001R |
| Description | 60 A load center with 4 breaker spaces |
| Color | Beige |
| Enclosure Type | 3R Beige metal |
| Number of Receptacle/Switch Knockouts | 3 |
| Load Center Ratings | 60 A, 120-208 VAC, 60 Hz;60 A, 240 VAC, 60 Hz, Single Phase |
| Resistive (NO) Range(s) | 40 A, 120-240 VAC |
| Pilot Duty (NO) Range(s) | 1000 VA, 120-240 VAC |
| Inductive Load Ratings NO Ranges | 40 A, 120-240 VAC |
| Load Center Rating Display | 60 A, 120/240 VAC or 120/208 VAC, Single Phase |
| Mechanism Supply Voltage | 120 VAC, 60 Hz |
| Mechanisms | T101M |
| Motor Load Ratings NO Ranges | 2 HP, 24 FLA @ 120 VAC; 5 HP, 28 FLA @ 240 VAC |
| Tungsten Incandescent Load Ratings NO Ranges | 40 A, 120-240 VAC |
| Number of Circuits | 1 |
| Switch Type | SPST |
| Maximum Power Consumption (W) | 3 W |
| Temperature (operation) | -40 °F to 130 °F / (-40 °C to 54 °C) |
| CSA Certification | cCSAus |
| RoHS Certification | N/A |
| Warranty Period | 1-Year limited |
