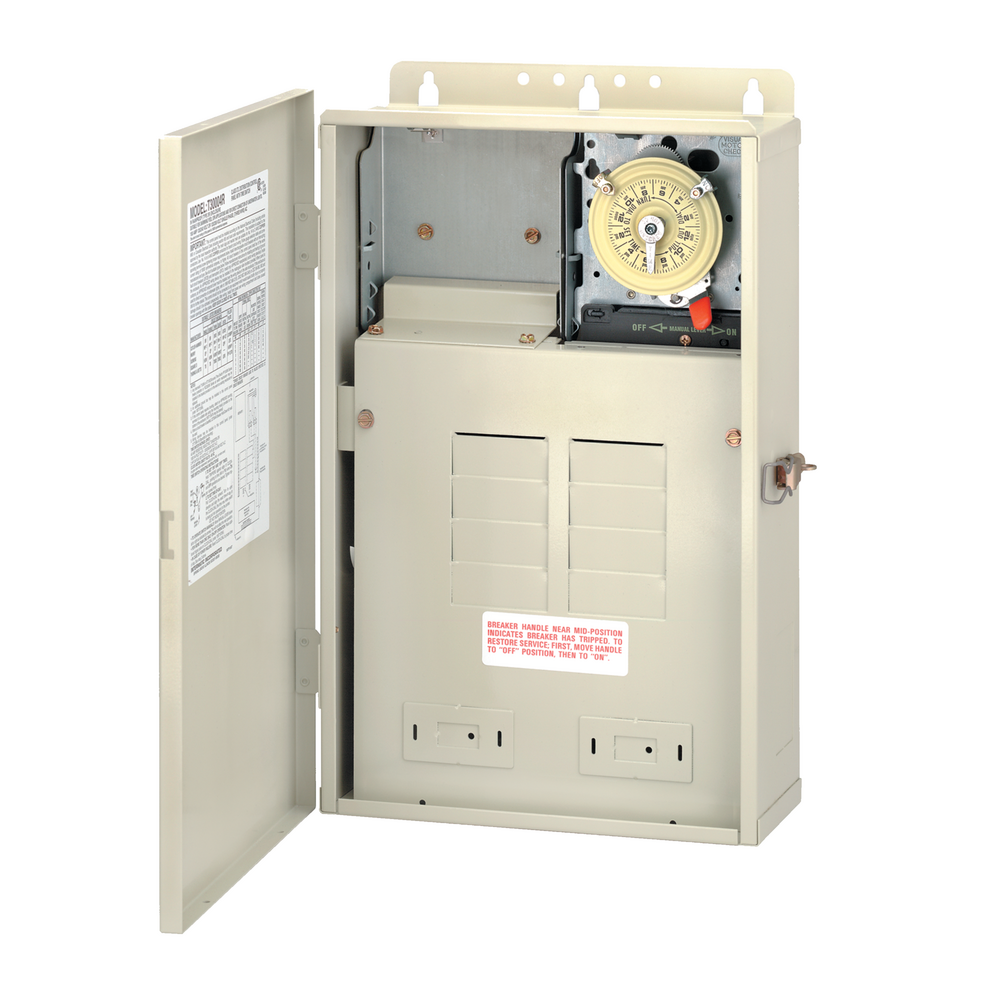

Intermatic T30004R, 100 A Load Center with T104M Mechanism, 8-Breaker Spaces
Regular price
$469.42
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Can be used as a load center only, or add mechanisms or wiring devices for complete control systems.
- Eight breaker spaces.
- Reduces installation costs.
- Eliminates the need for additional service panels.
- Fits most of our hard-wired T100 mechanical and PE digital timers.
- Control two-speed pumps with the T30604R.
- Fully compatible with all electrical requirements for pool/spa installations.
- Load center dead front has two knockouts and one on the side for switches or GFCIs.
-
Wiring devices may be installed in these load centers with the use of Standoffs, sold separately.
| Model Number | T30004R |
| Description | 100 A Load Center with T104M Mechanism, 8-Breaker Spaces |
| Color | Beige |
| Enclosure Type | 3R Beige metal |
| Number of Receptacle/Switch Knockouts | 3 |
| Load Center Ratings | 100 A, 120-208 VAC, 60 Hz;100 A, 240 VAC, 60 Hz, Single Phase |
| Resistive (NO) Range(s) | 40 A, 120-240 VAC |
| Pilot Duty (NO) Range(s) | 1000 VA, 120-240 VAC |
| Inductive Load Ratings NO Ranges | 40 A, 120-240 VAC |
| Load Center Rating Display | 100 A, 120-240 VAC, Single Phase, 60 Hz |
| Mechanism Supply Voltage | 240 VAC, 60 Hz |
| Mechanisms | (1) T104M |
| Motor Load Ratings NO Ranges | 2 HP, 24 FLA @ 120 VAC; 5 HP, 28 FLA @ 240 VAC |
| Tungsten Incandescent Load Ratings NO Ranges | 40 A, 120-240 VAC |
| Number of Circuits | 1 |
| Switch Type | DPST |
| Maximum Power Consumption (W) | 3 W |
| Temperature (operation) | -40 °F to 130 °F / (-40 °C to 54 °C) |
| CSA Certification | cCSAus |
| RoHS Certification | N/A |
| Warranty Period | 1-Year limited |
