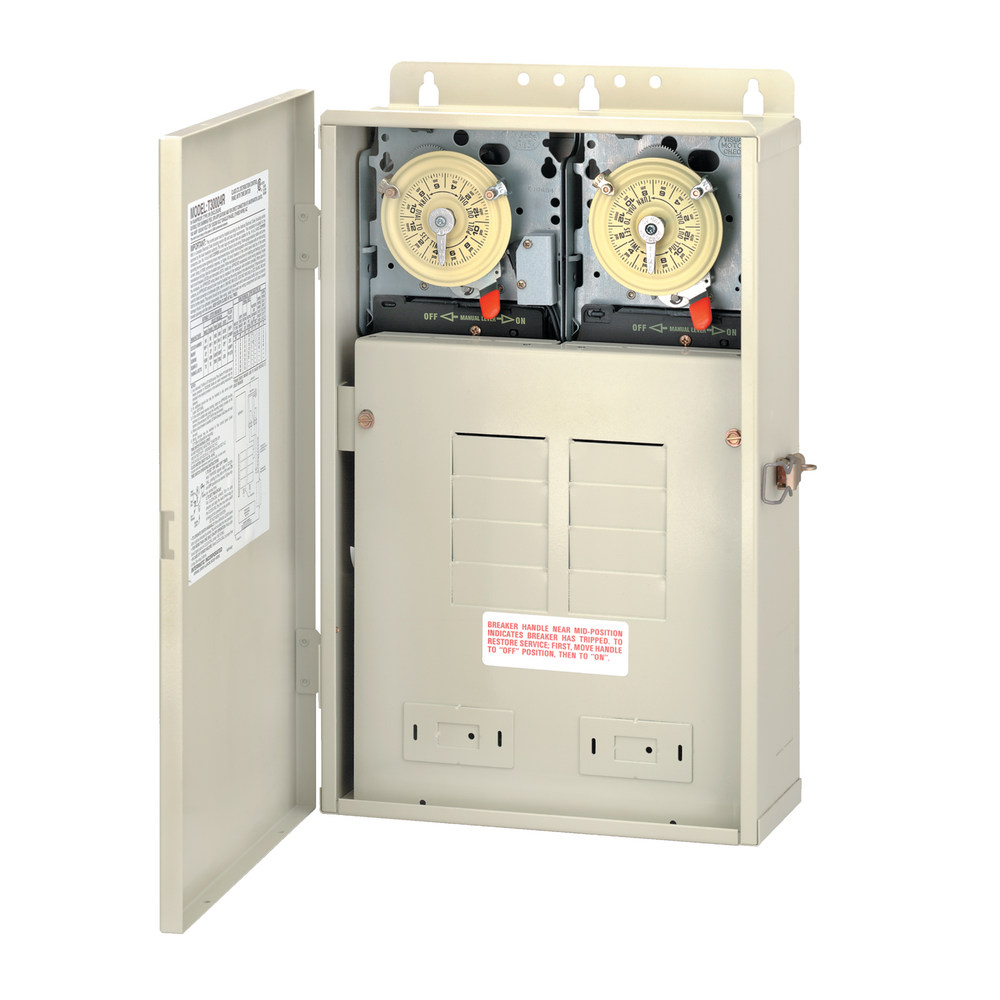

Intermatic T32404R, 100 A Load Center with T104M201 & T104M Mechanisms, 8-Breaker Spaces

In stock
SKU: T32404R
$577.57
Rated voltage
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.

Use this text to encourage communication or promote sharing on social networks.

You can also add links

Can be used as a load center only, or add mechanisms or wiring devices for complete control systems.

  • Eight breaker spaces.
  • Reduces installation costs.
  • Eliminates the need for additional service panels.
  • Fits most of our hard-wired T100 mechanical and PE digital timers.
  • Control two-speed pumps with the T30604R.
  • Fully compatible with all electrical requirements for pool/spa installations.
  • Load center dead front has two knockouts and one on the side for switches or GFCIs.
  • Wiring devices may be installed in these load centers with the use of Standoffs, sold separately.
Model Number T32404R
Description 100 A Load Center with T104M201 & T104M Mechanisms, 8-Breaker Spaces
Color Beige
Enclosure Type 3R Beige metal
Load Center Ratings 100 A, 120-208 VAC, 60 Hz;100 A, 240 VAC, 60 Hz, Single Phase
Resistive (NO) Range(s) 40 A, 120-240 VAC
Pilot Duty (NO) Range(s) 1000 VA, 120-240 VAC
Inductive Load Ratings NO Ranges  40 A, 120-240 VAC
Load Center Rating Display  100 A, 120-240 VAC, Single Phase, 60 Hz
Mechanism Supply Voltage 240/240 VAC, 60 Hz
Mechanisms T104M201 & T104M
Motor Load Ratings NO Ranges 2 HP, 24 FLA @ 120 VAC; 5 HP, 28 FLA @ 240 VAC
Tungsten Incandescent Load Ratings NO Ranges 40 A, 120-240 VAC
Number of Circuits 2
Switch Type DPST/DPST
Maximum Power Consumption (W) 3 W
Temperature (operation) -40 °F to 130 °F / (-40 °C to 54 °C)
CSA Certification cCSAus
RoHS Certification N/A
Warranty Period 1-Year limited
