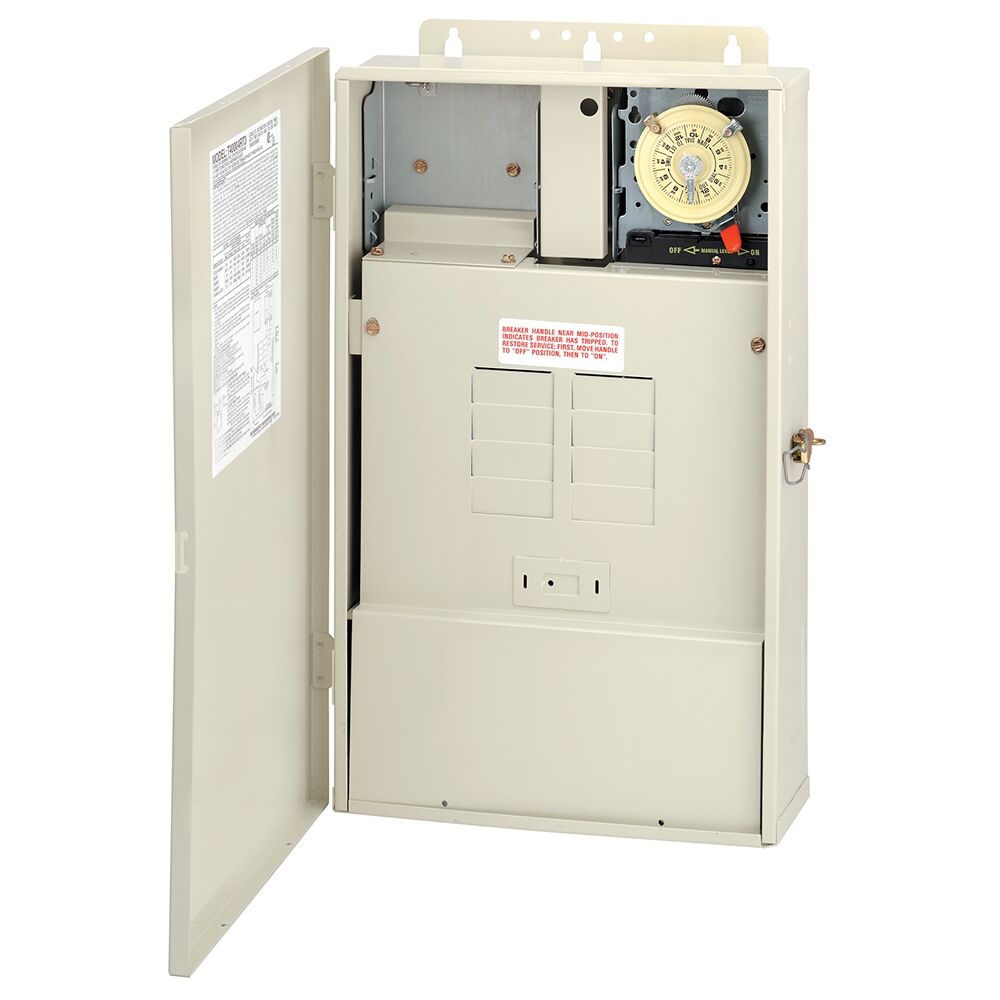

Intermatic T40004RT1, 100 A Load Center with 100 W Transformer and T104M Mechanism, 8-Breaker Spaces
Regular price
$597.69
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
These mechanical control systems include built-in transformers for ease of installation.
- Load Centers have eight breaker spaces.
- All-in-one control power for pool/spa installation.
- Easy to wire.
- Can house additional Intermatic mechanisms and components.
- Control two-speed pumps with the T40604RT3.
- Heavy-duty Type 3R metal indoor/outdoor power and load center.
- Wiring devices may be installed in these Load Centers with the use of Standoffs, sold separately.
-
Knockout on the side for additional wiring device.
| Model Number | T40004RT1 |
| Description | 100 A Load Center with 100 W Transformer and T104M Mechanism, 8-Breaker Spaces |
| Color | Beige |
| Enclosure Type | 3R Beige metal |
| Tungsten Range(s) | 40 A, 120-240 VAC, 60 Hz |
| Inductive | 40 A, 240 VAC, 60 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 120 VAC, 60 Hz |
| Load Center Ratings | 100 A, 120-208 VAC, 60 Hz;100 A, 240 VAC, 60 Hz, Single Phase |
| Resistive Load Ratings Ranges | 40 A, 120-240 VAC, 60 Hz |
| Inductive Load Ratings Ranges | 40 A, 120-240 VAC, 60 Hz |
| Pilot Duty Load Ratings Ranges | 1000 VA, 120-240 VAC, 60 Hz |
| Load Center Rating Display | 100 A, 120-240 VAC, Single Phase, 60 Hz |
| Mechanism Supply Voltage | 240 VAC, 60 Hz |
| Motor Load Ratings Ranges | 2 HP, 24 FLA @ 120 VAC, 60 Hz; 5 HP, 28 FLA @ 240 VAC, 60 Hz |
| Number of Circuits | 1 |
| Switch Type | DPST |
| Maximum Power Consumption (W) | 3 W |
| Transformer (W) | 100 |
| Transformer Input Voltage | 1 A, 120 VAC, 60 Hz |
| Transformer Output Voltage | 12, 13, 14 VAC |
| Number of Receptacle/Switch Knockouts | 1 |
| Temperature (operation) | -40 °F to 130 °F / (-40 °C to 54 °C) |
| CSA Certification | cCSAus |
| RoHS Certification | N/A |
| Warranty Period | 1-Year limited |
