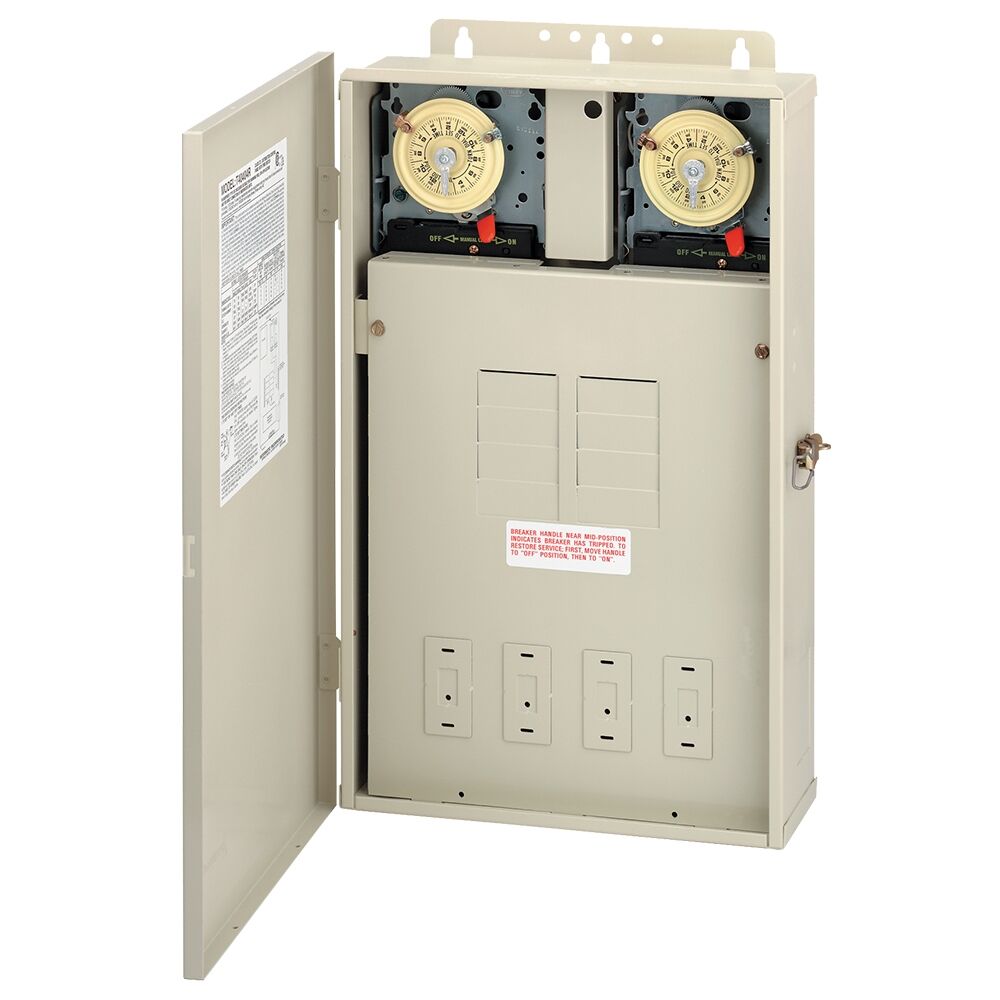

Intermatic T40404R, 125 A Load Center with Two T104M Mechanisms, 8-Breaker Spaces
Regular price
$562.12
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Can be used as a Load Center only, or add mechanisms or wiring devices for complete control systems.
- Eight breaker spaces.
- Reduces installation costs.
- All-in-one electrical load center eliminates the need for additional service panels.
- Accepts any combination of PF1000M Series, P1403ME, P1353ME, P4043ME, P4243ME, T100M Series or RC2000M Series mechanisms.
- Fully compatible with all electrical requirements for pool/spa installations.
- Load center dead front has four knockouts for switches or GFCIs (Note: T40000R4 has one knockout).
-
Wiring devices may be installed in these Load Centers with the use of Standoffs, sold separately.
| Model Number | T40404R |
| Description | 125 A Load Center with Two T104M Mechanisms, 8-Breaker Spaces |
| Color | Beige |
| Enclosure Type | 3R Beige metal |
| Tungsten Range(s) | 40 A, 120-240 VAC, 60 Hz |
| Inductive | 40 A, 240 VAC, 60 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 120 VAC, 60 Hz |
| Load Center Ratings | 125 A, 120-208 VAC, 60 Hz;125 A, 240 VAC, 60 Hz, Single Phase |
| Resistive Load Ratings Ranges | 40 A, 120-240 VAC, 60 Hz |
| Inductive Load Ratings Ranges | 40 A, 120-240 VAC, 60 Hz |
| Pilot Duty Load Ratings Ranges | 1000 VA, 120-240 VAC, 60 Hz |
| Load Center Rating Display | 125 A MAX, 120-240 VAC, Single Phase, 60 Hz |
| Mechanism Supply Voltage | 240 VAC, 60 Hz |
| Mechanisms | (2) T104M |
| Motor Load Ratings Ranges | 2 HP, 24 FLA @ 120 VAC, 60 Hz; 5 HP, 28 FLA @ 240 VAC, 60 Hz |
| Number of Circuits | 2 |
| Switch Type | DPST |
| Maximum Power Consumption (W) | 3 W |
| Number of Receptacle/Switch Knockouts | 4 |
| Temperature (operation) | -40 °F to 130 °F / (-40 °C to 54 °C) |
| CSA Certification | cCSAus |
| RoHS Certification | N/A |
| Warranty Period | 1-Year limited |
