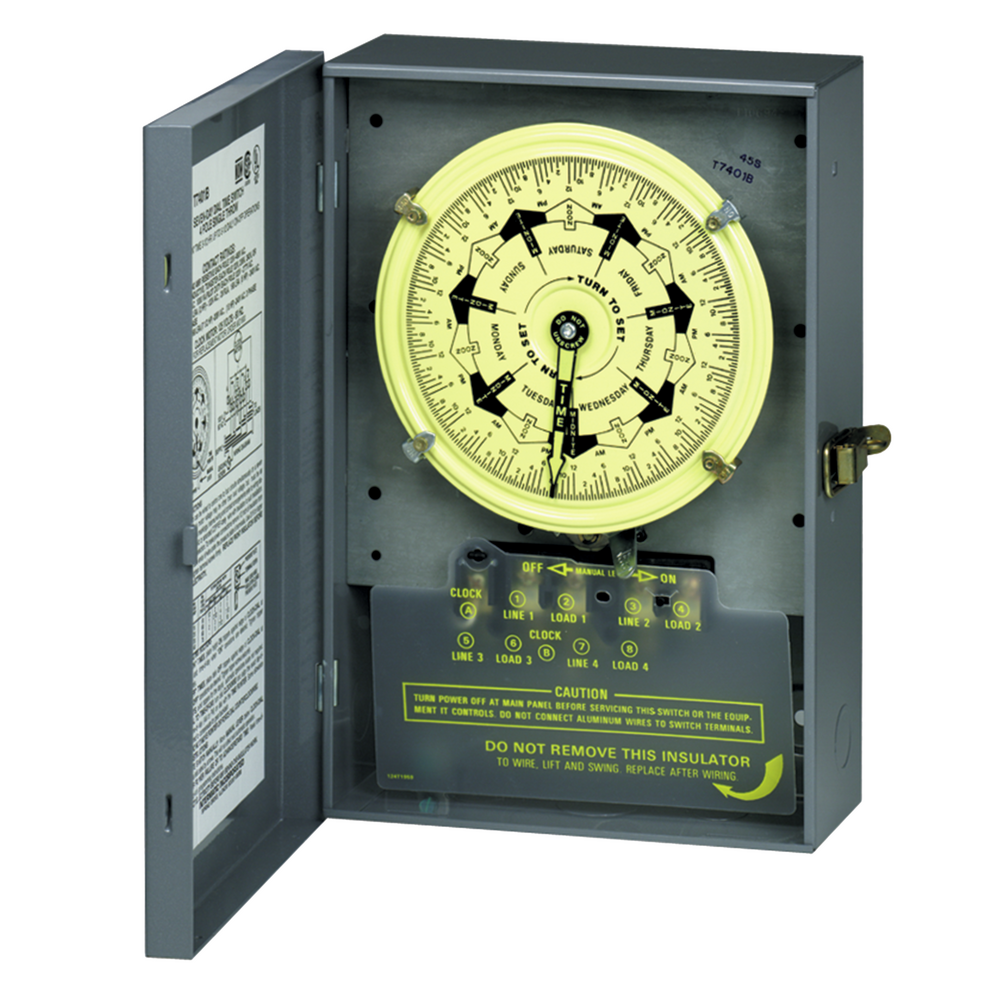

Intermatic T7801BC, 7-Day Mechanical Time Switch, 120 VAC, 60Hz, 2 NO/2 NC, Indoor Metal Enclosure, 3.5 Hour Interval
Regular price
$1,598.51
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
These 7-Day Mechanical Time Switches offer the capability of having a different schedule for each day of the week. They can handle up to 40 A of electrical loads per circuit and have separate terminals for powering the clock motor. These time switches can handle up to four loads per clock, providing a single control for easier installation. Each time switch comes with 7 ON and 7 OFF trippers, allowing for at least one ON/OFF operation each day.
- Different ON/OFF programs each day of the week.
- True 7-day load control with minimum ON/OFF time of 3 1⁄2 hours.
- Separate clock motor terminals for switching loads not on line voltage.
- Carry-over automatically rewinds when power resumes.
- Minimum of 16-hour carry-over for maintaining preset schedules during power failures.
-
Available with Type 1 rated indoor metal in gray finish with separate grounding terminal.
| Model Number | T7801BC |
| Description | 7-Day Mechanical Time Switch, 120 VAC, 60Hz, 2 NO/2 NC, Indoor Metal Enclosure, 3.5 Hour Interval |
| Color | Gray |
| Minimum ON/OFF Times | 3.5 hours |
| Skipper Wheel | Not Included |
| Operation Mode | 7 day |
| Backup Restoration Time | 1 Hour for Every 2 Hours Without Power |
| Backup Type | Spring Wound Carry-over |
| Backup Protection Time | 16 Hours |
| Has Manual Override | Yes |
| Application Compatibilities | LED; HID |
| Enclosure Type | Indoor type 1 metal |
| Resistive (NO) Range(s) | 40 A, 120-480 VAC |
| Pilot Duty (NO) Range(s) | 1000 VA, 120-277 VAC, Per Pole |
| Inductive Load Ratings NO Ranges | 40 A, 120-277 VAC |
| Electronic Ballast Load Ratings NO Ranges | 16 A, 277 VAC |
| Motor Load Ratings NO Ranges | 2 HP, 24 FLA @ 120 VAC; 5 HP, 28 FLA @ 240 VAC |
| Tungsten Incandescent Load Ratings NO Ranges | 40 A, 120-277 VAC |
| Wiring Option | Terminals |
| Input Voltage Range(s) | 120 VAC, 60 Hz |
| Number of Circuits | 2 |
| Switch Type | 2 NO/2 NC |
| Maximum Power Consumption (W) | 3 W |
| Hz | 60 |
| Temperature (operation) | -40 °F to 130 °F / (-40 °C to 54 °C) |
| UL Certification | cULus |
| CSA Certification | cCSAus |
| RoHS Certification | N/A |
| Warranty Period | 1-Year limited |
