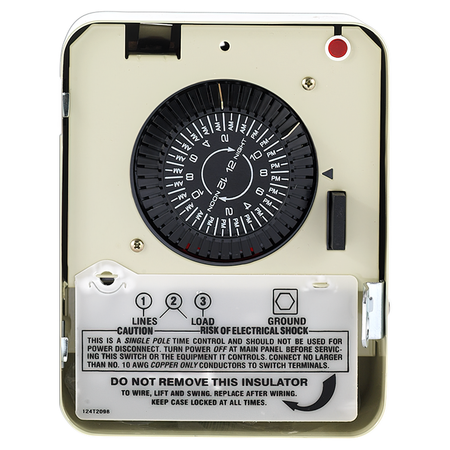

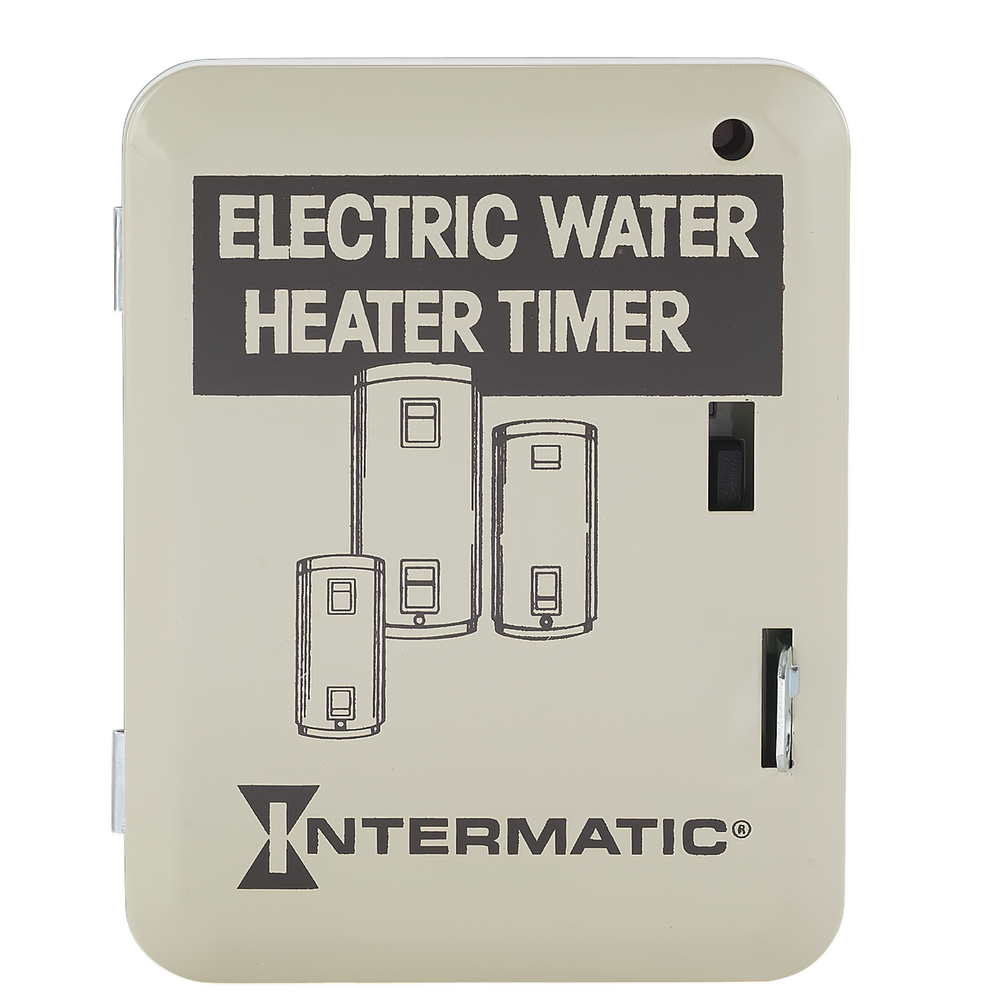

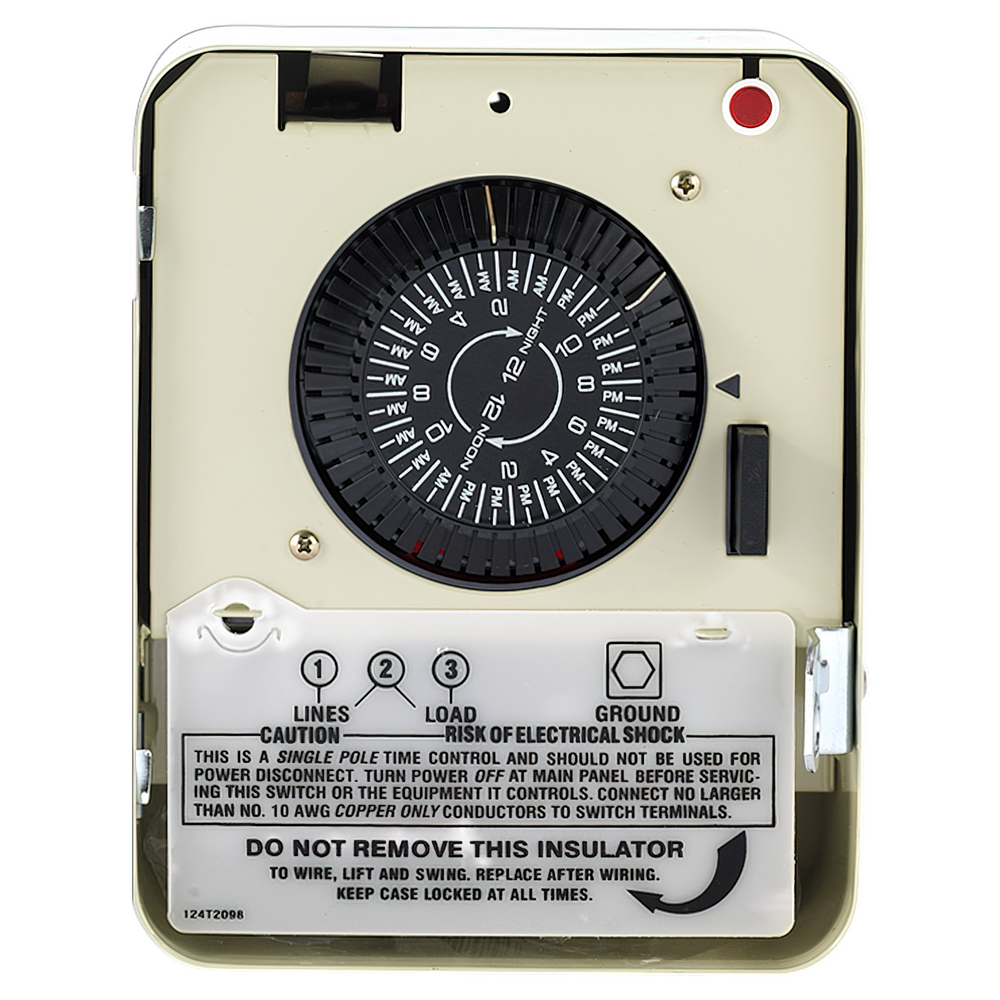

Intermatic WH21, Electric Water Heater timer, 208-250VAC, 60Hz, SPST, 25A

In stock
SKU: WH21
$148.88
Voltage range
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.

Use this text to encourage communication or promote sharing on social networks.

You can also add links

With the easy-to-set push pin style levers, these time switches allow for basic control of electric water heaters. These time switches offer a minimum ON/OFF time of 30 minutes, and are available for 208-250 VAC applications. With the proven reliability of our mechanical line, these time switches provide dependable electric water heater control.

  • Two sets of ON/OFF trippers.
  • Enables shifting electricity use into off-peak hours to reduce energy costs.
  • Convenient external override switch.
  • Up to 12 ON/12 OFF events.
  • 30-minute switching time.
  • External override push button.
  • SPST (Single-Pole Single-Throw).
  • 25 A resistive load, 208-250 VAC, 60 HZ.
  • #14-10 gauge wire size.
Model Number WH21
Description Electric Water Heater timer, 208-250VAC, 60Hz, SPST, 25A
Color Gray
Minimum ON/OFF Times 30 min
Maximum ON/OFF Times 2 hours
Operation Mode 24 hour
Mechanism Type Analog/Mechanical
Has Manual Override Yes
Has Override Switch Yes
Application Compatibilities Electric Water Heater
Enclosure Type Indoor type 1 metal
Number of Trippers Included 1 ON/1 OFF
Resistive (NO) Range(s)  21 A Max, 208-250 VAC
Clock Motor Voltage 208-250 VAC, 60 Hz
Wiring Option Terminals
Input Voltage Range(s) 208-250 VAC, 60 Hz
Switch Type  SPST
Watts 6250
Hz 60
Amperage 25 A
Temperature (operation) -40 °F to 130 °F / (-40 °C to 54 °C)
UL Certification cULus
RoHS Certification N/A
Warranty Period 1-Year limited
