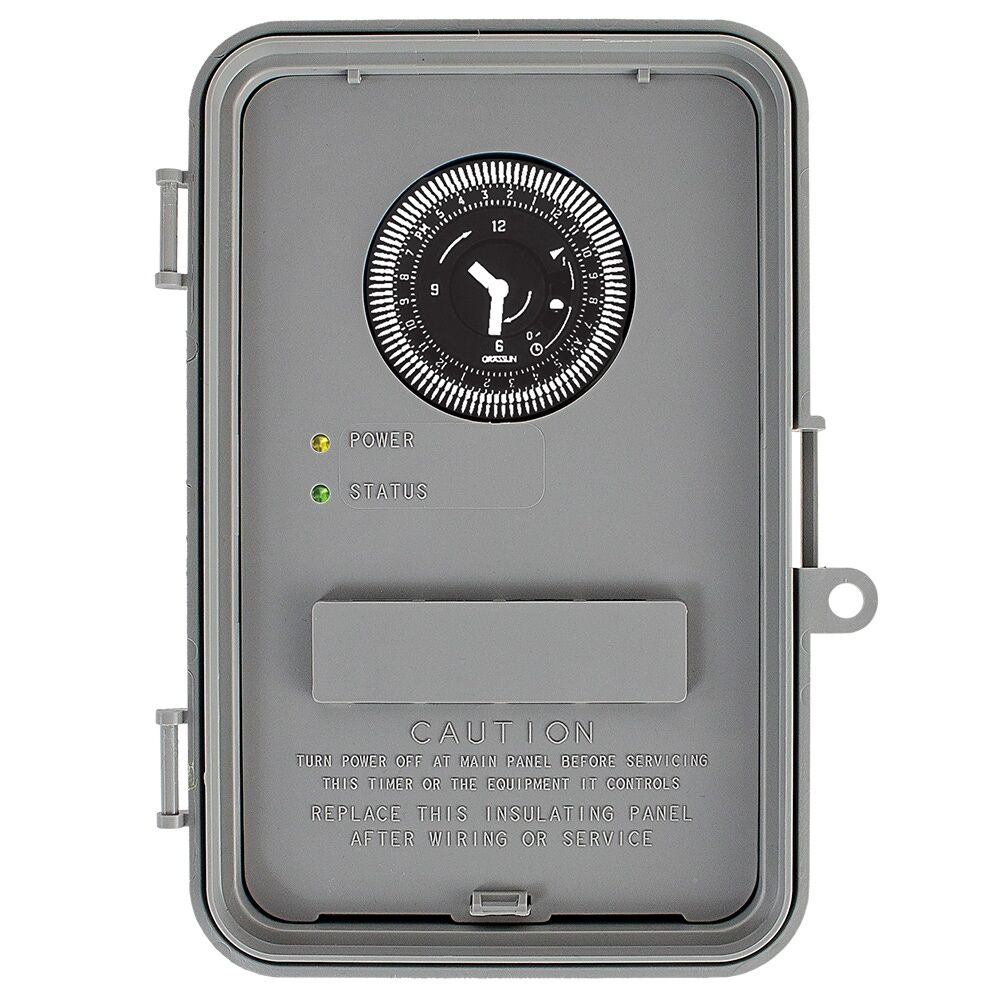

Intermatic WHAVQ4, 24 Hour 120-240V Water Heater Timer with Battery Backup and Auto-voltage, 40A SPDT/DPDT, Type 3R Indoor/Outdoor Plastic Enclosure
Regular price
$189.41
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
WHAVQ Series Water Heater Timers are designed for control of residential or commercial electric water heaters up to 10,000 Watts capacity running at 240 VAC. The unit is mounted in a UL Type 3R Outdoor enclosure and can be placed in basements or mechanical rooms.
- 40 A rating.
- Self-recharging battery backup with 7-day carry-over.
- Captive trippers - cannot be lost.
- 24-hour or 7-day models available.
- Three-way ON/OFF/AUTO manual override.
- Power and status LED indicators.
- Rainproof UL Type 3R enclosure.
- Saves energy by shutting water heaters OFF during "off peak periods".
- Auto-voltage selection 120-240 VAC.
-
Easy-to-read clock face.
| Model Number | WHAVQ4 |
| Description | 24 Hour 120-240V Water Heater Timer with Battery Backup and Auto-voltage, 40A SPDT/DPDT, Type 3R Indoor/Outdoor Plastic Enclosure |
| Color | Gray |
| Operation Mode | 24 hour |
| Backup Type | 72-hour Carry-over; Battery; Self-recharging |
| Backup Protection Time | 72 Hours |
| Battery Service Type | Non-Replaceable |
| Mechanism Type | Analog/Mechanical |
| Has Captive Trippers | Yes |
| Has Override Switch | Yes |
| Has Real-time Clock Face | Yes |
| Enclosure Type | Indoor/outdoor type 3R plastic |
| Resistive (NO) Range(s) | 40 A, 250 VAC, 10,000 W |
| Resistive (NC) Range(s) | 30 A, 250 VAC, 7500 W |
| Switch Rating For NO | 40 A Resistive, 250 VAC, 10,000 W |
| Switch Rating For NC | 30 A Resistive, 250 VAC, 7500 W |
| Motor Load (NC) Range(s) | 1 HP, 12 FLA, 30 LRA @ 120 VAC; 2 HP, 10 FLA, 30 LRA @ 240 VAC |
| Motor Load (NO) Range(s) | 1 HP, 16 FLA, 90 LRA @120 VAC; 2 HP, 12 FLA, 52 LRA @ 208-277 VAC |
| Tungsten Incandescent (NC) Range(s) | 2 A, 120 VAC |
| Tungsten Incandescent (NO) Range(s) | 15 A, 120 VAC |
| Voltage Selection Type | Auto-Voltage |
| Wiring Option | Screw box lug |
| Input Voltage Range(s) | 120-240 VAC, 50/60 Hz |
| Switch Type | 40 A, DPDT |
| Switch Configuration | DPDT (2 NO and 2 NC contacts) |
| Electrical Life | 50,000 operations at full load |
| Temperature (operation) | -4 °F to 104 °F / (-20 °C to 40 °C) |
| UL Certification | cULus |
| RoHS Certification | Y |
| Warranty Period | 1-Year limited |
