Intermatic WP5225C, Extra-Duty Plastic In-Use Weatherproof Cover, Double-Gang, Vrt, 2.75" Clear

In stock
SKU: WP5225C
$31.21
Colour
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.

Use this text to encourage communication or promote sharing on social networks.

You can also add links

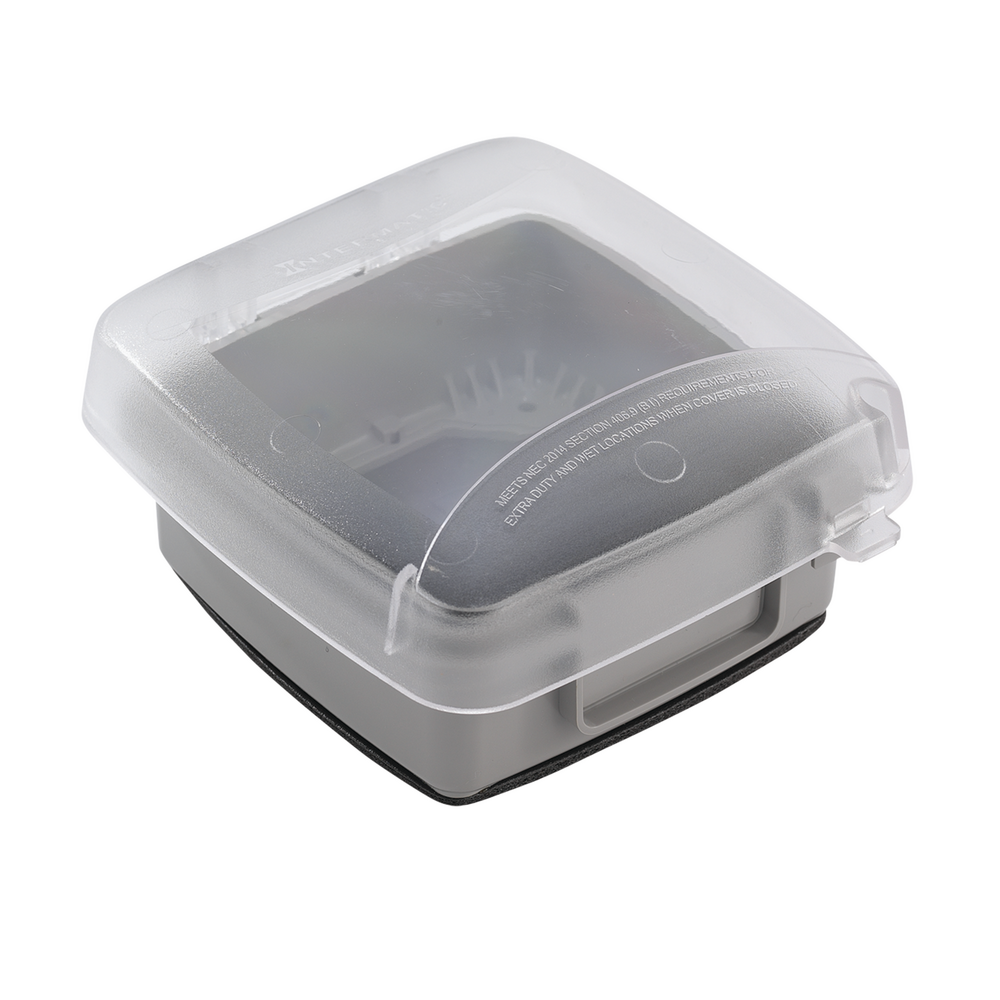

The WP5225C Extra-Duty In-Use Weatherproof Cover provides dependable outdoor protection for double-gang receptacle installations in wet locations. Constructed from heavy-duty, UV-stabilized polycarbonate, this clear vertical cover features a reinforced hinge pin, pre-adhered neoprene gasket, and lockable hasp for added durability, protection, and security. Its versatile design accommodates multiple receptacle configurations while providing 2.75 inches of depth for connected cords and plugs. UL Certified for Type 3R outdoor enclosures and compliant with 2020 NEC Article 406.9(B)(1), the WP5225C delivers a durable, code-compliant solution for residential, commercial, and other outdoor electrical applications.

  • Complies with 2020 NEC Article 406.9 (B)(1) for wet locations and extra-duty applications.
  • CEC Article 26-702 Compliant.
  • UL Certified for Type 3R outdoor enclosures.
  • Meets requirements for cold impact testing: -60° F (-51° C).
  • Heavy-duty UV stabilized polycarbonate cover, mounting base and inserts.
  • 1⁄8" (3 mm) thick, pre-adhered neoprene gasket with slits for mounting screws.
  • Lockable hasp: All models accept up to 1⁄4" (6 mm) dia. shank.
  • Impact rated: 12 lb. impact test to ensure cover remains intact.
  • Reinforced hinge pin designed to exceed 40 lb. hinge hang/stress test.
  • Warranty: 1-year limited.
Model Number WP5225C
Description Extra-Duty Plastic In-Use Weatherproof Cover, Double-Gang, Vrt, 2.75" Clear
Color Clear, Gray
Number of Included Inserts 6
Hinge Direction Vertical
Box Type  Double
Weatherproof Cover Material UV Stabilized Plastic
UL Certification cULus
RoHS Certification N/A
Warranty Period 1-Year limited
