Home » Inventronics EUM-240S670DT, Programmable LED Driver, Input 90-305Vac/ 127-300Vdc , Output 240W Max, 420-6700mA, 18-57 Vdc, Dimmable, IP67
 Inventronics

Inventronics EUM-240S670DT, Programmable LED Driver, Input 90-305Vac/ 127-300Vdc , Output 240W Max, 420-6700mA, 18-57 Vdc, Dimmable, IP67

In stock
SKU: EUM-240S670DT
$98.80
Rated voltage
Power

Use this text to encourage communication or promote sharing on social networks.

You can also add links

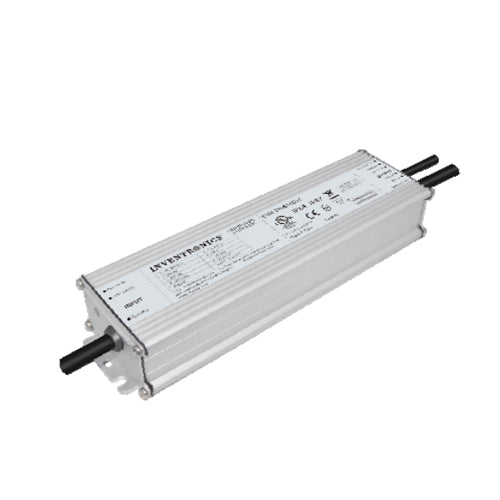

The EUM-240SxxxDT series is a 240W, constant-current, programmable IP67 LED driver that operates from 90-305Vac input with excellent power factor. It is created for many lighting applications including high bay, high mast and roadway, etc. The high efficiency of these drivers and compact metal case enables them to run cooler,significantly improving reliability and extending product life. To ensure trouble-free operation, protection is provided against input surge, output over voltage, short circuit, and over temperature.

Features

  • Compact Metal Case with Excellent Thermal Performance
  • Full Power at Wide Output Current Range (Constant Power)
  • Adjustable Output Current (AOC) with Programmability
  • Isolated 1-5V/1-10V/10V PWM/3-Timer-Modes Dimmable
  • Output Lumen Compensation
  • Input Surge Protection: DM 6 kV , CM 10 kV
  • All-Around Protection: OVP, SCP, OTP
  • IP66 / IP67 and UL Dry / Damp / Wet Location
  • SELV Output
  • TYPE HL, for use in a Class I, Division 2 hazardous
  • (Classified) location
  • UL Class P Type
Ballast Type
Electronic LED Driver
Dimmable Yes
Dimensions Length   8.58''
Width    2.36''
Height   1.44''
Voltage 90-305Vac/127-300Vdc, 50/60Hz
Bulb Type LED
Housing Metal Housing
IP Rating IP67
Output Voltage 18-57 Vdc
Output Current 420-6700mA
Output Power 240W Max
Warranty 5 Years
Weight  2.01 lbs
UL Listed UL, cUL, cRUus, SELV
