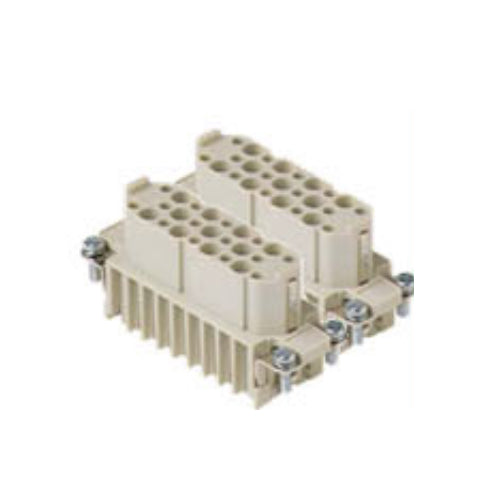

ITC CDF-25(#1-25) + CDF-25Z(#26-50), 10A Crimp Female Insert Only, 25+G Poles, 600V, Crimp Contacts Sold Separately
Regular price
$38.32
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
CDF-25 (Marked #1-25) + CDF-25Z (Marked #26-50), 2 PCS Required Totally, Female Crimp Insert, 10A, 50 Poles plus Ground, 10A CD Series Crimp Contacts Need to be Purchased Separately.
| Stock Code | CDF-25_CDF-25Z |
| Family | 10A Crimp Inserts – CD, CDD, CQ Series |
| Part No | CDF-25 (Marked #1-25) + CDF-25Z (Marked #26-50) |
| Voltage (V) | 600V |
| Amp Rating | 10A |
| Pole | 50 + G |
| Multiple Connector Size | ITC Size 50 = ILME Size 66.40 |
| Sold Separately | 10A CD Series Crimp Contacts Need to be Purchased Separately |
| Mounting | All Crimp Inserts Require Crimp Contacts |
| Type | Female Crimp Insert |
| UL Listed | CSA, cRUus |
