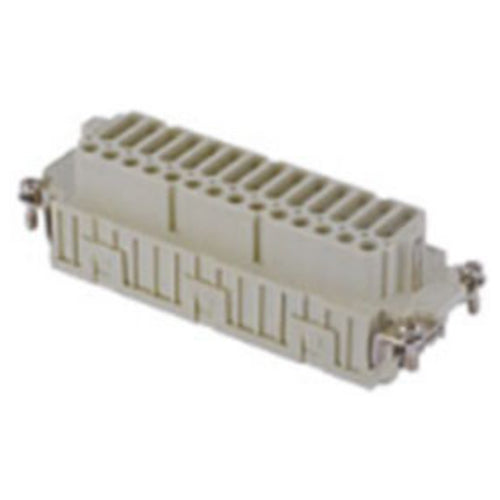

ITC CDSF42N (Marked# 43-84), 10A Female Insert, 42 Poles + Ground, Spring Connection, 400V
Regular price
$64.00
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
CDSF-42N (Marked # 43-84), Female Insert 10A, 42 Poles + Ground, 400V, Spring connection inserts feature a cage clamp spring connection. Opening and closing of the contacts is done with a screwdriver.
| Stock Code | CDSF42N |
| Family | 10A Spring Connection Inserts – HIGH Density - CDS Series |
| Part No | CDSF-42N (Marked # 43-84) |
| Voltage (V) | 400V |
| Amp Rating | 10A |
| Pole | 42 + G |
| Multiple Connector Size | ITC Size 24 = ILME Size 104.287 |
| Mounting | Spring connection inserts feature a cage clamp spring connection |
| Operates | Opening and closing of the contacts is done with a screwdriver |
| Type | Female Insert |
| UL Listed | CSA, cRUus |
