ITC CTF16R, 16A Female Insert, 16 + G Poles, Right Configure, Screw Connection Inserts Mounted in Bulkhead Base, 600V
Regular price
$104.35
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

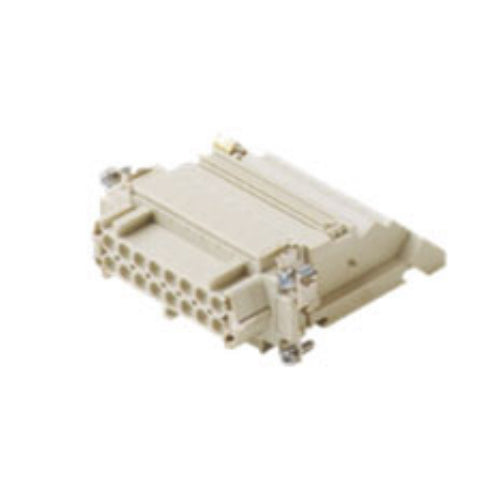

CTF16R, 16A Female Insert, 16 Poles plus Ground, Right Configure. Screw connection inserts mounted in bulkhead bases and wire connections directly throughout the panel, rather than distributing the wires via rail-mount terminal blocks, offers pace and cost savings.
| Stock Code | CTF16R |
| Family | 10A & 16A Screw Connection Terminal Block Inserts – Series CT |
| Part No | CTF-16R |
| Voltage (V) | 600V |
| Amp Rating | 16A |
| Pole | 16 + G |
| Multiple Connector Size | ITC Size 16 = ILME Size 77.27 |
| Mounting | Screw connection inserts mounted in bulkhead bases and wire connections directly throughout the panel, rather than distributing the wires via rail-mount terminal blocks |
| Operates | Right Configure |
| Type | Female Insert |
| UL Listed | CSA, cRUus |
