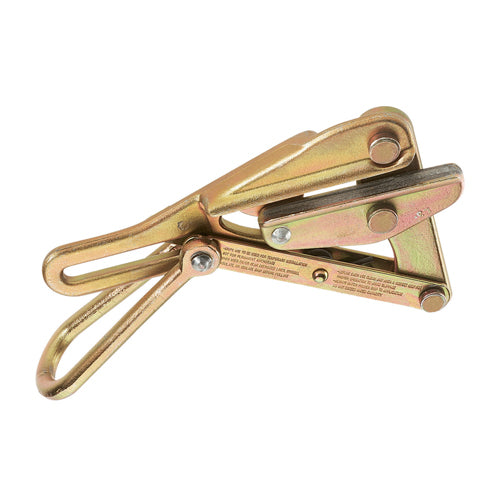

Klein Tools 1684-5, Grip for High Strength Cables 0.55-Inch

In stock
SKU: 1684-5
Regular price $599.70

Use this text to encourage communication or promote sharing on social networks.

You can also add links

Designed for use on aluminum, copper, weatherproof coated wire, PVC covered conductors and messenger and guy strand. The Chicago style grip was designed for cable sizes from 0.218-Inch to 0.55-Inch (5.5 to 13.9 mm). Double V grooves give four-point contact, reducing chance of slipping and providing proper alignment of wire and cable. Manufactured from drop-forged, heat-treated steel for excellent durability. Locking handle keeps jaw open while grip is placed on cable with a hot stick.

Warnings:Before each use, clean jaw area and inspect grip for proper operation to avoid slippage; When used on/near energized lines, ground, insulate, or isolate grip before pulling; Do not exceed rated capacity; Always match proper size and type of grip to application; Grips are to be used for temporary installation, not for permanent anchorage.

Type Chicago Grip
Application Wire Pulling
Material Steel
Overall Dimensions
Length: 13.3'' (33.8 cm)
Height: 2.5'' (6.4 cm)
Width: 7.6'' (19.3 cm)
Cable Type Aircraft, EHS, Messenger, Guy Strand
Cable Diameter 0.218'' to 0.55'' (5.54 to 13.97 mm)
Jaw Type Double V
Teeth Type Smooth
Jaw Length 5'' (12.7 cm)
Maximum Safe Load 8000 lb (3629 kg)
Weight 5.8 lb (2.6 kg)
