Klein Tools 51603, Iron Conduit Bender Full Assembly, 1/2-Inch EMT with Angle Setter™
Regular price
$77.98
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Klein Tools' conduit benders with Patent Pending Angle Setter™ technology allow for quick, accurate repeated bends. The wide foot pedal provides excellent stability and features angled grooves for extra traction. With easily visible bold cast-in benchmark symbols, degree scales and multiplier scales help save time on the job.
- 1/2-Inch assembled Iron Bender includes Klein's unique Angle Setter™ technology for time-saving, repeated accurate bends; Patent pending Angle Setter™ for use on 10-, 22.5-, 30-, and 45-Degree bends (adjusted for conduit spring back)
- Heavy duty cast ductile iron has the durability needed on the job site

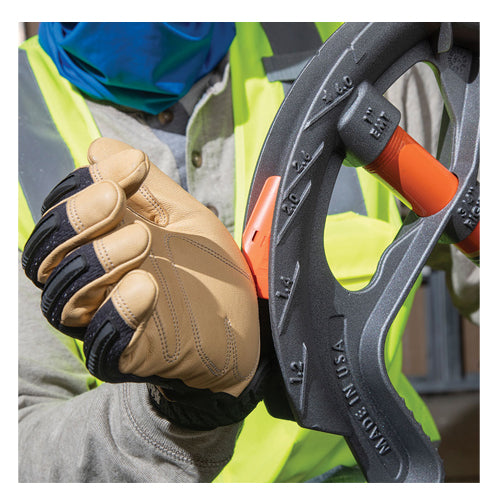

- Bold cast markings and symbols make for fast, easy conduit alignment to make all bend types, including saddle and back-to-back bends

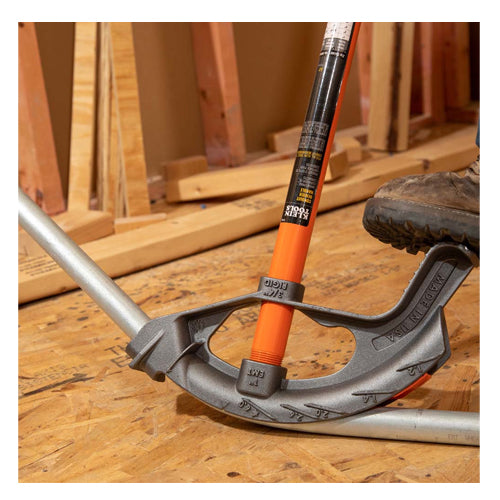

- Wide foot pedal provides excellent stability, leverage, and comfort
- Interior hook surface prevents conduit from rolling or twisting during bends
- Includes markings for 10-Degrees, 22.5-Degrees, 30-Degrees, 45-Degrees, 60-Degrees and corresponding offset multipliers
- Features Klein's 1/2-Inch Angle Setter™ (Cat. No. 51611) that creates a hard stop for quick, accurate, and consistent bends
| Type |
Iron Conduit Bender
|
| Application | Bending Conduit |
| Special Features | Patent Pending Angle Setter™ Technology |
| Overall Dimensions |
Length: 1.7'' (4.4 cm)
Height: 43.1'' (109.5 cm)
Width: 8.1'' (20.6 cm)
|
| Material | Iron |
| Handle Length | 38'' (96.5 cm) |
| Centerline Bend Radius | 4''- Stub-up Height 5'', Centerline Radius 4-5/8'' |
| Thinwall/EMT | 1/2'' (1.3 cm) |
| Conduit Size | 1/2'' |
| Conduit Type | EMT |
| Marking | 10°, 22°, 30°, 45°, 60° |
| Included | 51608 Bender Head; 51427 Handle; 51611 Angle Setter™ |
| Weight | 5.5 lb (2.5 kg) |
