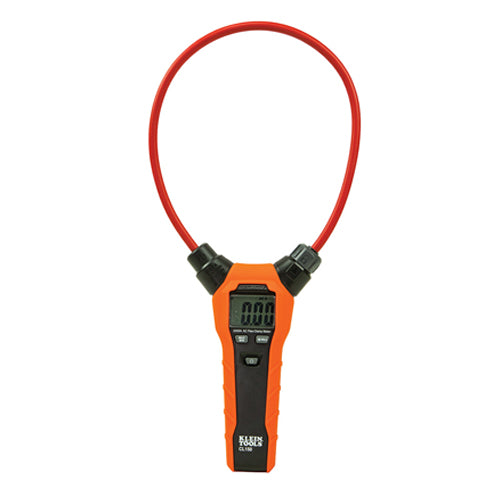

Klein Tools CL150, Clamp Meter, Digital AC Electrical Tester with 18-Inch Flexible Clamp
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

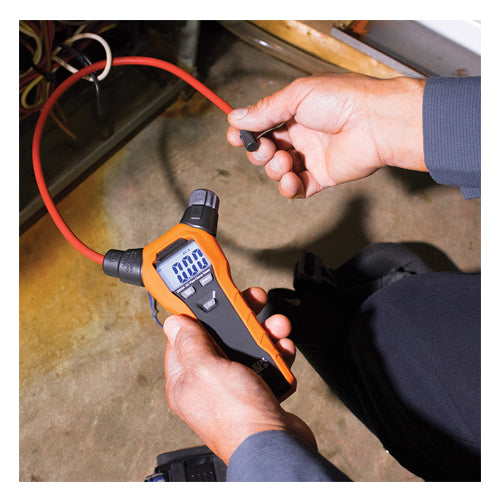

This clamp meter is easy to use, stand-alone, and features an 18-Inch flexible clamp that allows access into panels and hard to reach areas (bundled wires, awkward conductors, and PLC cabinets). True RMS readings with CATIV 600V or CATIII 1000V safety rating. Features backlit LCD display, auto-power off after 15 minutes, Max/Min, Hold, Auto-Ranging and Low Battery icons.
- Clamp meter for measuring AC current
- 18-Inch flexible clamp on meter enables measurements in areas that are difficult to access
- True RMS CAT IV 600V, CAT III 1000V meter
- Backlit LCD display for clear readings with 3000 count
- Durable, with drop protection to 6.6-feet (2 m)
- Auto-power off after 15 minutes of non-usage conserves battery life
- Low battery indicator and easily accessible battery compartment
- Includes Flexible AC Current Clamp Meter, instruction manual, storage pouch, 2 x AAA batteries
Warnings:Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use; Before each use verify meter operation by measuring a known voltage or current; Never use the meter on a circuit with voltages that exceed the category based rating of this meter; Always adhere to local and national safety codes. Use personal protective equipment to prevent shock and arc blast injury where hazardous live conductors are exposed; Usage of this meter in any way other than that specified by the manufacturer can impair safe operation, resulting in severe injury or death
| Type |
Flexible AC Current Clamp
|
| Application |
Measures AC Current
|
| Special Features |
Auto-power Off, Max/Min, Hold, Auto-Ranging and Low Battery Icons
|
| Material |
ABS
|
| Batteries | 2 x AAA |
| Auto-Power Off | Yes |
| Jaw Size | 18'' (45.7 cm) |
| Drop Protection | 6.6' (2 m) |
| Display | Backlit 3000 Count |
| Functions | Auto-range, Hold, Max/Min Value, Auto-power Off |
| Current |
0.01 to 3000A AC
|
| Standard |
CATIV 600V, CATIII 1000V
|
| Included |
Clamp Meter; Carrying Case; Instruction Manual; and 2 x AAA Batteries
|
| Overall Dimensions |
Length: 10.50'' (26.7 cm)
Height: 1.06'' (2.7 cm)
Width: 4.12'' (10.5 cm)
|
| Weight | 5.90 oz (167.0 g) |
