Home » Klein Tools CL220, Digital Clamp Meter, AC Auto-Ranging 400 Amp with Temp
Klein Tools

Klein Tools CL220, Digital Clamp Meter, AC Auto-Ranging 400 Amp with Temp

In stock
SKU: CL220
$99.98

Use this text to encourage communication or promote sharing on social networks.

You can also add links

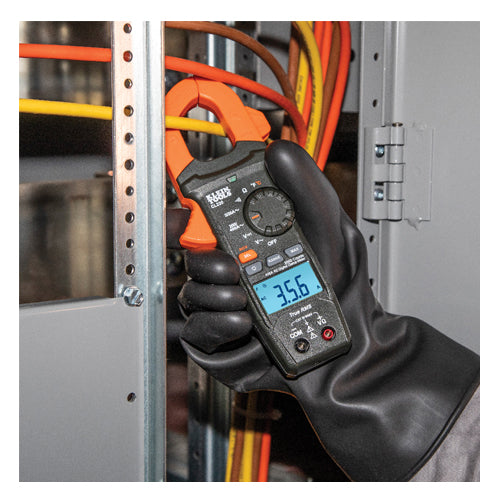

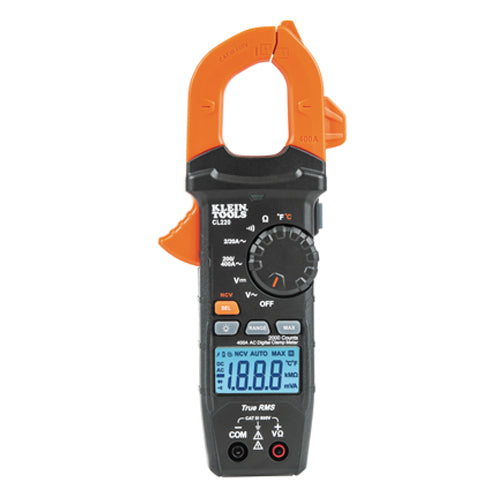

The CL220 measures AC current and NCVT via clamp and AC/DC voltage, resistance, and continuity via test-leads, and temperature with thermocouple. The meter features automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy. Additionally, a backlit LCD makes viewing in low light easy.

  • Clamp Meter measures AC current and NCVT via clamp and AC/DC voltage, resistance, and continuity via test-leads, and temperature with thermocouple
  • Non-contact voltage tester integrated into the clamp jaw
  • Backlit LCD for ease of viewing in low light
  • Automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy
  • Test lead holder on side of clamp and optional magnetic hanger for meter (Cat. Nos. 69445 or 69417) for hands free operation
  • Measures temperature with a K-Type thermocouple probe
  • Auto-Range, Hold, Data Hold, and Max value
  • Auto-power off after 10 minutes to conserve battery life
  • Includes a carrying case, test leads with CAT III/CAT IV safety caps, thermocouple, instructions, and 3 x AAA batteries
  • Low battery indicator and easily accessible battery compartment
  • Built to withstand a 6.6-Foot (2 m) drop
  • CAT III 600V, Class 2, Double insulation safety rating
  • Meets requirements for use in basic and controlled electromagnetic environments like residential, office and light-industrial locations

Warnings：Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use; Do not attempt to measure resistance or continuity on live circuits; Before each use verify meter operation by measuring a known voltage or current; Do not use the meter during electrical storms or in wet weather, and do not use the meter or test leads if they appear to be damaged; Usage of this meter in any way other than that specified by the manufacturer can impair safe operation, resulting in severe injury or death

Type
Auto Ranging TRMS Clamp with Temperature
Application
Measures AC Current and NCVT via Clamp and AC/DC Voltage, Resistance, and Continuity via Test-leads, and Temperature with Thermocouple
Special Features
Automatically Ranging True Root Mean Squared (TRMS) Measurement Technology for Accuracy; NCVT; Added Temperature
Material
ABS/Electronics
Batteries 3 x AAA
Auto-Power Off Yes
Jaw Size 1.6'' (4.1 cm)
Drop Protection 6.6' (2 m)
Display 2000 Count Backlit LCD
Display Size 1.57'' x 0.87'' (4 x 2.2 cm)
Functions TRMS, AC Current, NCVT, AC/DC Voltage, Resistance, Continuity and Temperature
Voltage 600 V AC/DC
Current
400 A AC
Ohms (Resistance)
20 MΩ
AC Voltage
600 V
DC Voltage
600 V
DC Polarity Indicator
Yes
Temperature Range
-40° - 1832°F (-40° - 1000°C)
Standard
CATIII 600V, Class 2, Double Insulation Safety Rating, CE Certified
Included
Digital Clamp Meter; Carrying Case; Instructions; Test Leads; Thermocouple; Batteries
Overall Dimensions
Length: 8.45'' (21.5 cm)
Height: 1.5'' (3.8 cm)
Width: 3.5'' (8.9 cm)
Weight 11 oz (314 g)
