Klein Tools CL390, AC/DC Digital Clamp Meter, Auto-Ranging 400 Amp

In stock
SKU: CL390
$119.98

Use this text to encourage communication or promote sharing on social networks.

You can also add links

Klein Tools CL390 is an automatically ranging true root mean squared (TRMS) digital clamp meter. It measures AC/DC current and NCVT via the clamp, AC/DC voltage, DC microamps, resistance, continuity, frequency, capacitance, and diodes via test leads, and temperature via a thermocouple probe. It features a high visibility, reverse contrast LCD display that optimizes view ability both in dark or bright ambient lighting.

  • Test lead holder on side of clamp and optional magnetic hanger for meter (Cat. Nos. 69445 or 69417) for hands free operation
  • Non-contact voltage tester integrated into the clamp jaw
  • High-visibility reverse contrast LCD display for improved view ability in all ambient lighting conditions
  • Automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy
  • Measures AC/DC current and NCVT via clamp and AC/DC voltage, resistance, frequency, DC microamps, capacitance, duty cycle, diode test, and continuity via test-leads, and temperature with thermocouple
  • Measures temperature with a K-Type thermocouple probe
  • Max/Min, Rel/Zero and Data Hold capability
  • Auto-power off after 10 minutes to conserve battery life

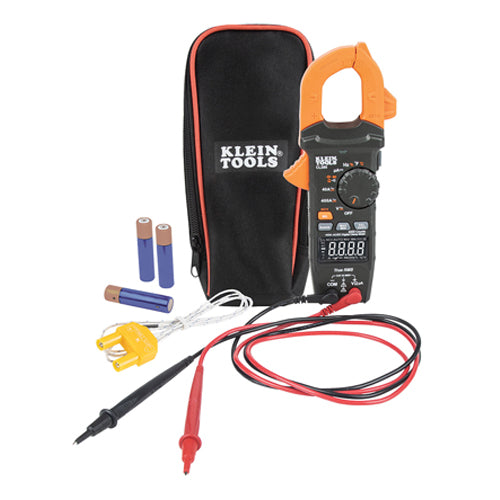

  • Includes a carrying case, test leads with CAT III/CAT IV safety caps, thermocouple, instructions, and 3 x AAA batteries
  • Low battery indicator and easily accessible battery compartment
  • Built to withstand a 6.6-Foot (2 m) drop
  • CAT III 600V, Class 2, Double insulation safety rating
  • Meets requirements for use in basic and controlled electromagnetic environments like residential, office and light-industrial locations

Warnings：Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use; Do not attempt to measure resistance or continuity on live circuits; Before each use verify meter operation by measuring a known voltage or current; Do not use the meter during electrical storms or in wet weather, and do not use the meter or test leads if they appear to be damaged; Usage of this meter in any way other than that specified by the manufacturer can impair safe operation, resulting in severe injury or death

Type
AC/DC Current TRMS Clamp
Application
Measures both AC/DC current and NCVT via the clamp and AC/DC voltage, DC microamp current, resistance, continuity, frequency, duty-cycle, capacitance and tests diodes via the test leads, and temperature with thermocouple
Special Features
Automatically Ranging True Root Mean Squared (TRMS) Measurement Technology for Accuracy; AC/DC Current Measurement; High Visibility Reverse Contrast LCD; NCVT
Material
ABS/Electronics
Batteries 3 x AAA
Auto-Power Off Yes
Jaw Size 1.6'' (4.1 cm)
Drop Protection 6.6' (2 m)
Display 4000 Count Reverse Contrast LCD
Display Size 1.57'' x 0.87'' (4 x 2.2 cm)
Functions TRMS, AC/DC Current, NCVT, AC/DC Voltage, Resistance, DC microamp, Frequency, Capacitance, Continuity, Duty Cycle, Diode Test, and Temperature
Voltage 600 V AC/DC
Frequency 10 Hz to 60 kHz for 8 V to 220 V AC RMS
Current
400 A AC/DC
Capacitance
4000 µF
Ohms (Resistance)
40 MΩ
DC Polarity Indicator Yes
DC Micro-Amp 200 µA
Temperature Range -40° - 1832°F (-40° - 1000°C)
Standard CATIII 600V, Class 2, Double Insulation Safety Rating, CE Certified
Included Clamp Meter; Carrying Case; Instructions; Test Leads; Thermocouple; Batteries
Overall Dimensions
Length: 8.45'' (21.5 cm)
Height: 1.5'' (3.8 cm)
Width: 3.5'' (8.9 cm)
Weight 11 oz (314 g)
