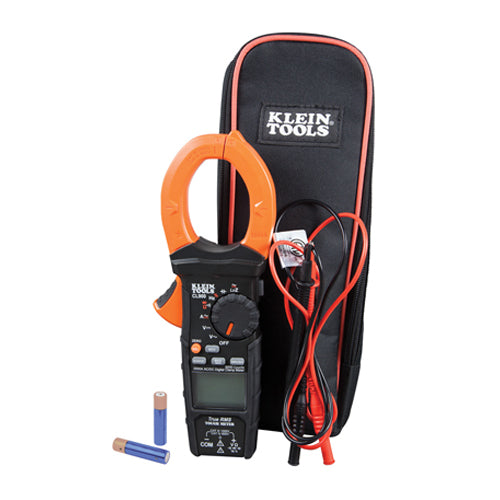

Klein Tools CL900, Digital Clamp Meter, AC Auto-Range TRMS, Low Impedance (LoZ), 2000 Amp

In stock
SKU: CL900
$219.98

Use this text to encourage communication or promote sharing on social networks.

You can also add links

The CL900 Electrical Tester is an auto-ranging, true root mean square (TRMS) digital clamp meter. It measures AC/DC current via the clamp and measures AC/DC voltage, resistance, continuity, frequency, duty-cycle, capacitance, and tests diodes via test-leads. It features a Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages, and has a dedicated mode for capturing Inrush Current.

  • Digital Clamp Meter measures 2000A AC/DC, 1000V AC/DC, 60 Milliohm
  • Rugged Klein TOUGH METER industrial design stands up to jobsite demands; built to withstand a 6.6-Foot (2m) drop
  • Automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy
  • CAT IV 600V, CAT III 1000V, Class 2, double insulation safety rating
  • Backlit display for clear visibility in environments with low ambient lighting
  • Dedicated mode for capturing Inrush Current
  • Non-contact voltage tester integrated into the clamp
  • Low impedance (LoZ) mode for identifying and eliminating ghost or stray voltages
  • Audible continuity, capacitance, diode test, frequency and duty cycle, min/max feature, data hold capability
  • Test leads measure AC/DC voltage, resistance, continuity, frequency, duty-cycle, capacitance and diodes
  • Clamp measures AC and DC current
  • Powers off automatically after 30 minutes of non-use to conserve battery life
  • Low battery indicator and easily accessible battery compartment
  • Includes carrying case (instruction manual), straight input test leads, and 2 x AAA batteries
  • Can be used with Magnetic Hanger Cat. No. 69417 (sold separately)

Warnings：Read, understand, and follow all instructions, cautions and warnings attached to and/or packed with all test and measurement devices before each use; Before each use, verify meter operation by measuring a known voltage or current; Never use the meter on a circuit with voltages that exceed the category based rating of this meter; Always adhere to local and national safety codes. Use personal protective equipment to prevent shock and arc blast injury where hazardous live conductors are exposed

Type
Clamp Meter
Application
Measures Current to 2000A AC/DC
Special Features
Low Impedance (LoZ) Mode; Dedicated Mode for Capturing Inrush Current; Integrated Non-Contact Voltage Tester
Material
Plastic/Electronics
Batteries
2 x AAA
Auto-Power Off
Yes
Jaw Size 2'' (5 cm)
Drop Protection 6.6' (2 m)
Display
6000 Count LCD
Display Size 1.57'' x 1.14'' (4 x 2.9 cm)
Functions Audible Continuity, Capacitance, Diode Test, Frequency & Duty Cycle, Min/Max feature, Data Hold capability, Inrush Current, Low Impedance
Voltage 1000V AC/DC
Frequency 500kHz
Current
2000A AC/DC
Capacitance
6000µF
Ohms (Resistance)
60MO
DC Polarity Indicator Yes
DC Micro-Amp No
Ingress Protection IP40
Standard CAT IV 600V, CAT III 1000V
Included Carrying Case, Instruction Manual, Straight Input Test Leads, Batteries
Overall Dimensions
Length: 10.39'' (26.4 cm)
Height: 1.70'' (4.3 cm)
Width: 3.90'' (9.9 cm)
Weight 17.6 oz (499 g)
