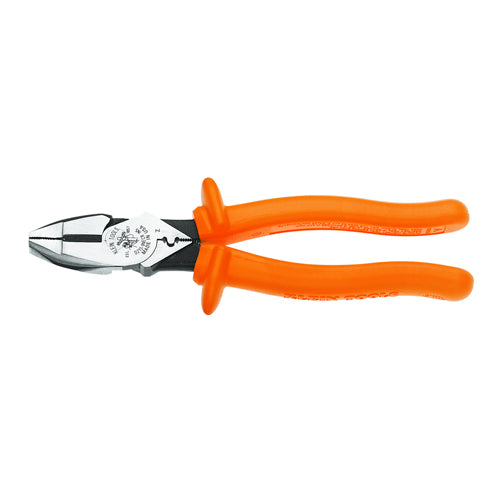

Klein Tools D2139NECRINS, Cutting Crimping Pliers, Insulated, 9-Inch
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
These Klein Tools 9-Inch Insulated Side-Cutting Crimping Pliers offer protection against electric shock up to 1000 volts. The pliers are individually tested to exceed the IEC 60900 and ASTM F1505 standards, for insulated tools, and clearly marked with the official 1000-volt rating symbol. The pliers offer maximum strength with their forged-steel construction and a crimping die helps provide increased leverage.
- Pliers are individually tested to exceed the IEC 60900 and ASTM F1505 standards, for insulated tools, and clearly marked with the official 1000-volt rating symbol
- Two layers of insulation provide protection against electric shock while the integral guards help prevent hand contact with conductive parts
- Thick, exceptionally tough, high-dielectric white inner coating is bonded to the tool
- A flame retardant, impact-resistant, bright orange outer coating
- Made in USA
- High-leverage design provides 46-Percent greater cutting and gripping power than other plier designs
- Precision machined knives cut cleanly and crisply even on fine stranded wire, mule tape and pull line
- Integral guards help prevent hand contact with conductive parts
Warnings:Only use tools that are marked with the official international 1000-volt rating symbol shown above, if there is any chance that the tools will make contact with an energized source; Whenever possible, always de-energize lines and equipment prior to working on or around them. Klein insulated tools are designed only to reduce the chance of injury where the tool may make contact with an energized source; Do NOT touch uninsulated portion of the tool or any conductive object when either might contact an energized source; Wear approved eye protection. Always inspect your tools before use. Do not use if orange coating cracks, breaks or becomes damaged. Destroy tool if white layer shows through orange layer; Always inspect your tools before use. Destroy tool if insulation becomes damaged in any way; Because moisture, films, or other surface contaminants are conductive, Klein insulated tools must be kept clean, dry, and free of any surface contaminants.
| Type | High-Leverage Connector Crimping Pliers |
| Application | ACSR, Screws, Nails and Most Hardened Wires, Crimps Non-insulated Connectors, Lugs, and Terminals |
| Special Features | Integral Guards Help Prevent Hand Contact With Conductive Parts |
| Overall Dimensions |
Length: 9.68'' (24.6 cm)
Width: 2.49'' (6.3 cm)
|
| Material |
Induction Hardened Steel
|
| Nose Type |
New England
|
| Jaw Dimensions |
Length: 1.91'' (4.9 cm)
Width: 1.25'' (3.2 cm)
Thickness: 0.62'' (1.6 cm)
|
| Jaw Capacity | 1.375'' (3.5 cm) |
| Cutting Knives | 1 |
| Knife Length | 0.787'' (2 cm) |
| Cut Style | Side-Cutting |
| Screw Shearing | No |
| Joint Type | Hot-Riveted |
| Handle Color | Orange |
| Handle Finish |
2-Layer Insulation
|
| Handle Length | 5.73'' (14.6 cm) |
| Insulated | Yes |
| Tether Capable | No |
| Standards | IEC 60900 and ASTM F1505 |
| Weight | 1.3 lb (0.6 kg) |
