Klein Tools ET180, Digital Differential Manometer
Regular price
$149.98
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

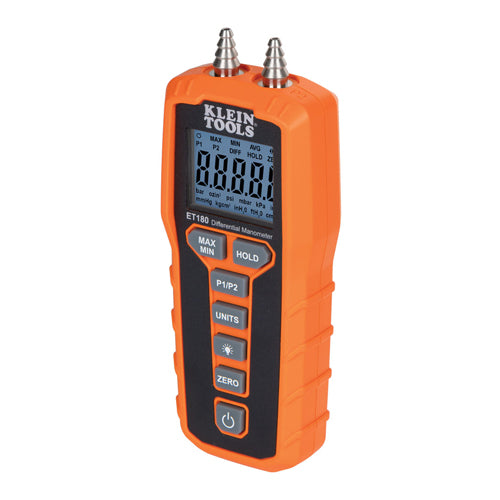

The ET180 Digital Differential Manometer from Klein Tools measures air and gas pressure for port 1, port 2, and measures the differential between the ports. Easily toggle between units: inH2O, bar, oz/in2, psi, mbar, kPa, inHg, mmHg, kg/cm2, ftH20, and cmH2O. Large, backlit LCD shows minimum, maximum and average values. Magnet on back for hands-free operation.
- Digital Manometer measures air and gas pressure for ports P1, P2, and differential
- Range of +/- 60 inH2O and full scale accuracy of +/-1.5-Percent
- Strong magnet on back for hands-free operation
- Units measured: inH2O, bar, oz/in2, psi, mbar, kPa, inHg, mmHg, kg/cm2, ftH20, and cmH2O
- Calculates minimum, maximum and average values
- Large LCD is backlit for easy viewing in low light conditions
- Auto-power off feature conserves battery life
- Hold button locks current reading on the display
- Silicon tubing, 3 x AAA batteries, and storage pouch included
Warnings：Read, understand, and follow all instructions to ensure safe operation; The meter is NOT insulated. Avoid contact with areas where energized conductive elements may be present. Shut off power to the area before starting measurements; Always wear approved eye protection
| Type | Differential Pressure |
| Application |
Measure Static and Differential Pressure
|
| Special Features | Magnet on Back of Housing |
| Modes | P1, P2, Differential |
| Pressure Measurement Range | +/- 60 inH2O |
| Maximum Pressure (psi) | 2.16 PSI |
| Maximum Pressure Reading (wc) | 60.0 |
| Minimum Pressure Reading (wc) | -60.0 |
| Accuracy | +/-1.5% Full Scale |
| Measurement Units | bar, oz/in2, psi, mbar, kPa, inHg, mmHg, kg/cm2, inH2O, ftH20, and cmH2O |
| Number of Ports | 2 |
| Connector Type | Tapered Stainless Steel Ports from 1/8'' to 5/15'' |
| Temperature Range | 32° to 122° F (0° to 50° C) |
| Display | Backlit LCD |
| Batteries | 3 x AAA |
| Low Battery Indicator | Yes |
| Auto-Power Off | Yes |
| Material | ABS, Stainless Steel |
| Overall Dimensions |
Length: 2.47'' (6.3 cm)
Height: 6.19'' (15.7 cm)
Width: 1.38'' (3.5 cm)
|
| Included | Manometer; 6.56' (2 m) x 1/8'' (3 mm) Inside Diameter Silicon Tubing; 3 x AAA Batteries; Pouch; Instruction Manual |
| Standard | Conforms to EN 61326-1:2013; EN61326-2-3:2013; CE and UKCA Certified |
| Weight | 7.2 oz (202 g) |
