Klein Tools ET450, Advanced Electrical Circuit Breaker Finder and Wire Tracer Kit and Case

In stock
SKU: ET450
Regular price $399.98

Use this text to encourage communication or promote sharing on social networks.

You can also add links

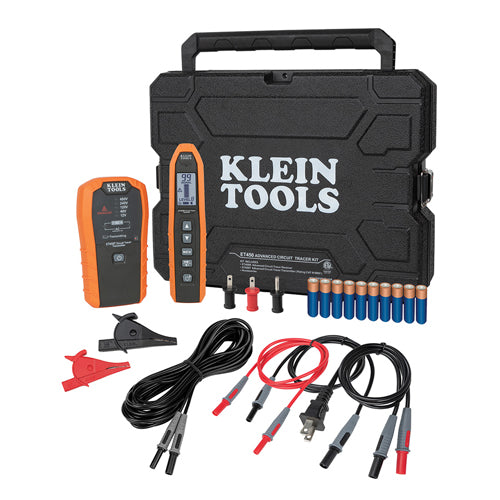

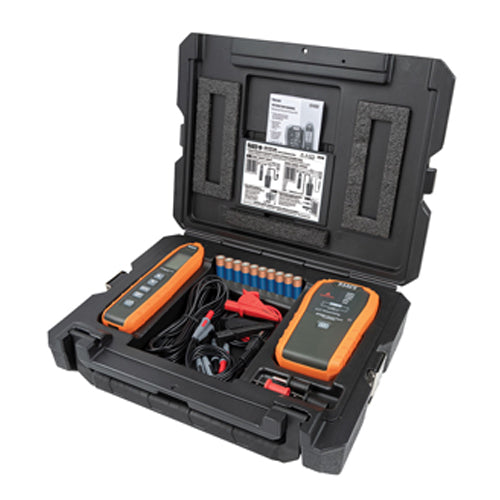

The Klein Tools ET450 Advanced Circuit Tracer Kit is a professional tracer for energized and non-energized breakers, fuses, and wires. When the Transmitter is connected to a circuit, the Receiver's sensitivity can easily be adjusted to detect the transmitted signal on breakers, fuses, and wire through drywall, cement block, and underground. Kit comes with transmitter, receiver, blade and ground prongs, alligator clips, 3-Foot and 20-Foot lead adapters, AC plug leads, instructions, all required batteries, and a hard carrying case with handle for convenient transportation and storage.

  • The Advanced Circuit Tracer Kit provides reliable tracing of energized or non-energized breakers, fuses, and wires
  • Easily adjust receiver sensitivity level to detect the transmitted signal through drywall, cement block, and underground
  • Versatile applications include tracing wires, conduit or pipes, or a single wire in a bundle
  • Audible beep and visual indicators on receiver denotes signal strength
  • Receiver features a flashlight for illumination in low-light areas and NCV function to test if wires are energized
  • Transmitter has AC/DC external voltage indicators of 12V, 48V, 120V, 240V, and 480V
  • Kit comes with transmitter, receiver, blade and ground prongs, alligator clips, 3-Foot and 20-Foot lead adapters, AC plug leads, instructions, all required batteries, and a hard carrying case

Warnings:NEVER use the tester on a circuit with voltages that exceed the category-based rating of this tester; Inspect the meter and test leads before use. DO NOT use if they appear damaged; DO NOT use testers during electrical storms or in wet weather;Turn off testers and disconnect test leads before attempting to replace batteries or fuses; Use personal protective equipment to prevent shock and arc blast injury where hazardous live connectors are exposed.

Type
Circuit Tracer
Application
Trace Energized and Non-Energized Breakers, Fuses, and Wires
Special Features
Flashlight and NCV Function on Receiver; Accessories, and Hard Case
Overall Length
Receiver: 7.05'' (17.9 cm); Transmitter: 8.72'' (22.2 cm)
Overall Height
Receiver: 1.84'' (4.5 cm); Transmitter: 1.51'' (3.9 cm)
Overall Width
Receiver: 3.90'' (9.9 cm); Transmitter: 2.07'' (5.3 cm)
Material
ABS and Electronic Components
Batteries
Transmitter: 6 × 1.5V AA Alkaline; Receiver: 4 × 1.5V AA Alkaline
Battery Life Up to 24 hr
Drop Protection 6' (2 m)
Display Receiver: LCD with Backlight
Control Type Transmitter and Receiver
Voltage External Indicators for 12V, 48V, 120V, 240V, and 480V
Frequency Transmitter: AC 45Hz to 65Hz; Receiver: 33kHz
Ingress Protection
IP42
Pollution Degree 2
Tests Continuity / Integral Lead Storage No
Interchangeable Leads Yes
Lead Length 3' (1 m) and 20' (6.1 m)
Standard CAT III 600V
Case Included Yes
Included TesTransmitter, Receiver, Blade and Ground Prongs, Alligator Clips, 3' and 20' Lead Adapters, AC Plug Leads, Instructions, All Required Batteries, and Hard Carrying Caseter
Weight Transmitter: 16.5 oz (470 g); Receiver: 11 oz (312 g)
