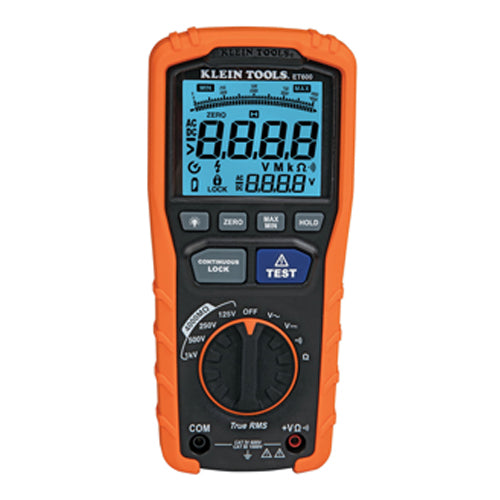

Klein Tools ET600, Insulation Resistance Tester
Regular price
$229.98
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The ET600 is a multi-function Megohmmeter capable of producing 125V, 250V, 500V, and 1000V test voltages for insulation resistance measurements up to 4000MΩ. Also tests AC/DC voltages up to 1000V with automatic ranging True RMS technology. Convenient lock function and built-in stand for hands free operation. Dual-function backlit display monitors process.
- Voltage Tester tests insulation resistance up to 4000MΩ at 125V, 250V, 500V, and 1000V DC
- Megohmmeter with test and lock buttons for simple insulation testing
- Warning alarm and high voltage icon for detection of voltage
- Measures up to 1000V AC/DC, resistance, and continuity
- Automatic ranging True Root Mean Square (TRMS) technology for increased accuracy
- Backlit display with bar graph, Auto-power off, High Voltage, Max/Min, and Hold icons
- Low battery indicator with easily replaceable battery and fuse
- Built-in stand and optional magnetic hanger for hands free operation
- Test verification of conformity to EN61557-1,-2,-4
- CAT IV 600V and CAT III 1000V safety rating
- Includes Right Angle Test Leads and Heavy-Duty Alligator Clip Test Leads
| Type |
Insulation Resistance Tester
|
| Application |
Installation, Troubleshooting, and Preventive Maintenance of Electrical Wiring and Electrical Equipment, Measures 1000V AC/DC, Resistance, and Continuity
|
| Special Features |
Lock Button for Insulation Resistance Testing
|
| Overall Length |
7.93'' (20.2 cm)
|
| Overall Height |
2.32'' (5.9 cm)
|
| Overall Width |
3.59'' (9.1 cm)
|
| Material | ABS, Polycarbonate, Electrical Components |
| Batteries | 6 x AA |
| Display |
4000 Count LCD
|
| Color |
Orange/Black
|
| Functions | Insulation Resistance, Voltage AC/DC, Resistance, and Continuity |
| Voltage | 125V, 250V, 500V, and 1000V DC; 1000V AC/DC |
| Ohms (Resistance) | 400kΩ |
| Standard | CAT IV 600V/CAT III 1000V, EN61557-1, EN61557-2, EN61557-4 |
| Included |
Tester; CAT III/CAT IV Safety Rated Test Leads; Heavy-duty Alligator Clip Test Leads; Batteries; Carrying Case; Instruction Manual
|
| Weight | 1.4 lb (0.6 kg) |
